make_tri_mesh

make_tri_mesh(points: NumpyArray[float], faces: NumpyArray[int]) → PolyData

Construct a pyvista.PolyData mesh using points and faces arrays.

Construct a mesh from an Nx3 array of points and an Mx3 array of triangle indices, resulting in a mesh with N vertices and M triangles. This function does not require the standard VTK “padding” column and simplifies mesh creation.

Parameters:

pointsnp.ndarray

Array of points with shape (N, 3) storing the vertices of the triangle mesh.

facesnp.ndarray

Array of indices with shape (M, 3) containing the triangle indices.

Returns:

pyvista.PolyData

PolyData instance containing the triangle mesh.

Examples

This example discretizes the unit square into a triangle mesh with nine vertices and eight faces.

>>> import numpy as np
>>> import pyvista as pv
>>> points = np.array(
...     [
...         [0, 0, 0],
...         [0.5, 0, 0],
...         [1, 0, 0],
...         [0, 0.5, 0],
...         [0.5, 0.5, 0],
...         [1, 0.5, 0],
...         [0, 1, 0],
...         [0.5, 1, 0],
...         [1, 1, 0],
...     ]
... )
>>> faces = np.array(
...     [
...         [0, 1, 4],
...         [4, 7, 6],
...         [2, 5, 4],
...         [4, 5, 8],
...         [0, 4, 3],
...         [3, 4, 6],
...         [1, 2, 4],
...         [4, 8, 7],
...     ]
... )
>>> tri_mesh = pv.make_tri_mesh(points, faces)

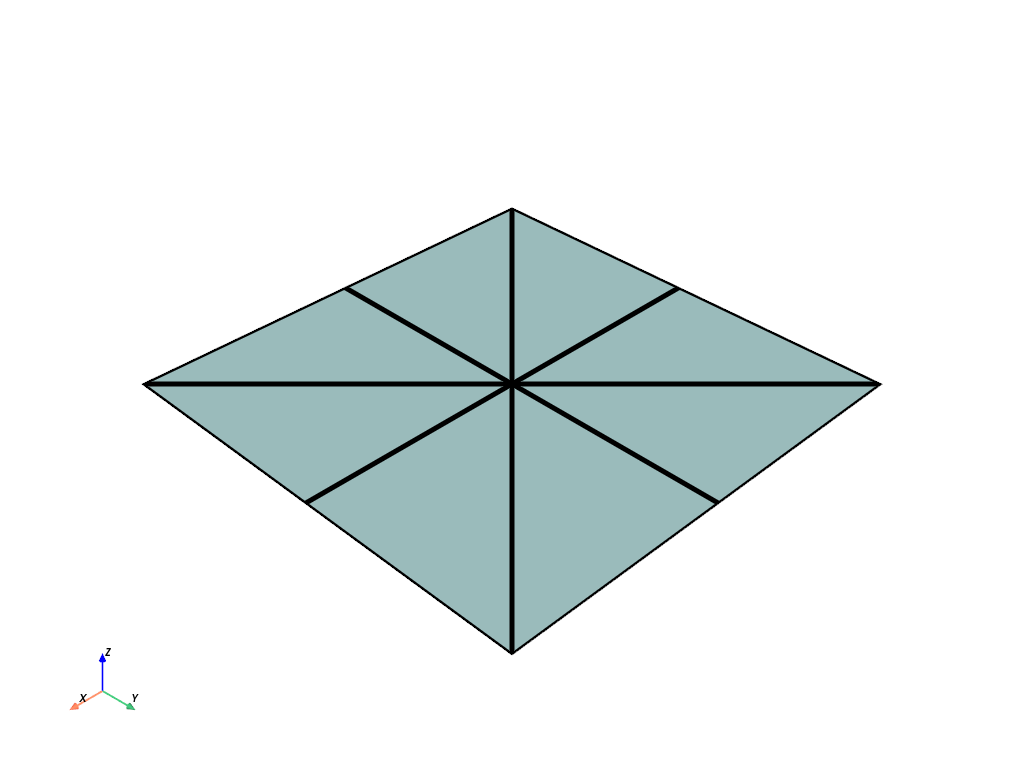

>>> tri_mesh.plot(show_edges=True, line_width=5)
