SphereSource

class SphereSource(*args, **kwargs)

Sphere source algorithm class.

Added in version 0.44.0.

Parameters:

radiusfloat, default: 0.5

Sphere radius.

centersequence[float], default: (0.0, 0.0, 0.0)

Center coordinate vector in [x, y, z].

theta_resolutionint, default: 30

Set the number of points in the azimuthal direction (ranging from start_theta to end_theta).

phi_resolutionint, default: 30

Set the number of points in the polar direction (ranging from start_phi to end_phi).

start_thetafloat, default: 0.0

Starting azimuthal angle in degrees [0, 360].

end_thetafloat, default: 360.0

Ending azimuthal angle in degrees [0, 360].

start_phifloat, default: 0.0

Starting polar angle in degrees [0, 180].

end_phifloat, default: 180.0

Ending polar angle in degrees [0, 180].

tessellation‘triangle’ | ‘phi_theta’, default: ‘triangle’

Configure the tessellation of the sphere.

• 'triangle': tessellate with all TRIANGLE cells.

• 'phi_theta': tessellate with QUAD cells aligned to the phi and theta directions. Cells at the poles are TRIANGLE cells.

Added in version 0.49.

texture_coordinatesbool, default: False

If True, include a 'Texture Coordinates' array as the active texture coordinates. Enabling this option will also generate a topological seam at theta=0 by duplicating vertices, and the sphere will not be a closed surface.

This option is only supported for complete spheres.

Added in version 0.49.

See also

pyvista.Icosphere

Sphere created from projection of icosahedron.

pyvista.SolidSphere

Sphere that fills 3D space.

Examples

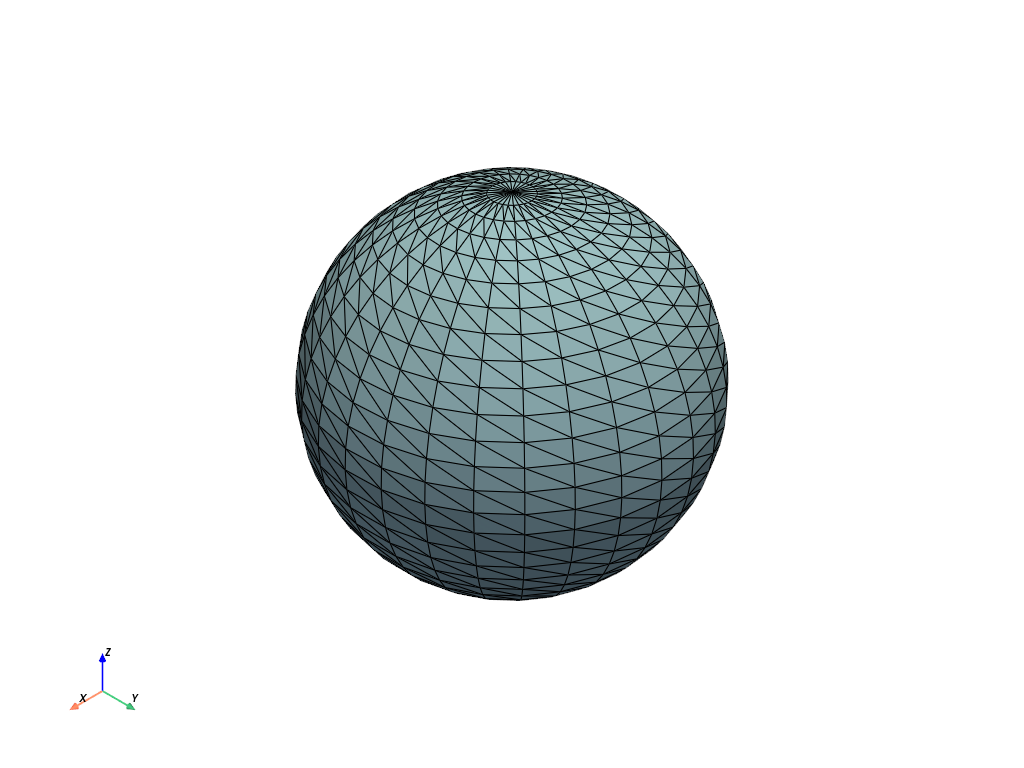

Create a sphere using default parameters.

>>> import pyvista as pv
>>> sphere = pv.SphereSource()
>>> sphere.output.plot(show_edges=True)

Static Scene

Interactive Scene

Create a quarter sphere by setting end_theta.

>>> sphere = pv.SphereSource(end_theta=90)
>>> out = sphere.output.plot(show_edges=True)

Static Scene

Interactive Scene

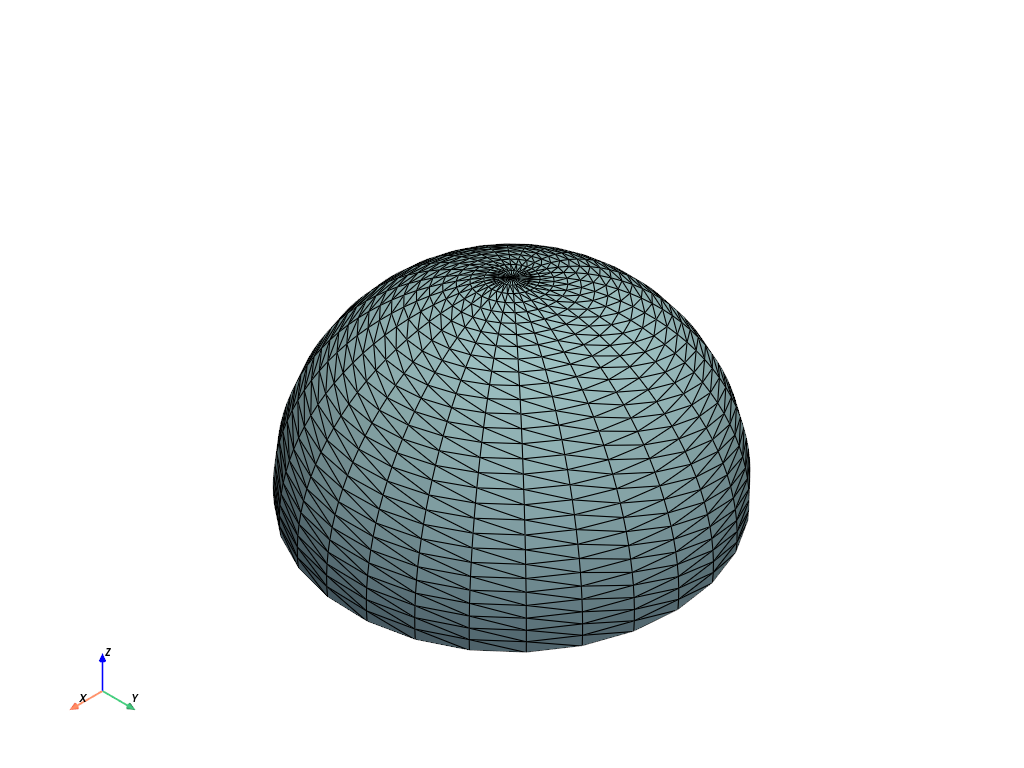

Create a hemisphere by setting end_phi.

>>> sphere = pv.SphereSource(end_phi=90)
>>> out = sphere.output.plot(show_edges=True)

Static Scene

Interactive Scene

Methods

Attributes

SphereSource.center	Get the center in [x, y, z].
SphereSource.end_phi	Get ending polar angle in degrees [0, 360].
SphereSource.end_theta	Get ending azimuthal angle in degrees [0, 360].
SphereSource.output	Get the output data object for a port on this algorithm.
SphereSource.phi_resolution	Get the number of points in the polar direction.
SphereSource.radius	Get sphere radius.
SphereSource.start_phi	Get starting polar angle in degrees [0, 360].
SphereSource.start_theta	Get starting azimuthal angle in degrees [0, 360].
SphereSource.tessellation	Configure the tessellation of the sphere.
SphereSource.texture_coordinates	Enable or disable the generation of texture coordinates.
SphereSource.theta_resolution	Get the number of points in the azimuthal direction.
