Pyramid

Pyramid() → UnstructuredGrid

Create a pyvista.UnstructuredGrid containing a single pyramid.

This cell corresponds to the pyvista.CellType.PYRAMID cell type.

Returns:

pyvista.UnstructuredGrid

UnstructuredGrid containing a single pyramid.

Examples

Download Python source code | Download Jupyter notebook

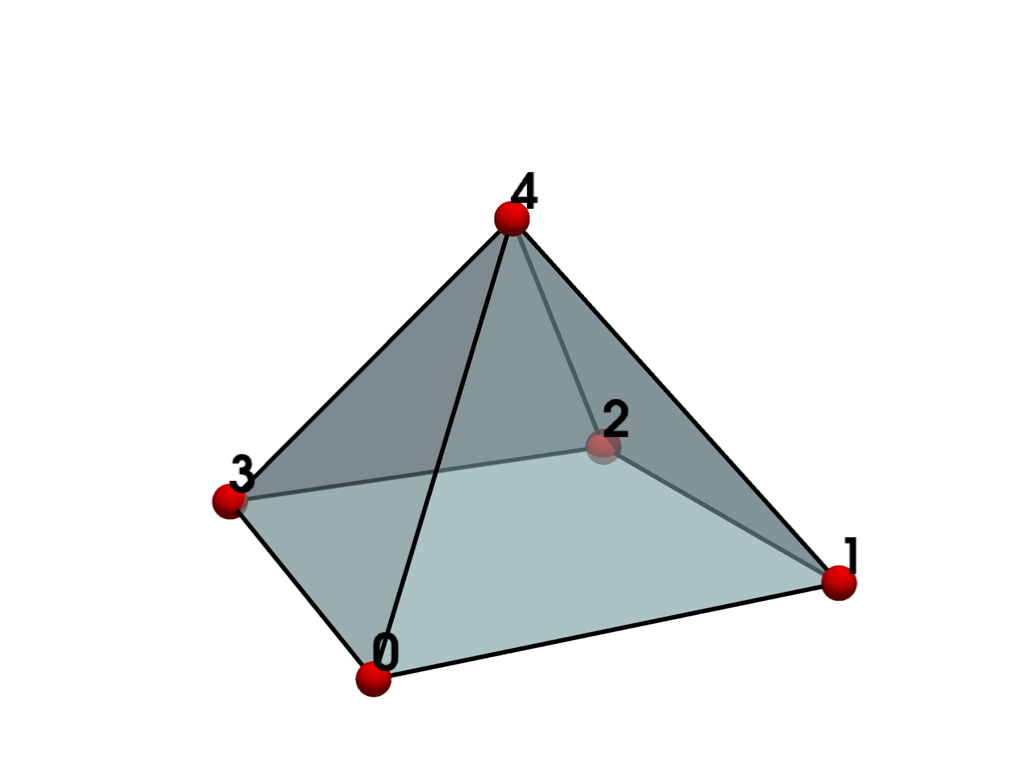

Create and plot a single pyramid.

>>> from pyvista import examples
>>> grid = examples.cells.Pyramid()
>>> examples.plot_cell(grid)

Static Scene

Interactive Scene

List the grid’s cells.

>>> grid.cells
array([5, 0, 1, 2, 3, 4])

List the grid’s points.

>>> grid.points
pyvista_ndarray([[ 0.5       ,  0.5       ,  0.        ],
                 [-0.5       ,  0.5       ,  0.        ],
                 [-0.5       , -0.5       ,  0.        ],
                 [ 0.5       , -0.5       ,  0.        ],
                 [ 0.        ,  0.        ,  0.70710678]])

>>> grid.celltypes  # same as pyvista.CellType.PYRAMID
array([14], dtype=uint8)
