pyvista.examples.cells.generate_cell_blocks

generate_cell_blocks(

cell_types: int | Sequence[int],

generator: _GeneratorOptions = 'examples',

*,

block_dimensions: VectorLike[int] | None = None,

shrink_factor: float | None = None,

fill_mode: _FillModeOptions = 'exact',

unsupported_action: _UnsupportedActionOptions = 'error',

) → MultiBlock

Generate a MultiBlock mesh comprised of one or more cell types.

A separate UnstructuredGrid block is generated for each input cell type. Cell types may be repeated or mixed in any order. By default, all blocks are stacked sequentially along the x-axis, though block_dimensions may be specified to control this.

Added in version 0.48.

Parameters:

cell_typesint | sequence[int]

Cell type(s) to generate. By default, only CellType values are supported. Invalid cell type values may also be specified; these can be ignored by using the unsupported_action keyword.

generator‘examples’ | ‘source’ | ‘parametric’, default: ‘examples’

Method for generating cell type blocks.

• 'examples': generate blocks using examples from pyvista.examples.cells. This is a mixed collected of manually-defined linear cells, quadratic and cubic cells generated with 'paramatric', and higher order cells generated with 'source'.

• 'parametric': generate blocks using vtkCell.GetParametricCoords.

• 'source': generate blocks using vtkCellTypeSource.

Note

• 'examples' supports all concrete cell types, but the other generators only support a subset.

• Both 'examples' and 'parametric' only generate a single cell per block, whereas 'source' may generate multiple cells of the same type in order to fill a unit block (e.g. two triangles to fill a square, two wedges to fill a cube).

block_dimensionsVectorLike[int], optional

Output dimensions of blocks to generate. By default, all blocks are stacked sequentially along the x-axis. The dimensions should be compatible with the number of input cell types. Use fill_mode to handle cases where the dimensions are not compatible.

shrink_factorfloat, optional

Shrink each block by applying a scaling factor. By default, no shrink factor is applied, and each generated cell type is scaled to fit inside a unit cube.

fill_mode‘exact’ | ‘cycle’ | ‘stop’, default: ‘exact’

Select how to handle mismatched dimensions.

• 'exact': the number of cell types must match the specified block dimensions exactly.

• 'cycle': cycle through and duplicate cell types as required to ensure the specified block dimensions are completely filled.

• 'stop': stop iterating when all specified cell types have been generated.

unsupported_action‘skip’ | ‘squeeze’ | ‘warn’ | ‘error’, default: ‘error’

Select how to handle unsupported cell types.

• 'skip': Skip generating a block for unsupported cell types. A None block is included instead. This will create a gap in the output.

• 'squeeze': Similar to 'skip', but no None block is appended. Since no block is included, there are no gaps and the output appears to be “squeezed” together.

• 'warn': Similar to skip, but a warning is emitted when an unsupported type is encountered.

• 'error': Raise a ValueError when an unsupported cell type is encountered.

Examples

Generate a single TRIANGLE cell.

>>> import pyvista as pv
>>> from pyvista.examples import cells, generate_cell_blocks, plot_cell

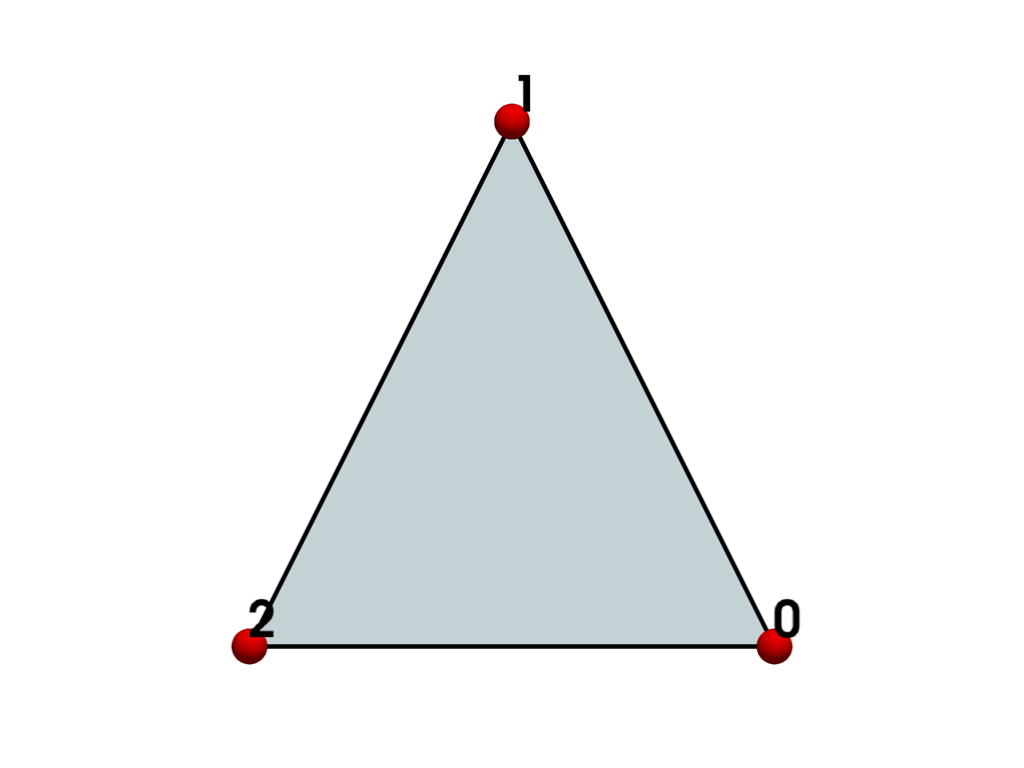

>>> triangle = generate_cell_blocks(pv.CellType.TRIANGLE)

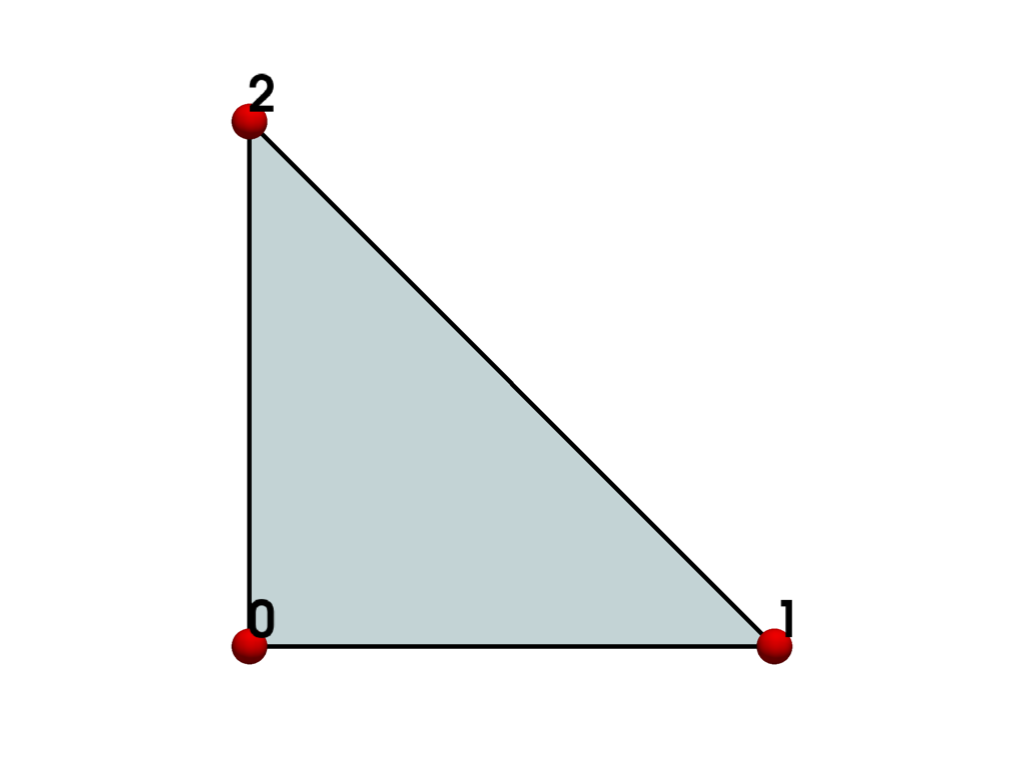

>>> plot_cell(triangle, cpos='xy')

Static Scene

Interactive Scene

This is similar to the Triangle() grid, except it’s a MultiBlock and its bounds are normalized to fit inside a 1x1x1 grid.

>>> triangle
MultiBlock (...)
  N Blocks:   1
  X Bounds:   0.000e+00, 1.000e+00
  Y Bounds:   -5.551e-17, 1.000e+00
  Z Bounds:   0.000e+00, 0.000e+00

Compare to the un-normalized bounds.

>>> cells.Triangle()
UnstructuredGrid (...)
  N Cells:    1
  N Points:   3
  X Bounds:   -5.000e-01, 5.000e-01
  Y Bounds:   -2.887e-01, 5.774e-01
  Z Bounds:   0.000e+00, 0.000e+00
  N Arrays:   0

Use the 'parametric' generator instead.

>>> triangle = generate_cell_blocks(pv.CellType.TRIANGLE, 'parametric')
>>> plot_cell(triangle, cpos='xy')

Static Scene

Interactive Scene

Use the 'source' generator instead.

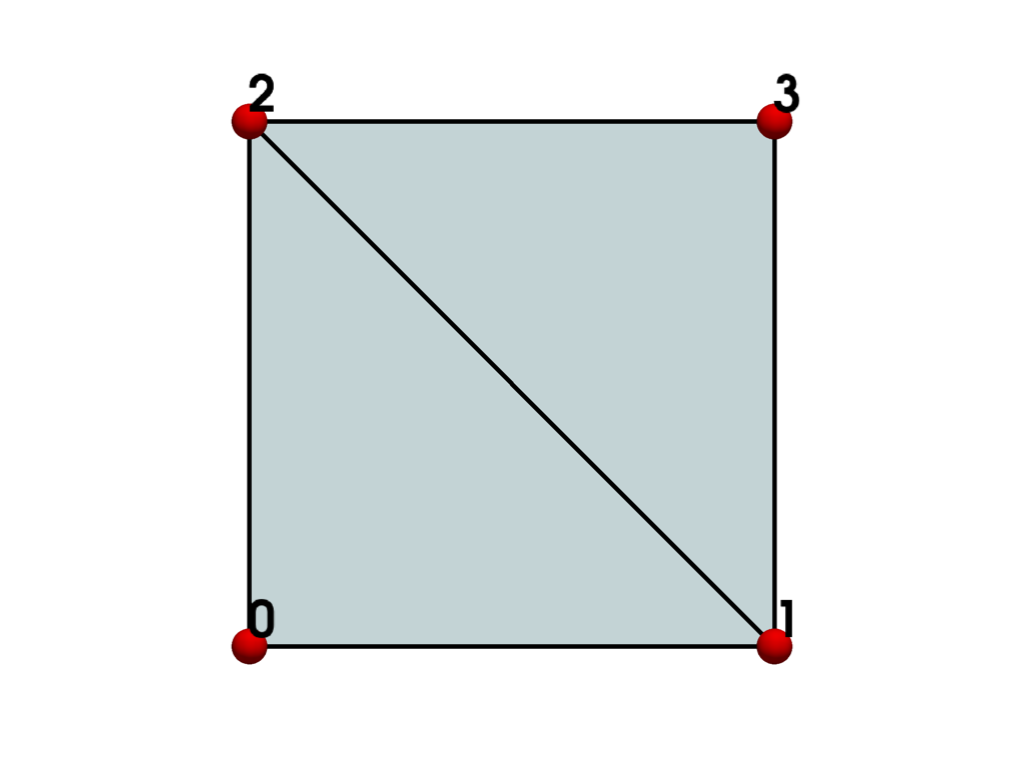

>>> triangle = generate_cell_blocks(pv.CellType.TRIANGLE, 'source')

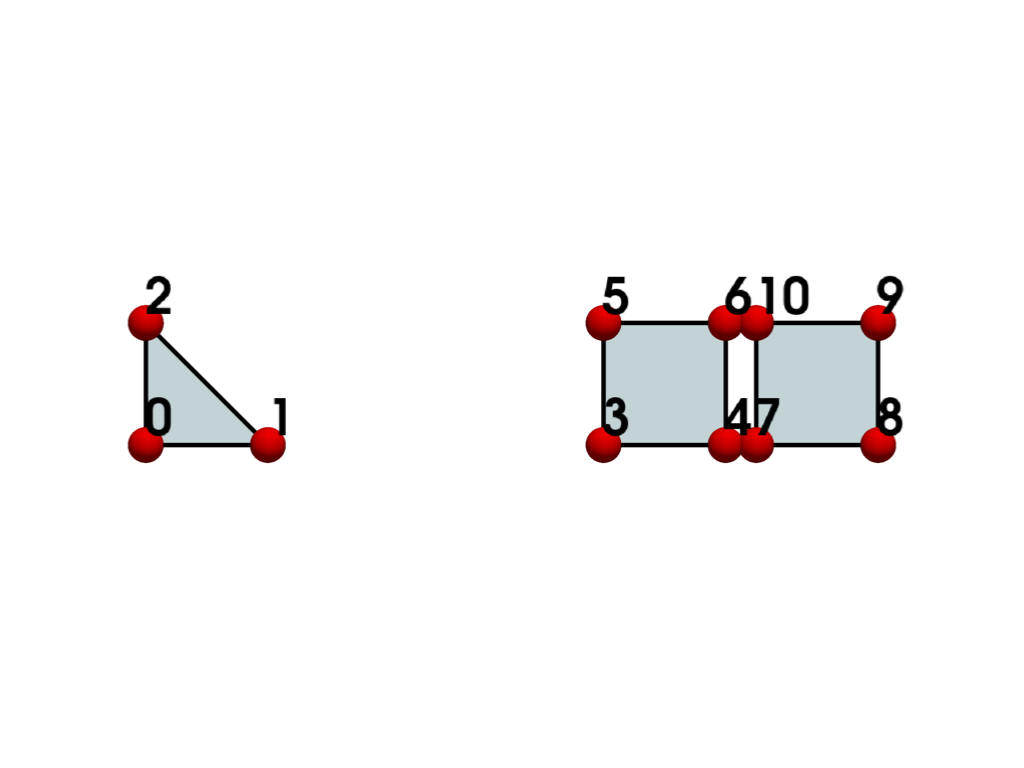

>>> plot_cell(triangle, cpos='xy')

Static Scene

Interactive Scene

Generate multiple cell types. Here we generate all concrete linear 2D cells.

>>> cell_types = [
...     ctype
...     for ctype in pv.CellType
...     if ctype.dimension == 2 and ctype.is_linear
... ]
>>> cell_types
[<CellType.TRIANGLE: 5>,
 <CellType.TRIANGLE_STRIP: 6>,
 <CellType.POLYGON: 7>,
 <CellType.PIXEL: 8>,
 <CellType.QUAD: 9>]

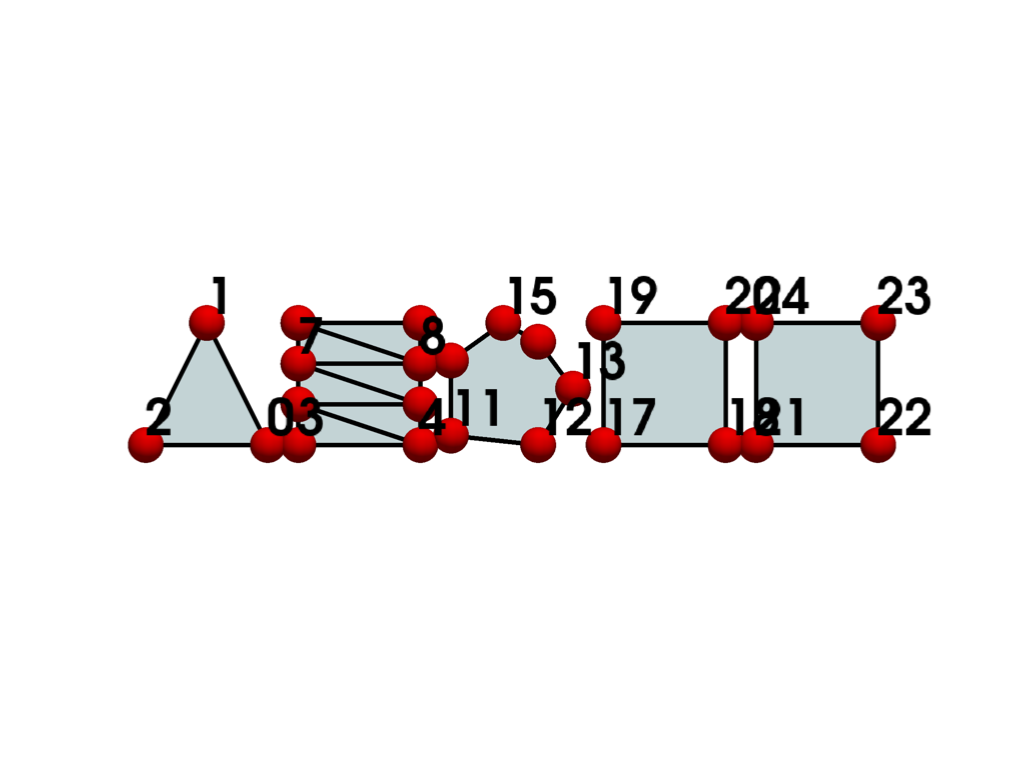

>>> cell_blocks = generate_cell_blocks(cell_types, shrink_factor=0.8)
>>> plot_cell(cell_blocks, cpos='xy')

Static Scene

Interactive Scene

Each block’s name matches the name of the cell type.

>>> cell_blocks.keys()
['TRIANGLE', 'TRIANGLE_STRIP', 'POLYGON', 'PIXEL', 'QUAD']

Generate the same cell types using the parametric generator. This generator does not support triangle strip or polygon cells, so we skip these.

>>> cell_blocks = generate_cell_blocks(
...     cell_types, 'parametric', shrink_factor=0.8, unsupported_action='skip'
... )
>>> plot_cell(cell_blocks, cpos='xy')

Static Scene

Interactive Scene

Use the source generator. It also does not support triangle strip, but it does support polygon. This time, we squeeze the blocks together instead of skipping them, and do not shrink them. This combination generates a continuous grid with no gaps.

>>> cell_blocks = generate_cell_blocks(
...     cell_types, 'source', unsupported_action='squeeze'
... )
>>> plot_cell(cell_blocks, cpos='xy')

Static Scene

Interactive Scene

Generate cell types on a dimensioned grid.

>>> lines = [pv.CellType.LINE] * 3
>>> polygons = [pv.CellType.POLYGON] * 3
>>> wedges = [pv.CellType.WEDGE] * 3
>>> pyramids = [pv.CellType.PYRAMID] * 3
>>> cell_types = [*lines, *polygons, *wedges, *pyramids]

Plot them with 3 cells in the x-direction, and 4 cells in the y-direction.

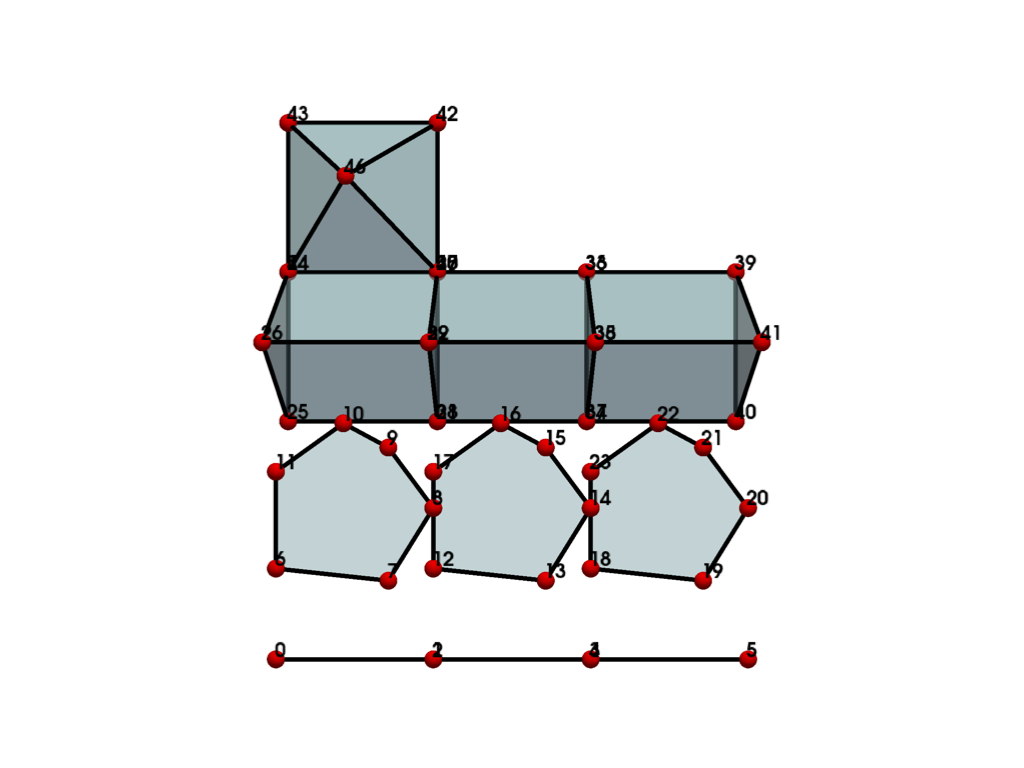

>>> cell_blocks = generate_cell_blocks(cell_types, block_dimensions=(3, 4, 1))
>>> size_kwargs = dict(point_size=40, font_size=20)

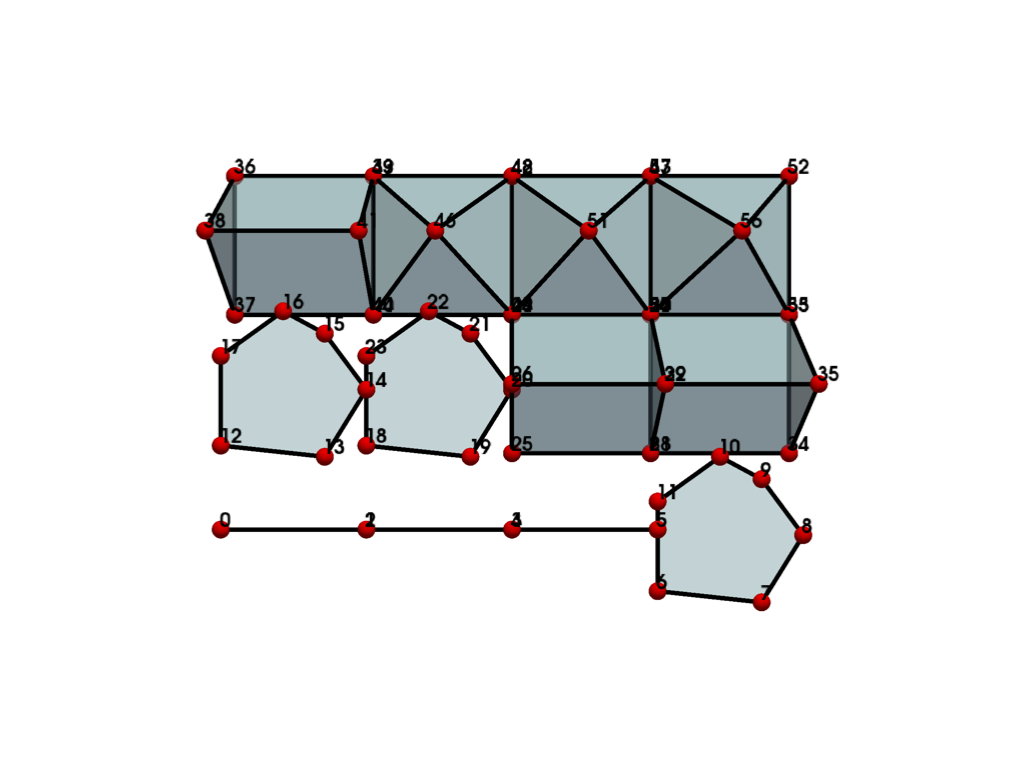

>>> plot_cell(cell_blocks, cpos='xy', **size_kwargs)

Static Scene

Interactive Scene

Reverse the x and y dimension.

>>> cell_blocks = generate_cell_blocks(cell_types, block_dimensions=(4, 3, 1))

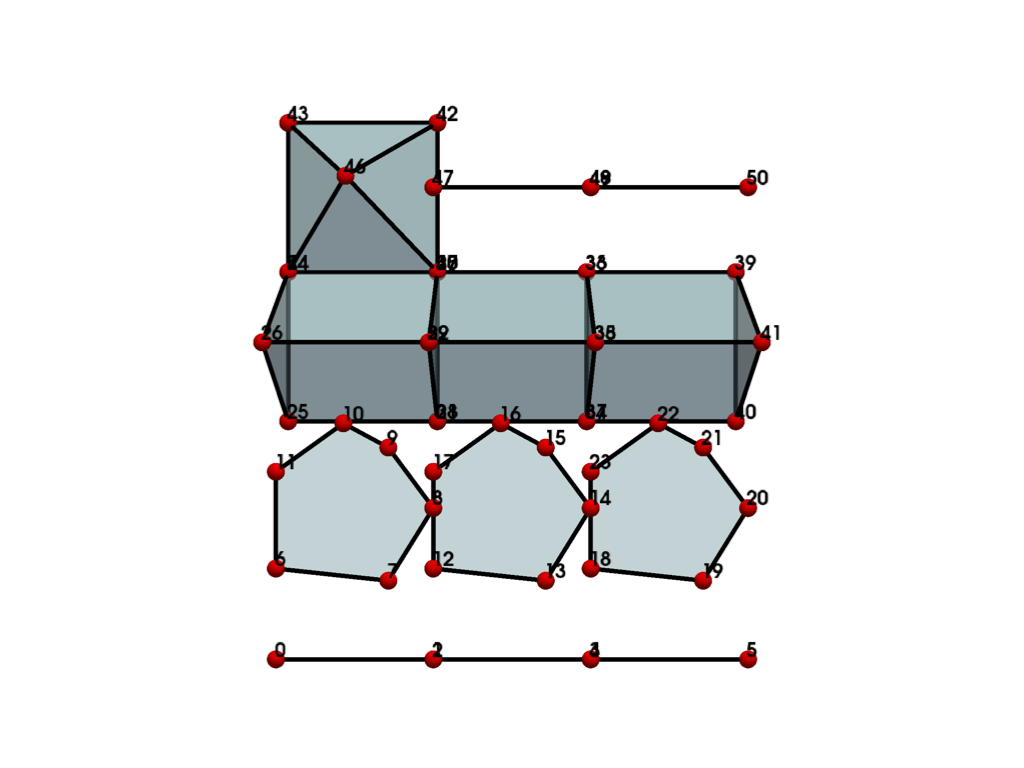

>>> plot_cell(cell_blocks, cpos='xy', **size_kwargs)

Static Scene

Interactive Scene

Use the 'stop' fill mode if there is a mismatch between the number of cell types and block dimensions. Here, the last two pyramid cell types are omitted.

>>> cell_blocks = generate_cell_blocks(
...     cell_types[:-2], block_dimensions=(3, 4, 1), fill_mode='stop'
... )

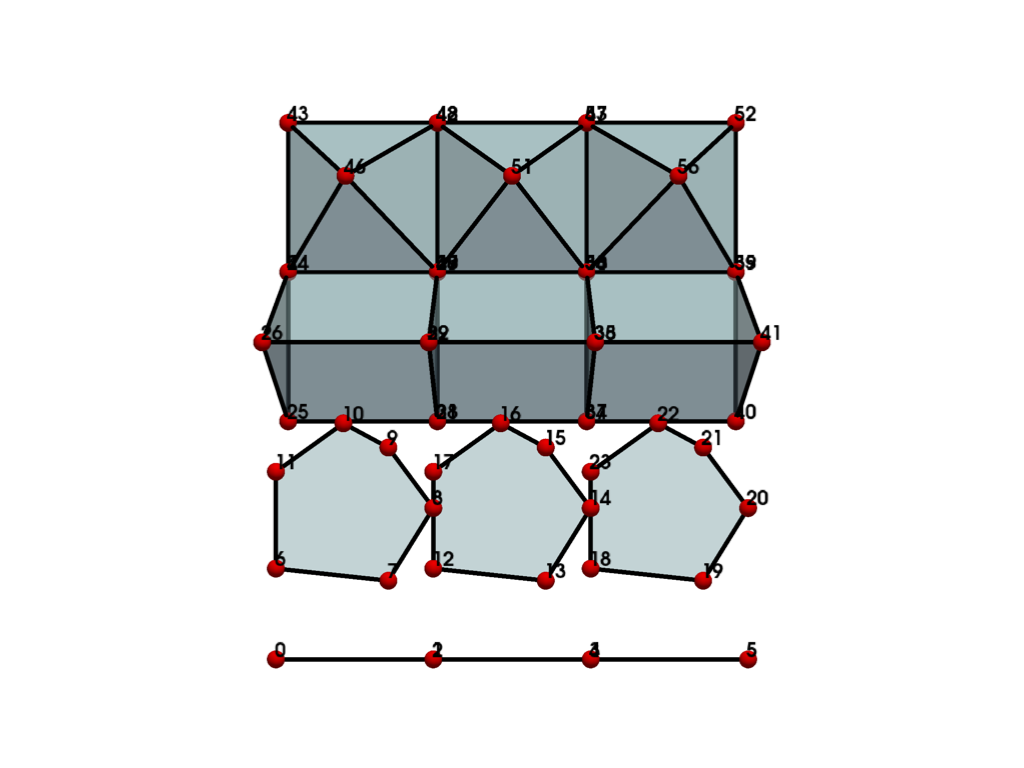

>>> plot_cell(cell_blocks, cpos='xy', **size_kwargs)

Static Scene

Interactive Scene

Alternatively, cycle through the cell types again to completely fill the dimensions. In this case, the line type is reused to fill the gap.

>>> cell_blocks = generate_cell_blocks(
...     cell_types[:-2], block_dimensions=(3, 4, 1), fill_mode='cycle'
... )

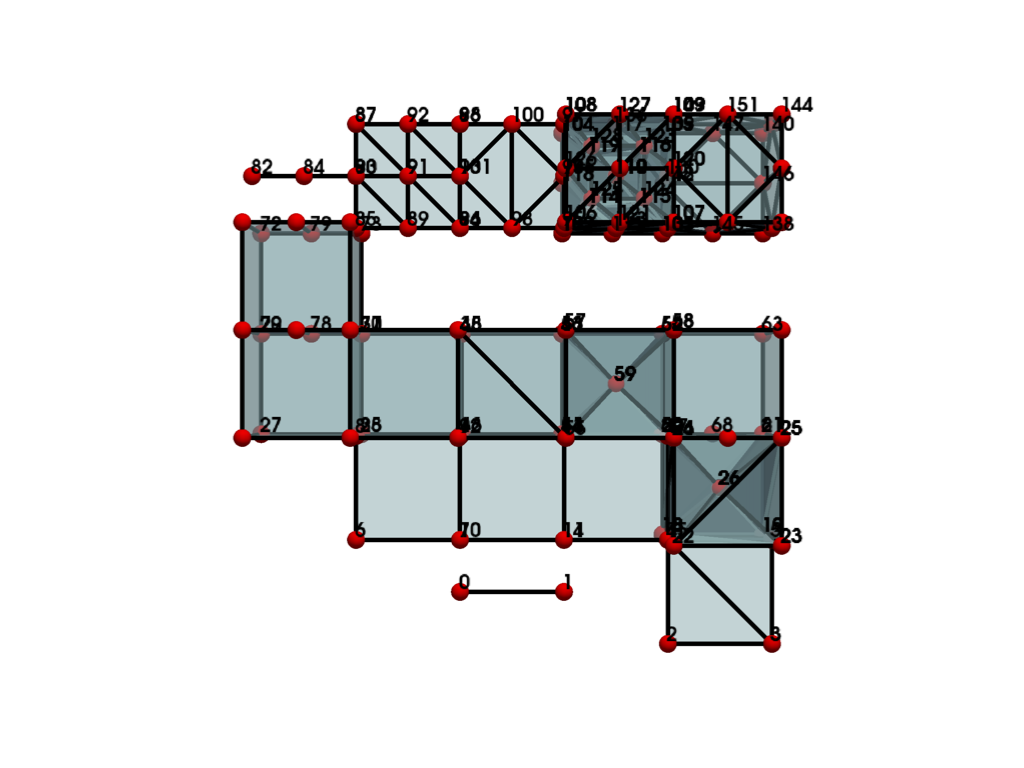

>>> plot_cell(cell_blocks, cpos='xy', **size_kwargs)

Static Scene

Interactive Scene

Generate a 5x5x5 grid comprised of all 3D cell types with no gaps.

>>> cell_types = [ctype for ctype in pv.CellType if ctype.dimension == 3]

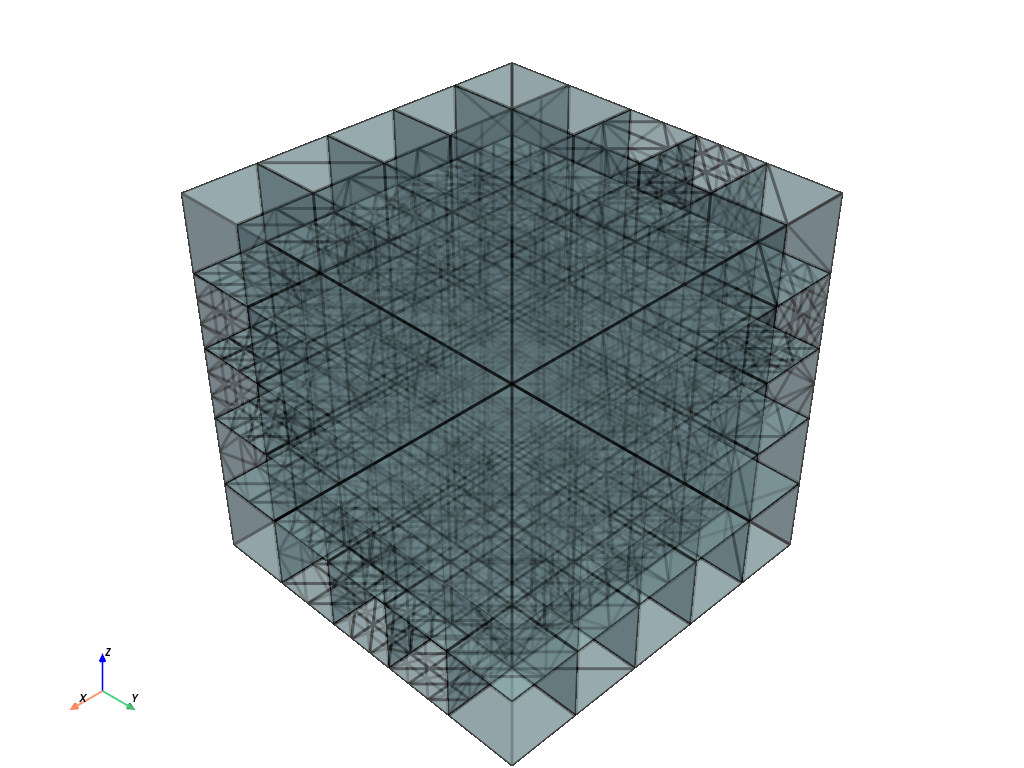

>>> cell_blocks = generate_cell_blocks(
...     cell_types,
...     'source',
...     block_dimensions=(5, 5, 5),
...     unsupported_action='squeeze',
...     fill_mode='cycle',
... )
>>> cell_blocks.plot(show_edges=True, opacity=0.5, line_width=3)

Static Scene

Interactive Scene

Combine into a single grid and show distinct_cell_types.

>>> cell_blocks.combine().distinct_cell_types
{<CellType.TETRA: 10>, <CellType.VOXEL: 11>, <CellType.HEXAHEDRON: 12>, <CellType.WEDGE: 13>,
 <CellType.PYRAMID: 14>, <CellType.PENTAGONAL_PRISM: 15>, <CellType.HEXAGONAL_PRISM: 16>,
 <CellType.QUADRATIC_TETRA: 24>, <CellType.QUADRATIC_HEXAHEDRON: 25>,
 <CellType.QUADRATIC_WEDGE: 26>, <CellType.QUADRATIC_PYRAMID: 27>,
 <CellType.TRIQUADRATIC_HEXAHEDRON: 29>, <CellType.TRIQUADRATIC_PYRAMID: 37>,
 <CellType.POLYHEDRON: 42>, <CellType.LAGRANGE_TETRAHEDRON: 71>,
 <CellType.LAGRANGE_HEXAHEDRON: 72>, <CellType.LAGRANGE_WEDGE: 73>,
 <CellType.BEZIER_TETRAHEDRON: 78>, <CellType.BEZIER_HEXAHEDRON: 79>,
 <CellType.BEZIER_WEDGE: 80>}

Compare the first 25 cell types from the different generators. Note that some values, e.g. 17, do not correspond to any cell type, so gaps are expected in all outputs.

>>> kwargs = dict(
...     cell_types=range(1, 26),
...     block_dimensions=(5, 5, 1),
...     unsupported_action='skip',
... )
>>> cell_blocks = generate_cell_blocks(generator='examples', **kwargs)
>>> plot_cell(cell_blocks, cpos='xy', **size_kwargs)

Static Scene

Interactive Scene

>>> cell_blocks = generate_cell_blocks(generator='parametric', **kwargs)

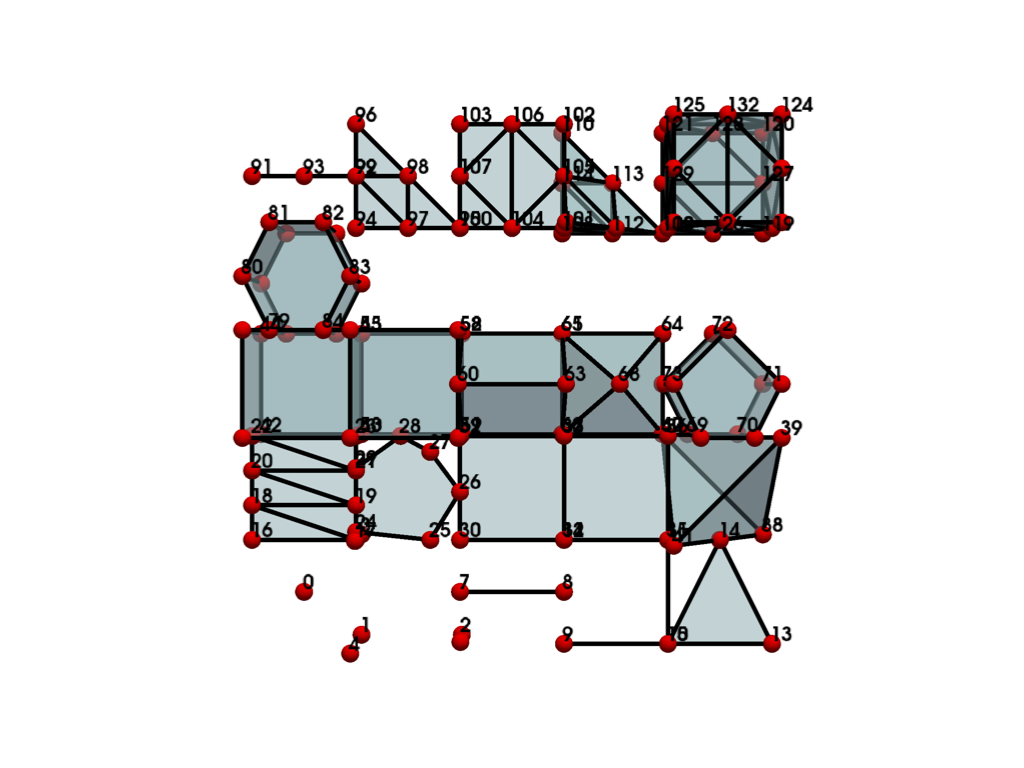

>>> plot_cell(cell_blocks, cpos='xy', **size_kwargs)

Static Scene

Interactive Scene

>>> cell_blocks = generate_cell_blocks(generator='source', **kwargs)

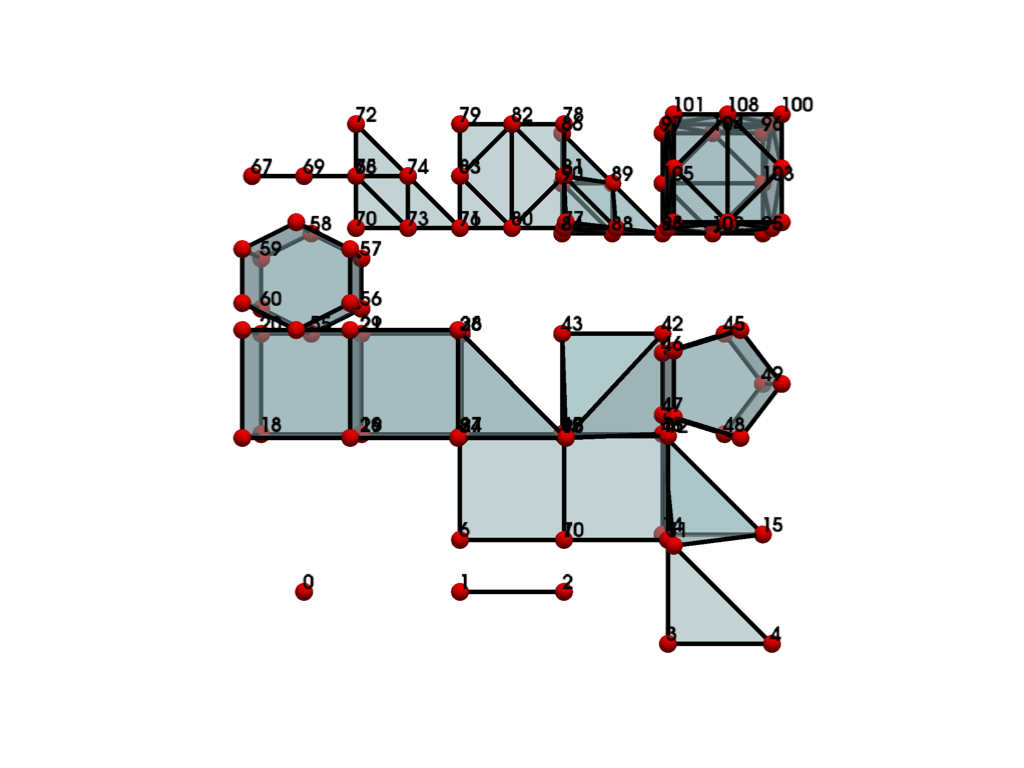

>>> plot_cell(cell_blocks, cpos='xy', **size_kwargs)

Static Scene

Interactive Scene
