ParticleReader

class ParticleReader(*args, **kwargs)

Reader for the VTK Particle format (.raw).

Wraps vtkParticleReader.

Added in version 0.44.0.

Warning

If the byte order is not set correctly, the reader will fail to read the file.

Examples

Download Python source code | Download Jupyter notebook

>>> import pyvista as pv
>>> from pyvista import examples
>>> from pathlib import Path
>>> filename = examples.download_particles(load=False)
>>> reader = pv.get_reader(filename)
>>> reader.endian = 'BigEndian'
>>> Path(filename).name
'Particles.raw'
>>> mesh = reader.read()

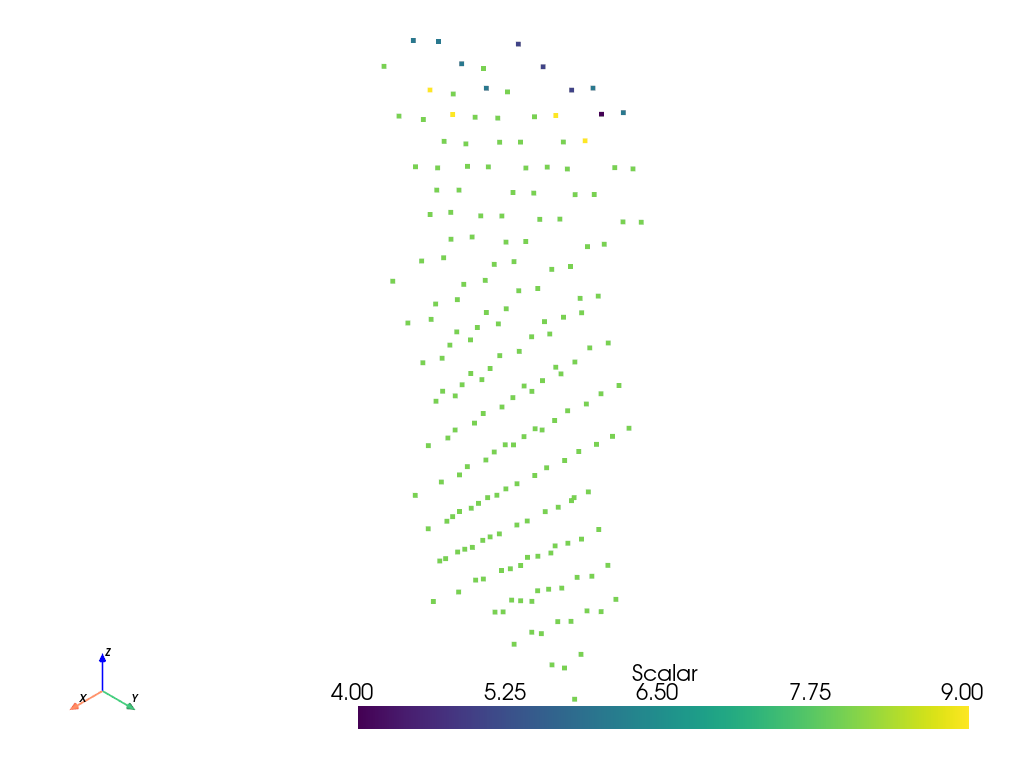

>>> mesh.plot()

Static Scene

Interactive Scene

Inheritance

Inherited members are documented on BaseReader, _FileIOBase.

See them all under Inherited Attributes and Inherited Methods.

Attributes

ParticleReader.endian

Return or set the byte order of the data, 'BigEndian' or 'LittleEndian'.

Inherited Attributes

_FileIOBase.extension_patterns	Return mapping from regex pattern matching associated with this class.
_FileIOBase.extensions	Return the file extensions associated with this class.
_FileIOBase.format_description	Return the human-readable description of the file format.
BaseReader.path	Return or set the filename or directory of the reader.
BaseReader.reader	Return the vtk Reader object.

Inherited Methods

BaseReader.hide_progress	Hide the progress bar when loading the file.
BaseReader.read	Read data in file.
BaseReader.show_progress	Show a progress bar when loading the file.
