pyvista.ExodusIIReader

class ExodusIIReader(*args, **kwargs)

ExodusIIReader for .e and .exo files.

Reads Exodus II files

Added in version 0.45.0.

Examples

>>> import pyvista as pv
>>> from pyvista import examples
>>> filename = examples.download_mug(load=False)
>>> reader = pv.get_reader(filename)
>>> mesh = reader.read()

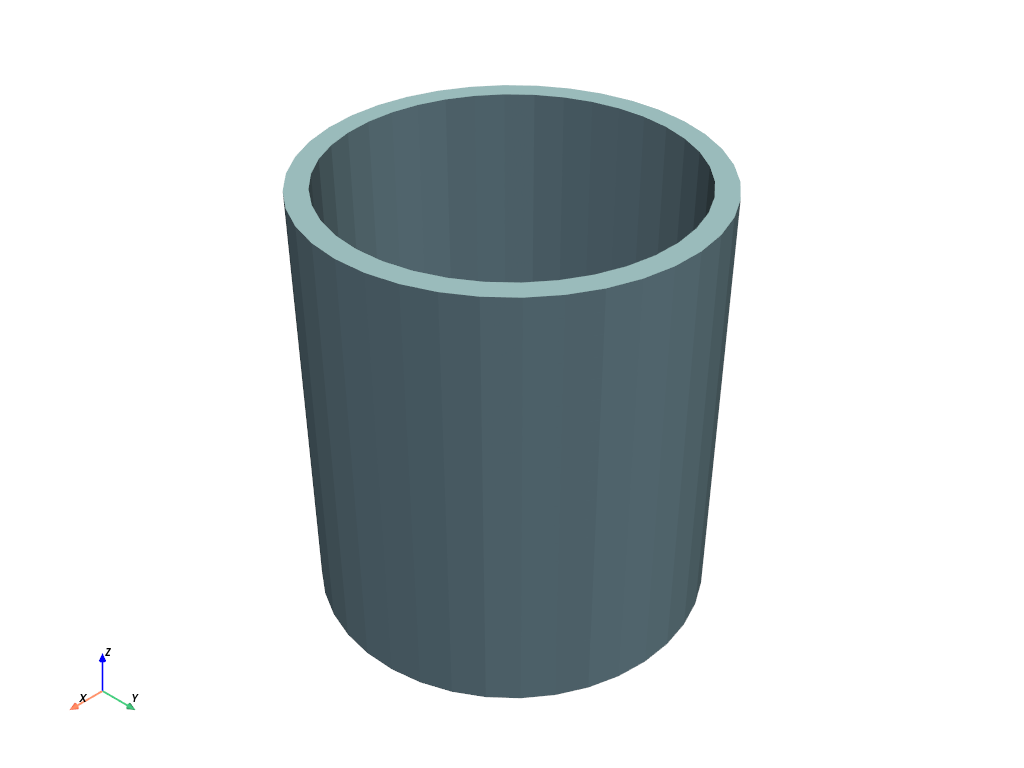

>>> mesh.plot()

Static Scene

Interactive Scene

Methods

ExodusIIReader.cell_array_status(name)	Get status of cell array with name.
ExodusIIReader.disable_all_global_arrays()	Disable all global arrays.
ExodusIIReader.disable_cell_array(name)	Disable cell array with name.
ExodusIIReader.disable_displacements()	Nodal positions are not 'displaced'.
ExodusIIReader.disable_global_array(name)	Disable global array with name.
ExodusIIReader.disable_point_array(name)	Disable point array with name.
ExodusIIReader.enable_all_global_arrays()	Enable all global arrays.
ExodusIIReader.enable_cell_array(name)	Enable cell array with name.
ExodusIIReader.enable_displacements([...])	Nodal positions are 'displaced' by the standard exodus displacement vector.
ExodusIIReader.enable_global_array(name)	Enable global array with name.
ExodusIIReader.enable_point_array(name)	Enable point array with name.
ExodusIIReader.global_array_status(name)	Get status of global array with name.
ExodusIIReader.point_array_status(name)	Get status of point array with name.
ExodusIIReader.read_global()	Read enabled global data.
ExodusIIReader.set_active_time_point(time_point)	Set active time or iteration by index.
ExodusIIReader.set_active_time_value(time_value)	Set active time or iteration value.
ExodusIIReader.time_point_value(time_point)	Value of time point or iteration by index.

Attributes

ExodusIIReader.active_time_value	Active time or iteration value.
ExodusIIReader.cell_array_names	Return the list of all cell array names.
ExodusIIReader.edge_blocks	Returns an ExodusIIBlockSet object for the edge blocks.
ExodusIIReader.element_blocks	Returns an ExodusIIBlockSet object for the element blocks.
ExodusIIReader.element_sets	Returns an ExodusIIBlockSet object for the element sets.
ExodusIIReader.face_blocks	Returns an ExodusIIBlockSet object for the face blocks.
ExodusIIReader.face_sets	Returns an ExodusIIBlockSet object for the face sets.
ExodusIIReader.global_array_names	Return the list of all global array names.
ExodusIIReader.node_sets	Returns an ExodusIIBlockSet object for the node sets.
ExodusIIReader.number_cell_arrays	Return the number of point arrays.
ExodusIIReader.number_global_arrays	Return the number of point arrays.
ExodusIIReader.number_point_arrays	Return the number of point arrays.
ExodusIIReader.number_time_points	Return number of time points or iterations available to read.
ExodusIIReader.point_array_names	Return the list of all point array names.
ExodusIIReader.side_sets	Returns an ExodusIIBlockSet object for the side sets.
ExodusIIReader.time_values	All time or iteration values.
