pyvista.AxesAssembly

class AxesAssembly(

*,

x_label: str | None = None,

y_label: str | None = None,

z_label: str | None = None,

labels: Sequence[str] | None = None,

label_color: ColorLike = 'black',

show_labels: bool = True,

label_position: float | VectorLike[float] | None = None,

label_size: int = 50,

x_color: ColorLike | Sequence[ColorLike] | None = None,

y_color: ColorLike | Sequence[ColorLike] | None = None,

z_color: ColorLike | Sequence[ColorLike] | None = None,

position: VectorLike[float] = (0.0, 0.0, 0.0),

orientation: VectorLike[float] = (0.0, 0.0, 0.0),

origin: VectorLike[float] = (0.0, 0.0, 0.0),

scale: float | VectorLike[float] = (1.0, 1.0, 1.0),

user_matrix: MatrixLike[float] | None = None,

**kwargs: Unpack[_AxesGeometryKwargs],

)

Assembly of arrow-style axes parts.

The axes may be used as a widget or added to a scene.

Parameters:

x_labelstr, default: ‘X’

Text label for the x-axis. Alternatively, set the label with labels.

y_labelstr, default: ‘Y’

Text label for the y-axis. Alternatively, set the label with labels.

z_labelstr, default: ‘Z’

Text label for the z-axis. Alternatively, set the label with labels.

labelsSequence[str], optional,

Text labels for the axes. This is an alternative parameter to using x_label, y_label, and z_label separately.

label_colorColorLike, default: ‘black’

Color of the text labels.

show_labelsbool, default: True

Show or hide the text labels.

label_positionfloat | VectorLike[float], optional

Position of the text labels along each axis. By default, the labels are positioned at the ends of the shafts.

label_sizeint, default: 50

Size of the text labels.

x_colorColorLike | Sequence[ColorLike], optional

Color of the x-axis shaft and tip.

y_colorColorLike | Sequence[ColorLike], optional

Color of the y-axis shaft and tip.

z_colorColorLike | Sequence[ColorLike], optional

Color of the z-axis shaft and tip.

positionVectorLike[float], default: (0.0, 0.0, 0.0)

Position of the axes in space.

orientationVectorLike[float], default: (0, 0, 0)

Orientation angles of the axes which define rotations about the world’s x-y-z axes. The angles are specified in degrees and in x-y-z order. However, the actual rotations are applied in the around the y-axis first, then the x-axis, and finally the z-axis.

originVectorLike[float], default: (0.0, 0.0, 0.0)

Origin of the axes. This is the point about which all rotations take place. The rotations are defined by the orientation.

scaleVectorLike[float], default: (1.0, 1.0, 1.0)

Scaling factor applied to the axes.

user_matrixMatrixLike[float], optional

A 4x4 transformation matrix applied to the axes. Defaults to the identity matrix. The user matrix is the last transformation applied to the actor.

**kwargs

Keyword arguments passed to pyvista.AxesGeometrySource.

Examples

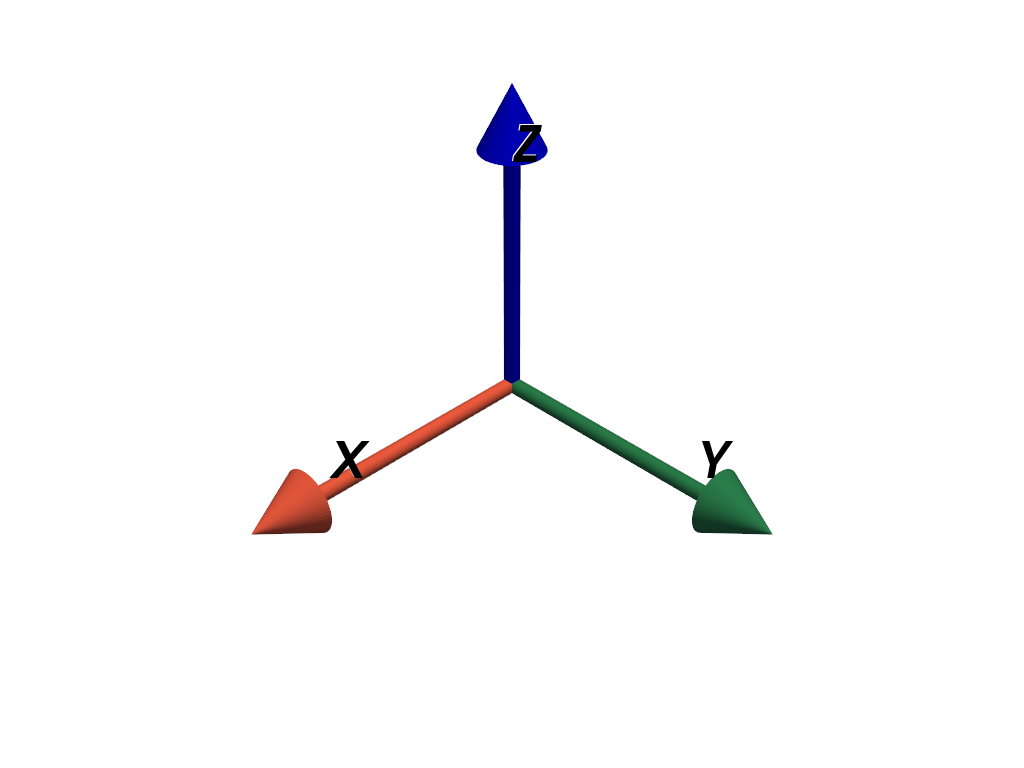

Add axes to a plot.

>>> import pyvista as pv
>>> axes = pv.AxesAssembly()
>>> pl = pv.Plotter()
>>> _ = pl.add_actor(axes)
>>> pl.show()

Static Scene

Interactive Scene

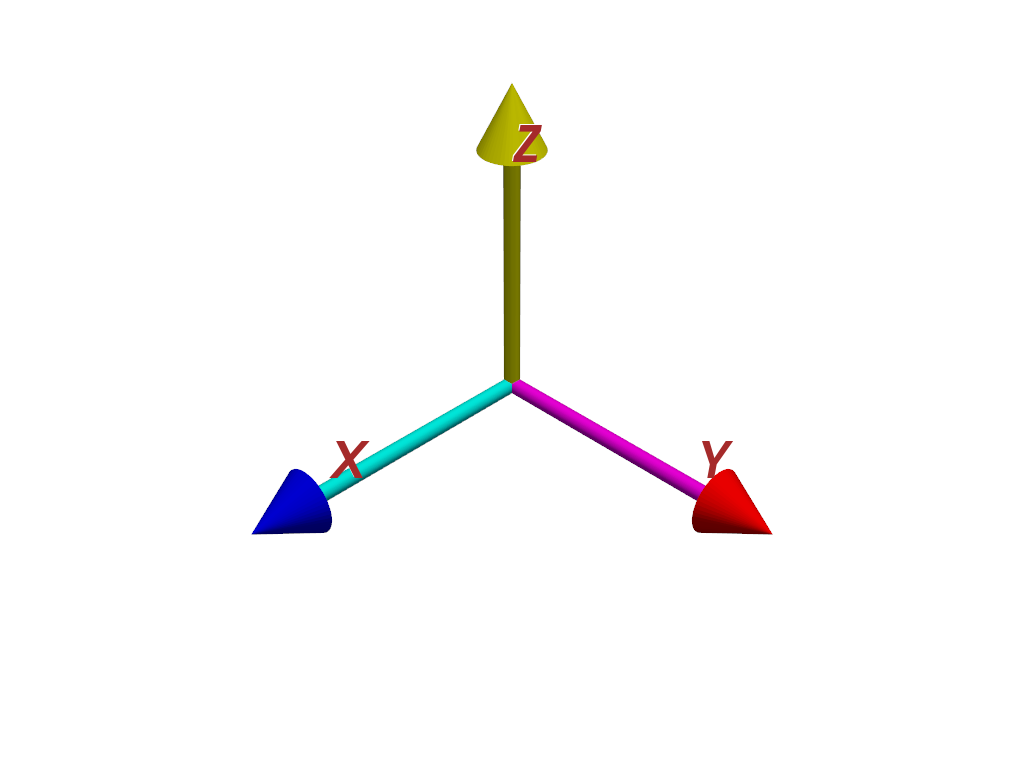

Customize the axes colors. Set each axis to a single color, or set the colors of each shaft and tip separately with two colors.

>>> axes.x_color = ['cyan', 'blue']
>>> axes.y_color = ['magenta', 'red']
>>> axes.z_color = 'yellow'

Customize the label color too.

>>> axes.label_color = 'brown'

>>> pl = pv.Plotter()
>>> _ = pl.add_actor(axes)
>>> pl.show()

Static Scene

Interactive Scene

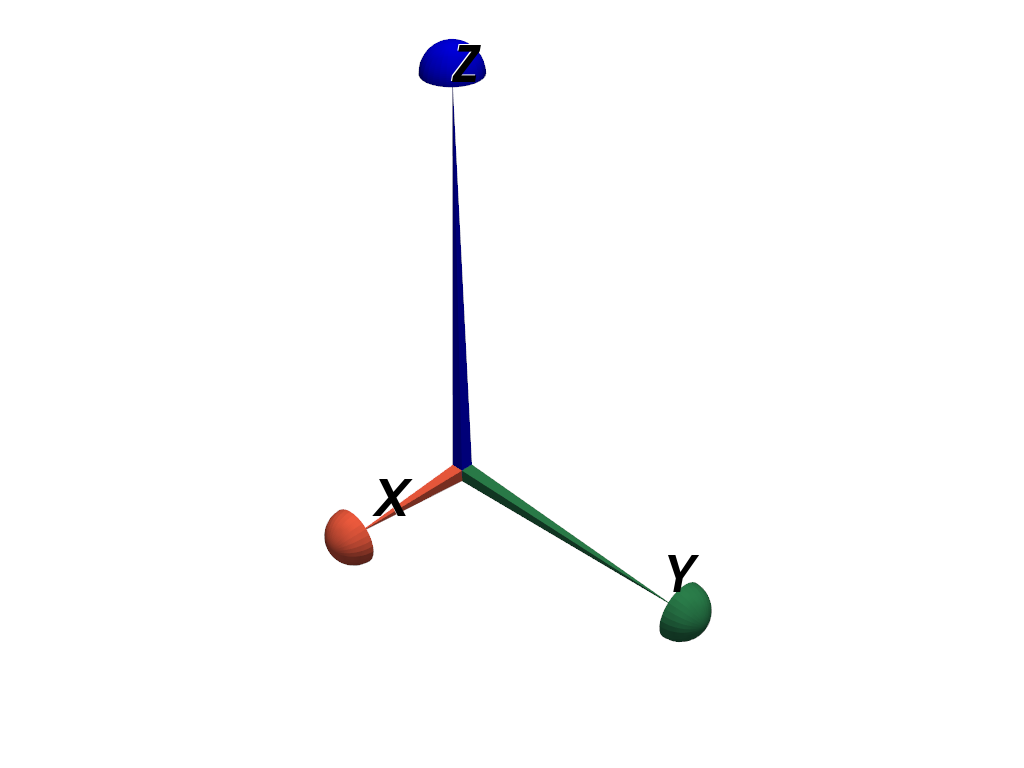

Create axes with custom geometry. Use pyramid shafts and hemisphere tips and modify the lengths.

>>> axes = pv.AxesAssembly(
...     shaft_type='pyramid',
...     tip_type='hemisphere',
...     tip_length=0.1,
...     shaft_length=(0.5, 1.0, 1.5),
... )
>>> pl = pv.Plotter()
>>> _ = pl.add_actor(axes)
>>> pl.show()

Static Scene

Interactive Scene

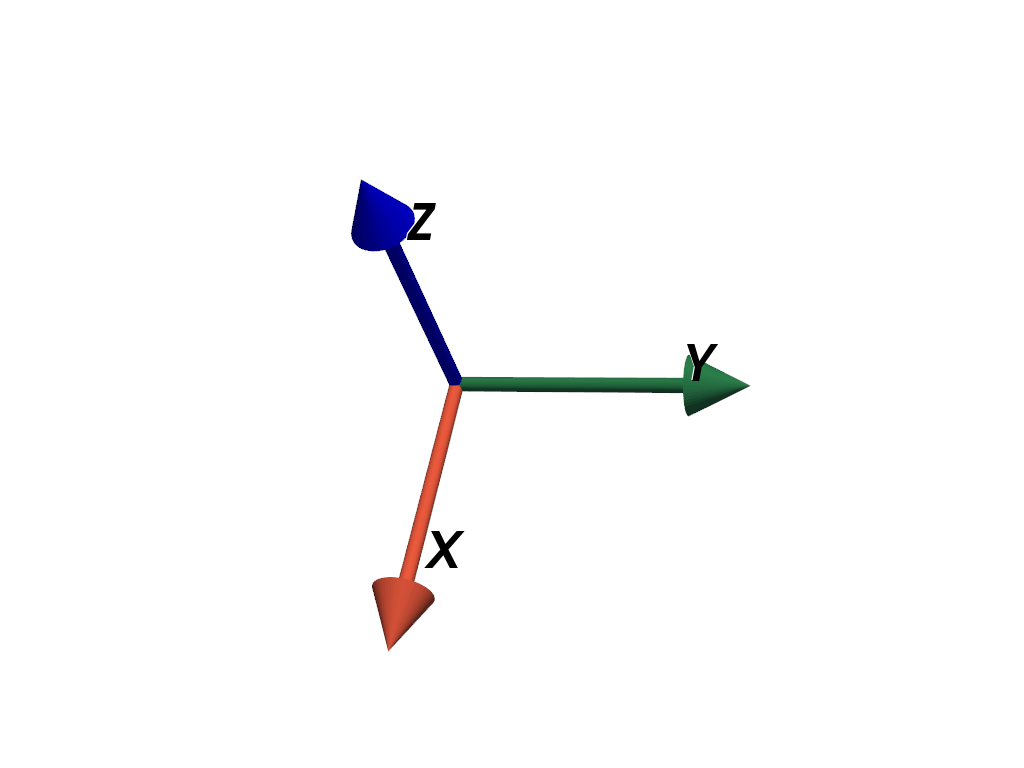

Position and orient the axes in space.

>>> axes = pv.AxesAssembly(position=(1.0, 2.0, 3.0), orientation=(10, 20, 30))
>>> pl = pv.Plotter()
>>> _ = pl.add_actor(axes)
>>> pl.show()

Static Scene

Interactive Scene

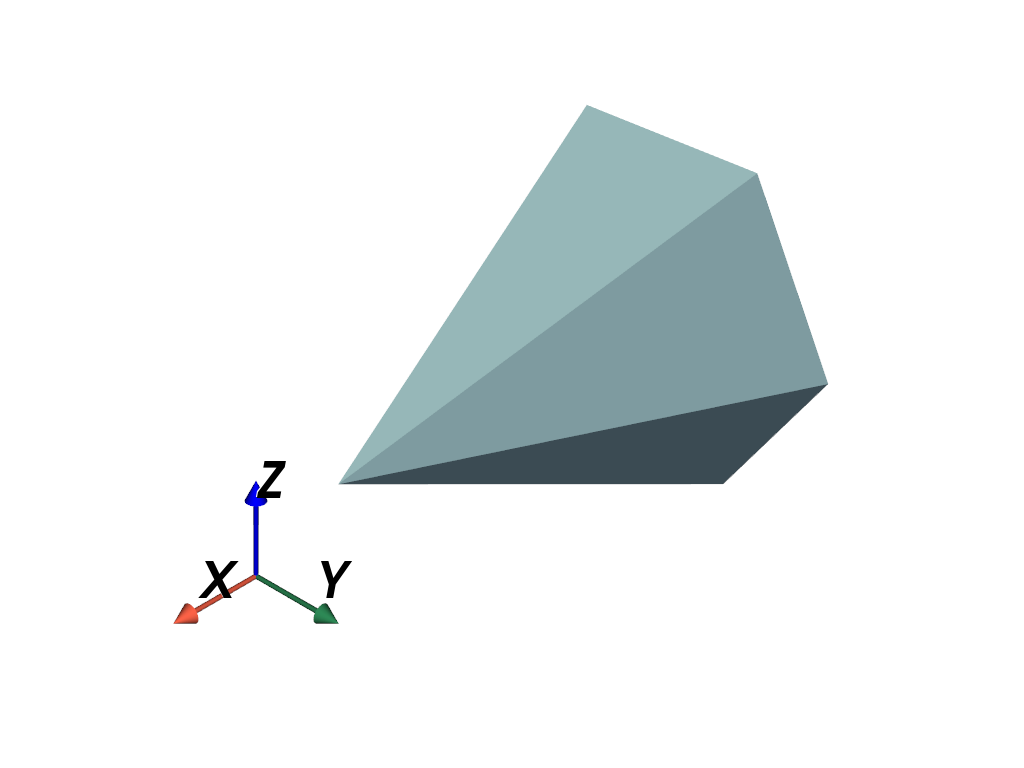

Add the axes as a custom orientation widget with add_orientation_widget():

>>> import pyvista as pv

>>> axes = pv.AxesAssembly(symmetric_bounds=True)

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(pv.Cone())
>>> _ = pl.add_orientation_widget(
...     axes,
...     viewport=(0, 0, 0.5, 0.5),
... )
>>> pl.show()

Static Scene

Interactive Scene

Methods

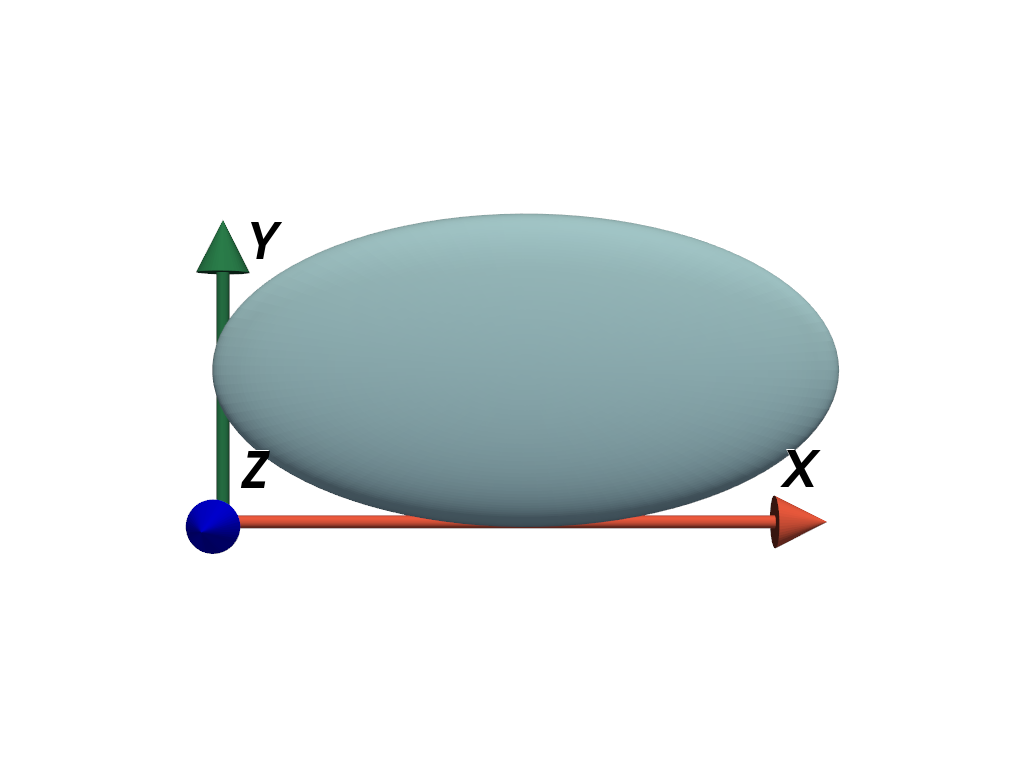

AxesAssembly.get_actor_prop(name)	Get Property attributes for the axes shaft and/or tip actors.
AxesAssembly.set_actor_prop(name, value[, ...])	Set Property attributes for the axes shaft and/or tip actors.

Attributes

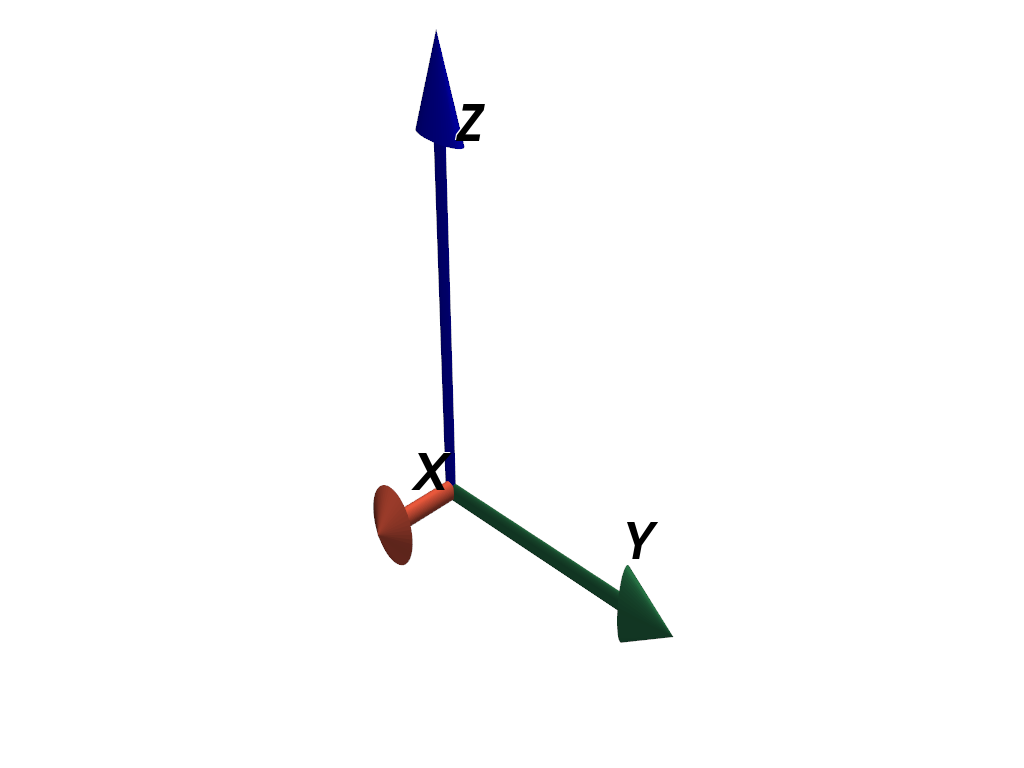

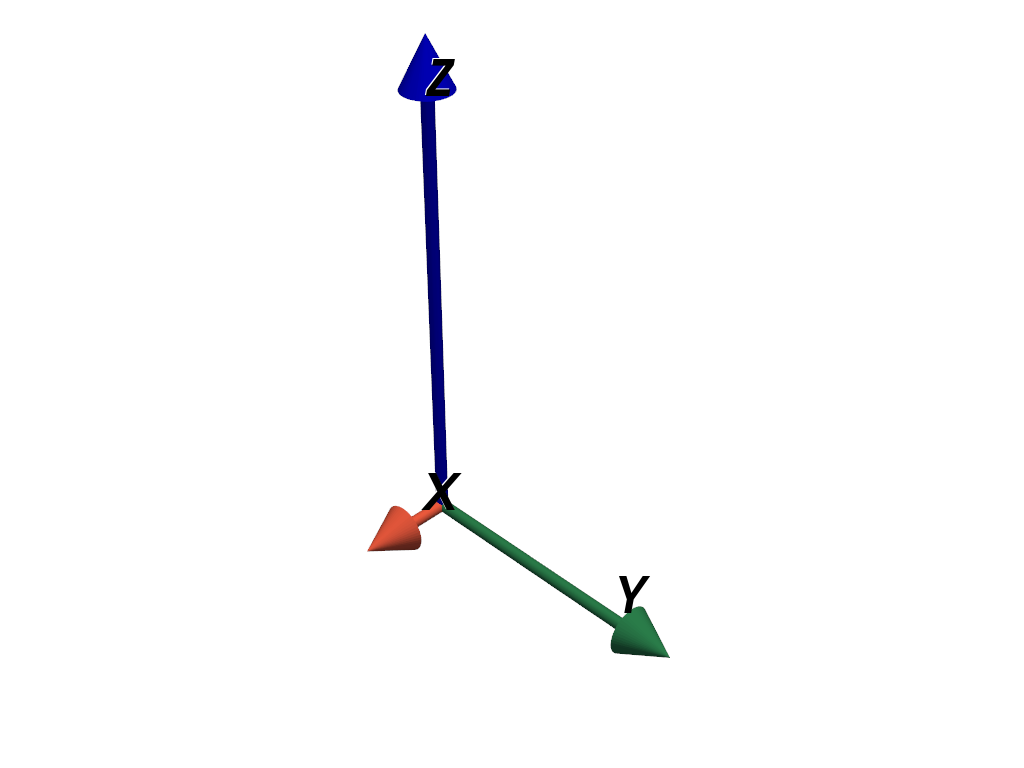

AxesAssembly.label_position	Position of the text label along each axis.
AxesAssembly.label_size	Size of the text labels.
AxesAssembly.labels	Return or set the axes labels.
AxesAssembly.x_color	Color of the x-axis shaft and tip.
AxesAssembly.x_label	Text label for the x-axis.
AxesAssembly.y_color	Color of the y-axis shaft and tip.
AxesAssembly.y_label	Text label for the y-axis.
AxesAssembly.z_color	Color of the z-axis shaft and tip.
AxesAssembly.z_label	Text label for the z-axis.
