ImageGaussianSource

class ImageGaussianSource(*args, **kwargs)

Create a binary image with Gaussian pixel values.

Added in version 0.44.0.

Parameters:

centersequence[float]

The center of the gaussian.

whole_extentsequence[int]

The extent of the whole output image.

maximumfloat

The maximum value of the gaussian.

stdsequence[float]

The standard deviation of the gaussian.

Examples

Download Python source code | Download Jupyter notebook

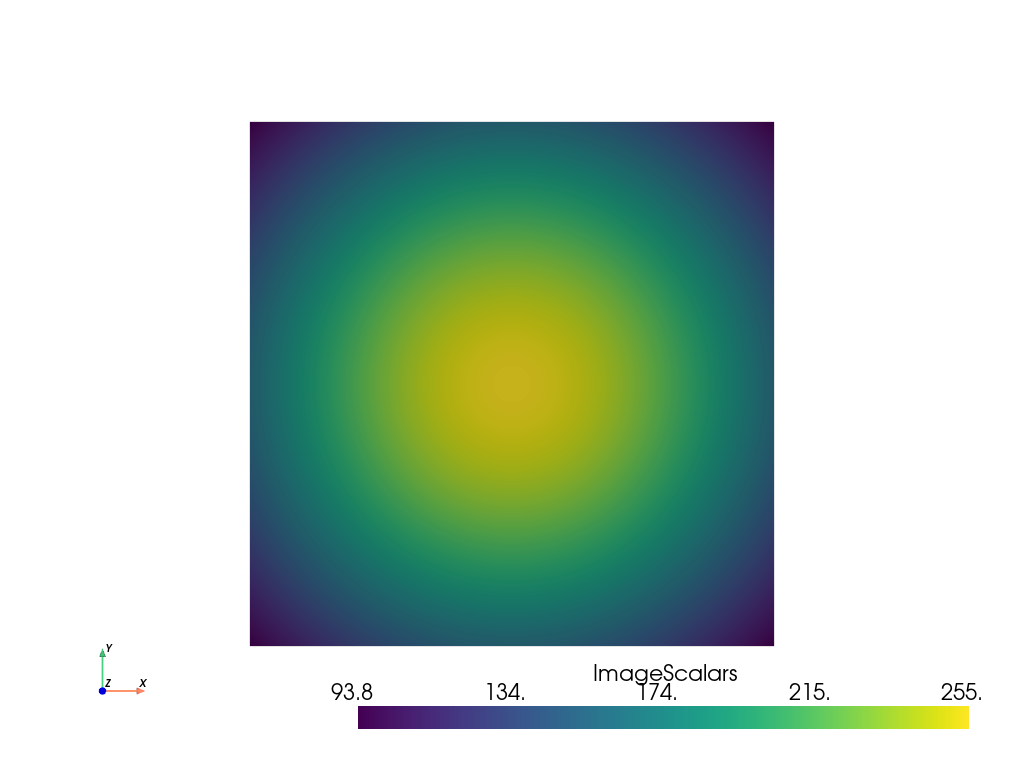

Create an image of Gaussian pixel values.

>>> import pyvista as pv
>>> source = pv.ImageGaussianSource(
...     center=(100, 100, 0),
...     whole_extent=(0, 200, 0, 200, 0, 0),
...     maximum=255,
...     std=100.0,
... )
>>> source.output.plot(cpos='xy')

Static Scene

Interactive Scene

Methods

Attributes

ImageGaussianSource.center	Get the center of the gaussian.
ImageGaussianSource.maximum	Get the maximum value of the gaussian.
ImageGaussianSource.output	Get the output image as a ImageData.
ImageGaussianSource.std	Get the standard deviation of the gaussian.
ImageGaussianSource.whole_extent	Get extent of the whole output image.
