ImageGridSource

class ImageGridSource(*args, **kwargs)

Create an image of a grid.

Added in version 0.44.0.

Parameters:

originsequence[float]

The origin of the grid.

extentsequence[int]

The extent of the whole output image, Default: (0,255,0,255,0,0).

spacingtuple

The pixel spacing.

Examples

Download Python source code | Download Jupyter notebook

Create an image of a grid.

>>> import pyvista as pv
>>> source = pv.ImageGridSource(
...     extent=(0, 20, 0, 20, 0, 0),
...     spacing=(1, 1, 1),
... )

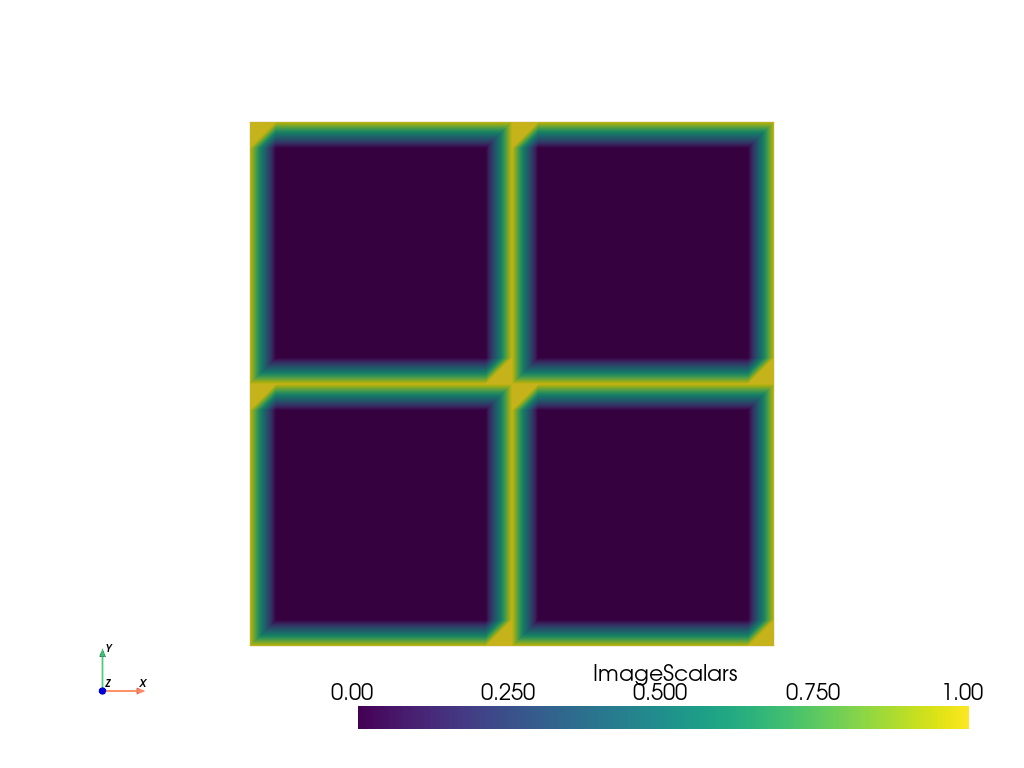

>>> source.output.plot(cpos='xy')

Static Scene

Interactive Scene

Methods

Attributes

ImageGridSource.extent	Get extent of the whole output image.
ImageGridSource.origin	Get the origin of the data.
ImageGridSource.output	Get the output image as a ImageData.
ImageGridSource.spacing	Get the spacing of the grid.
