pyvista.Wavelet

Wavelet(

extent: VectorLike[float] = (-10, 10, -10, 10, -10, 10),

center: VectorLike[float] = (0.0, 0.0, 0.0),

maximum: float = 255.0,

x_freq: float = 60.0,

y_freq: float = 30.0,

z_freq: float = 40.0,

x_mag: float = 10.0,

y_mag: float = 18.0,

z_mag: float = 5.0,

std: float = 0.5,

subsample_rate: int = 1,

) → ImageData

Create a wavelet.

Produces images with pixel values determined by Maximum*Gaussian*x_mag*sin(x_freq*x)*sin(y_freq*y)*cos(z_freq*z)

Values are float scalars on point data with name "RTData".

Parameters:

extentsequence[int], default: (-10, 10, -10, 10, -10, 10)

Set/Get the extent of the whole output image.

centersequence[float], default: (0.0, 0.0, 0.0)

Center of the wavelet.

maximumfloat, default: 255.0

Maximum of the wavelet function.

x_freqfloat, default: 60.0

Natural frequency in the x direction.

y_freqfloat, default: 30.0

Natural frequency in the y direction.

z_freqfloat, default: 40.0

Natural frequency in the z direction.

x_magfloat, default: 10.0

Magnitude in the x direction.

y_magfloat, default: 18.0

Magnitude in the y direction.

z_magfloat, default: 5.0

Magnitude in the z direction.

stdfloat, default: 0.5

Standard deviation.

subsample_rateint, default: 1

The sub-sample rate.

Returns:

pyvista.ImageData

Wavelet mesh.

Examples

>>> import pyvista as pv
>>> wavelet = pv.Wavelet(
...     extent=(0, 50, 0, 50, 0, 10),
...     x_freq=20,
...     y_freq=10,
...     z_freq=1,
...     x_mag=100,
...     y_mag=100,
...     z_mag=1000,
... )

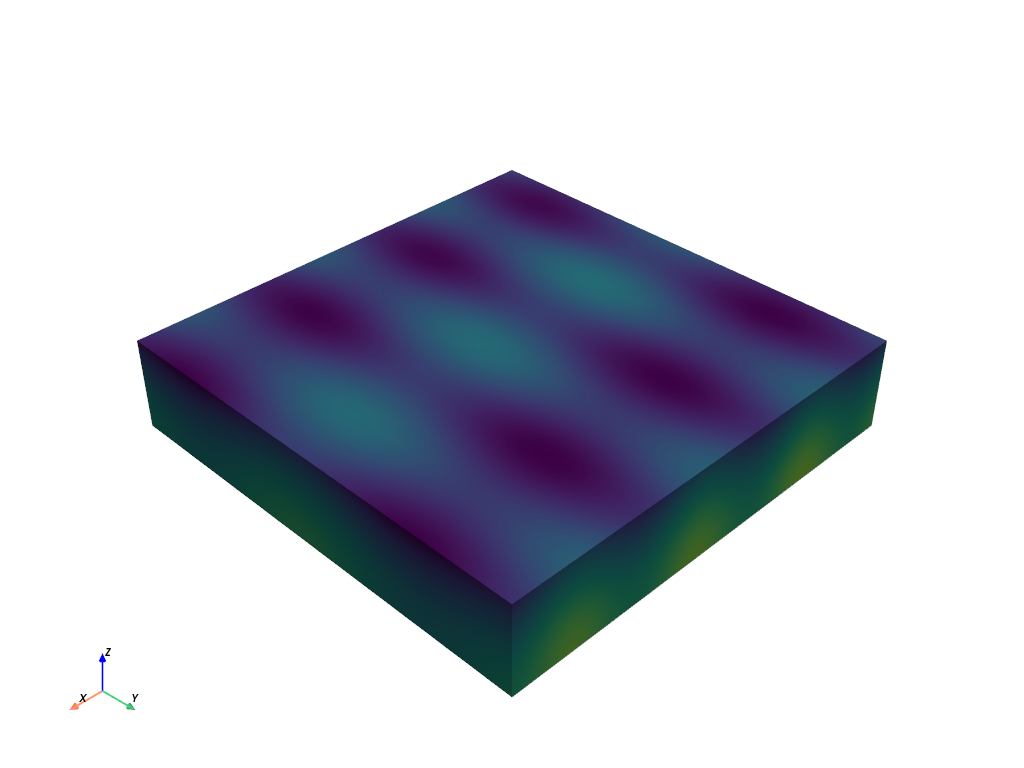

>>> wavelet.plot(show_scalar_bar=False)

Static Scene

Interactive Scene

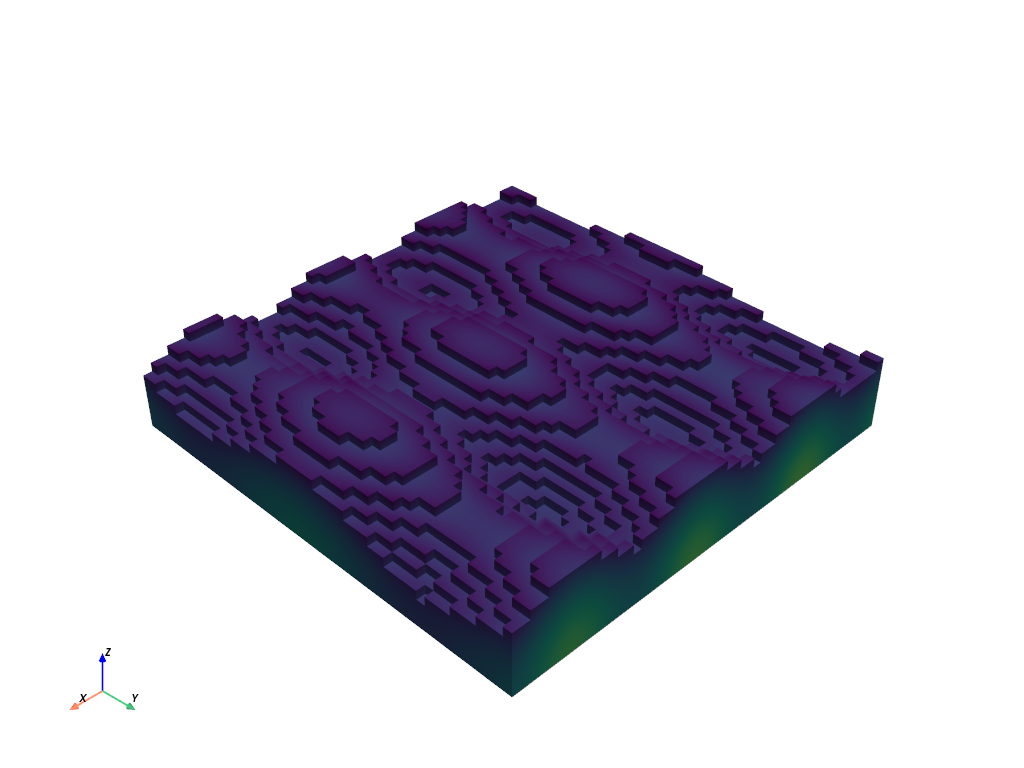

Extract lower valued cells of the wavelet and create a surface from it.

>>> thresh = wavelet.threshold(800).extract_surface()
>>> thresh.plot(show_scalar_bar=False)

Static Scene

Interactive Scene

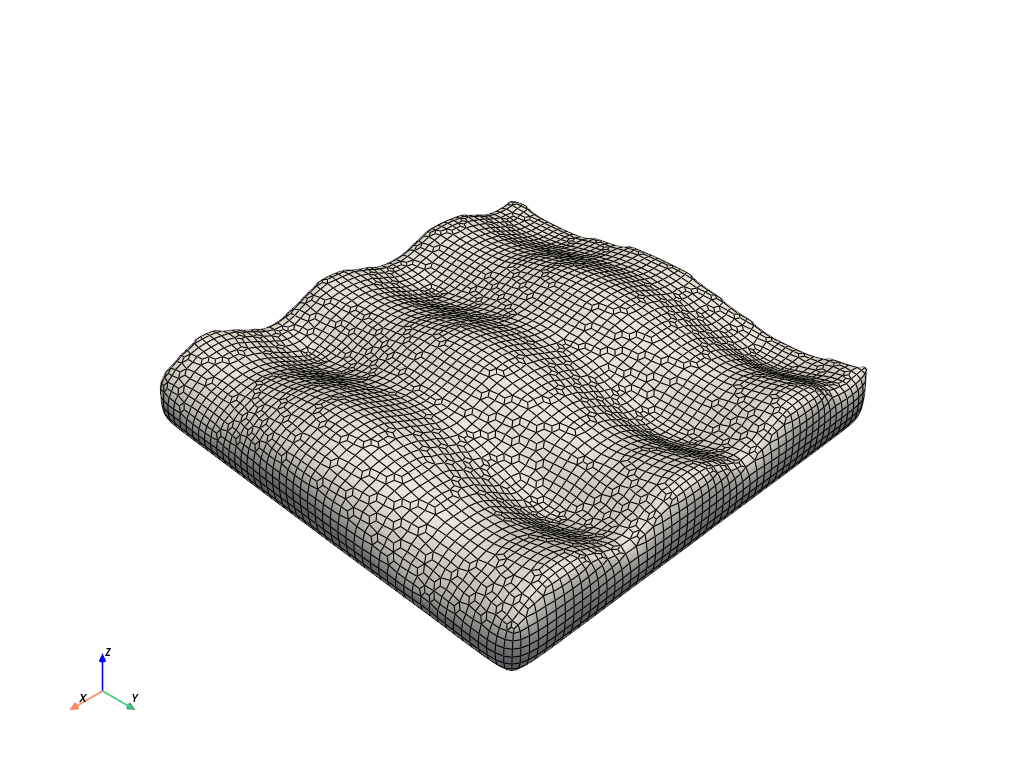

Smooth it to create “waves”

>>> waves = thresh.smooth(n_iter=100, relaxation_factor=0.1)
>>> waves.plot(color='white', smooth_shading=True, show_edges=True)

Static Scene

Interactive Scene
