PVDReader

class PVDReader(*args, **kwargs)

PVD Reader for .pvd files.

Reading a time point returns a pyvista.MultiBlock, even when it contains only one dataset. This differs from ParaView, which returns the dataset directly for PVD files with one dataset per time point. Index the returned blocks to access an individual dataset. Selecting the first block does not combine multiple blocks.

Examples

Download Python source code | Download Jupyter notebook

>>> import pyvista as pv
>>> from pyvista import examples
>>> from pathlib import Path
>>> filename = examples.download_wavy(load=False)
>>> Path(filename).name
'wavy.pvd'
>>> reader = pv.get_reader(filename)
>>> reader.time_values
[0.0, 1.0, 2.0, 3.0, ... 12.0, 13.0, 14.0]
>>> reader.set_active_time_point(5)
>>> reader.active_time_value
5.0
>>> blocks = reader.read()
>>> blocks.n_blocks
1
>>> mesh = blocks[0]
>>> isinstance(mesh, pv.StructuredGrid)
True

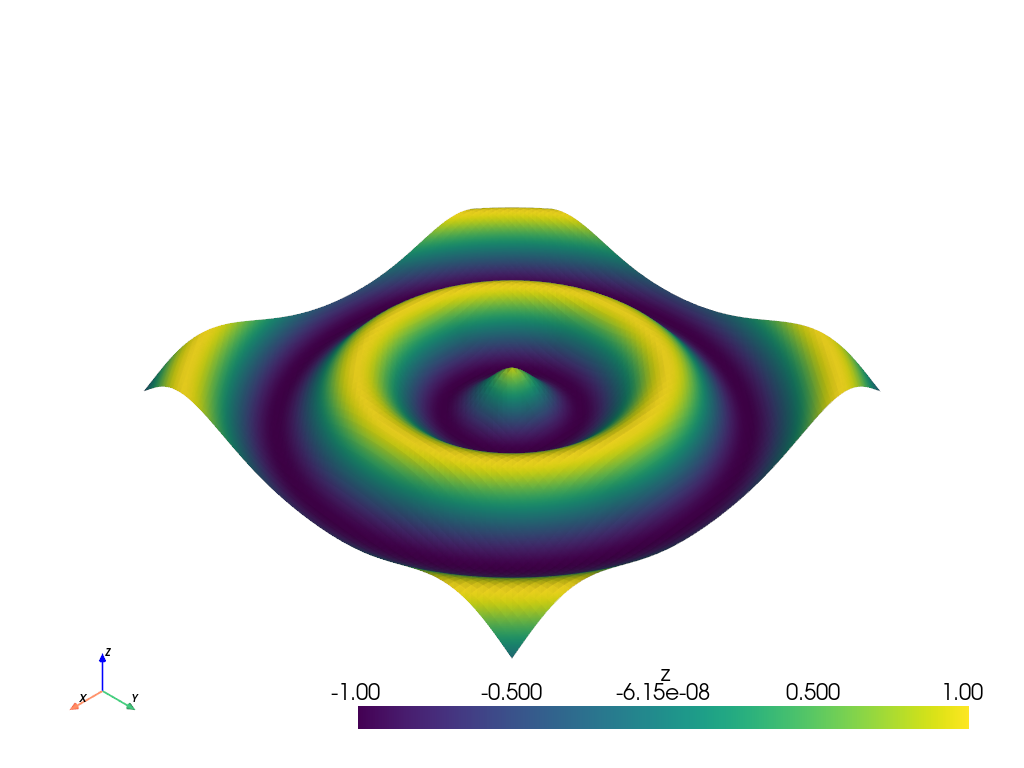

>>> mesh.plot(scalars='z')

Static Scene

Interactive Scene

Used In

API Examples

• download_dual_sphere_animation (1 use)
• download_single_sphere_animation (1 use)

Inheritance

Inherited members are documented on BaseReader, _FileIOBase, TimeReader.

See them all under Inherited Attributes and Inherited Methods.

Attributes

PVDReader.active_datasets	Return all active datasets.
PVDReader.active_readers	Return the active readers.
PVDReader.active_time_value	Active time or iteration value.
PVDReader.datasets	Return all datasets.
PVDReader.number_time_points	Return number of time points or iterations available to read.
PVDReader.time_values	All time or iteration values.

Inherited Attributes

_FileIOBase.extension_patterns	Return mapping from regex pattern matching associated with this class.
_FileIOBase.extensions	Return the file extensions associated with this class.
BaseReader.path	Return or set the filename or directory of the reader.
BaseReader.reader	Return the vtk Reader object.

Methods

PVDReader.set_active_time_point(time_point)	Set active time or iteration by index.
PVDReader.set_active_time_value(time_value)	Set active time or iteration value.
PVDReader.time_point_value(time_point)	Value of time point or iteration by index.

Inherited Methods

BaseReader.hide_progress	Hide the progress bar when loading the file.
BaseReader.read	Read data in file.
BaseReader.show_progress	Show a progress bar when loading the file.
