pyvista.Actor.backface_prop

property Actor.backface_prop: Property | None

Return or set the backface property.

By default this property matches the frontface property Actor.prop. Once accessed or modified, this backface property becomes independent of the frontface property. In order to restore the fallback to frontface property, assign None to the property.

Returns:

pyvista.Property

The object describing backfaces.

Examples

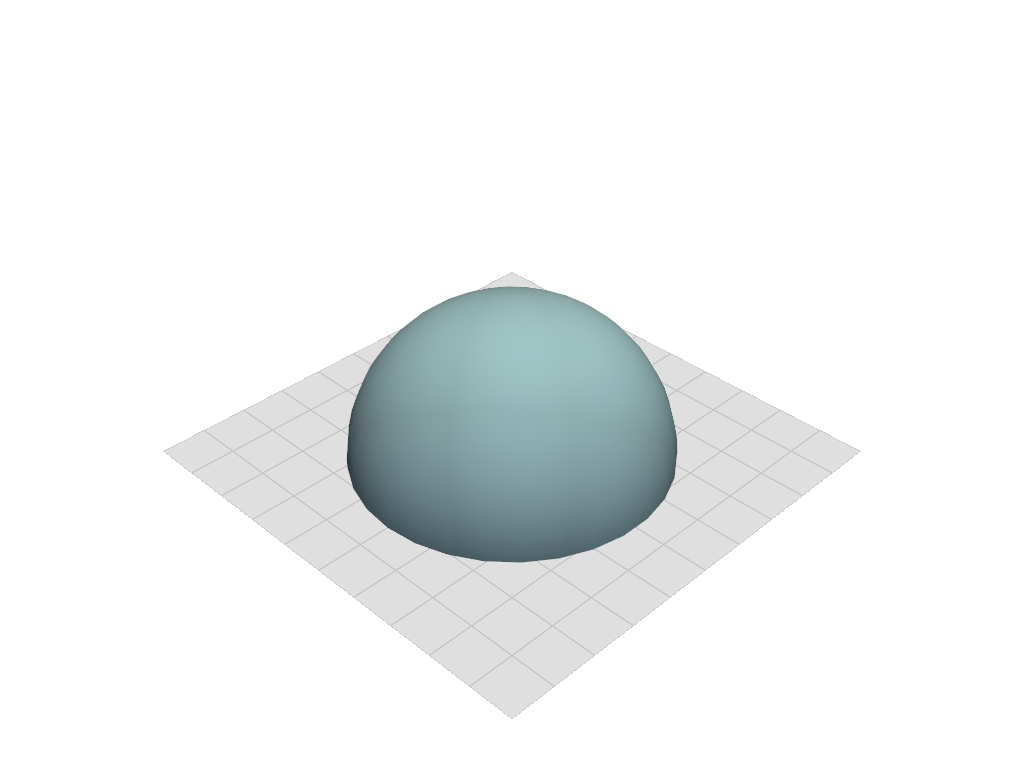

Clip a sphere by a plane and color the inside of the clipped sphere light blue using the backface_prop.

>>> import numpy as np
>>> import pyvista as pv
>>> plane = pv.Plane(i_size=1.5, j_size=1.5)
>>> mesh = pv.Sphere().clip_surface(plane, invert=False)
>>> pl = pv.Plotter()
>>> actor = pl.add_mesh(mesh, smooth_shading=True)
>>> actor.backface_prop.color = 'lightblue'
>>> _ = pl.add_mesh(
...     plane,
...     opacity=0.25,
...     show_edges=True,
...     color='grey',
...     lighting=False,
... )
>>> pl.show()

Static Scene

Interactive Scene
