pyvista.DiscSource

class DiscSource(

center: VectorLike[float] | None = None,

inner: float = 0.25,

outer: float = 0.5,

r_res: int = 1,

c_res: int = 6,

)

Disc source algorithm class.

Added in version 0.44.0.

Parameters:

centersequence[float], default: (0.0, 0.0, 0.0)

Center in [x, y, z]. Middle of the axis of the disc.

innerfloat, default: 0.25

The inner radius.

outerfloat, default: 0.5

The outer radius.

r_resint, default: 1

Number of points in radial direction.

c_resint, default: 6

Number of points in circumferential direction.

Examples

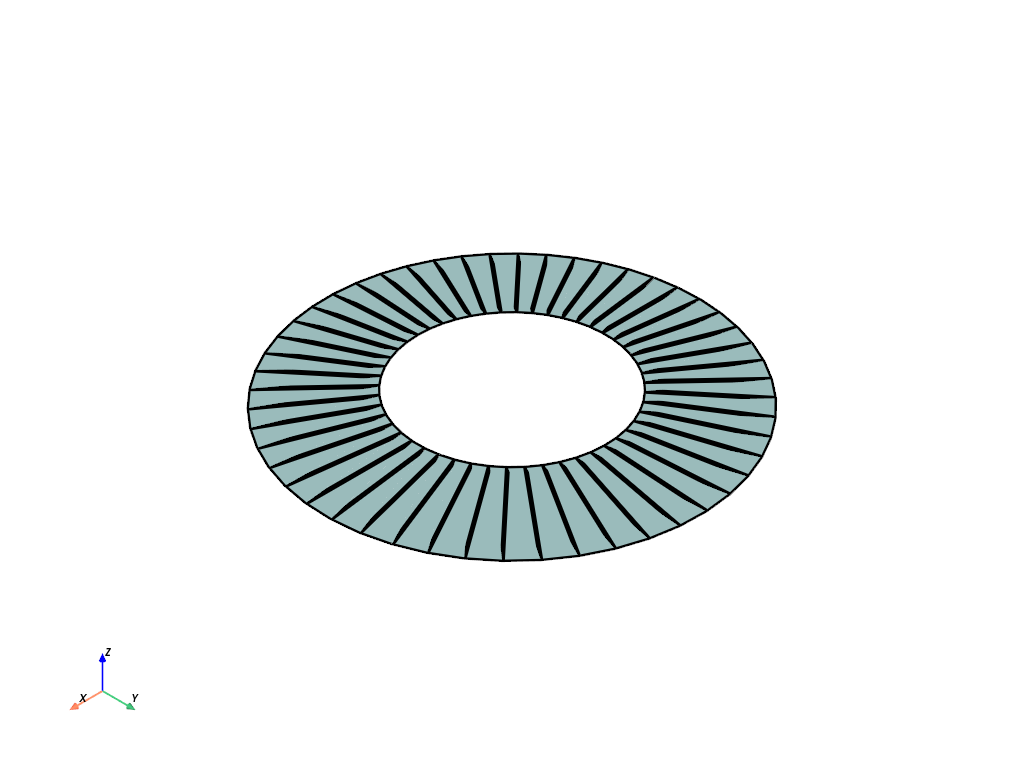

Create a disc with 50 points in the circumferential direction.

>>> import pyvista as pv
>>> source = pv.DiscSource(c_res=50)
>>> source.output.plot(show_edges=True, line_width=5)

Static Scene

Interactive Scene

Methods

Attributes

DiscSource.c_res	Get number of points in circumferential direction.
DiscSource.center	Get the center in [x, y, z].
DiscSource.inner	Get the inner radius.
DiscSource.outer	Get the outer radius.
DiscSource.output	Get the output data object for a port on this algorithm.
DiscSource.r_res	Get number of points in radial direction.
