pyvista.Plotter.view_isometric

Plotter.view_isometric(negative=False, render=True, bounds=None)

Reset the camera to a default isometric view.

The view will show all the actors in the scene.

Parameters:

negativebool, default: False

View from the other isometric direction.

renderbool, default: True

If the render window is being shown, trigger a render after setting the camera position.

boundsiterable(int), optional

Automatically set up the camera based on a specified bounding box (x_min, x_max, y_min, y_max, z_min, z_max).

Examples

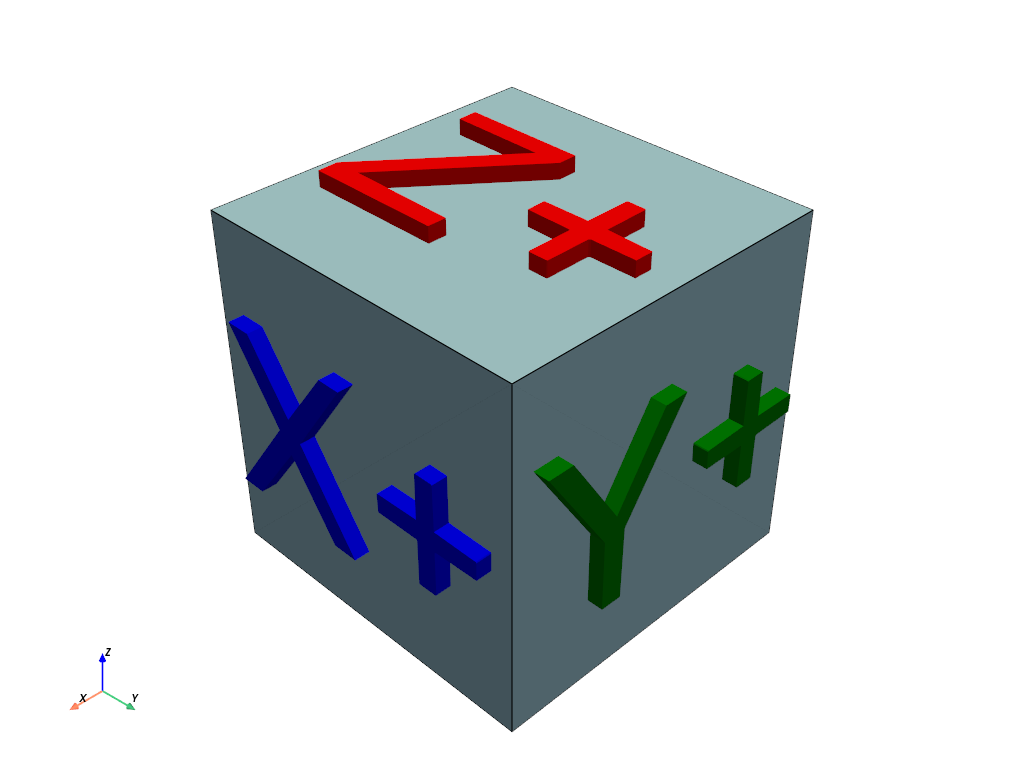

Isometric view.

>>> from pyvista import demos
>>> pl = demos.orientation_plotter()
>>> pl.view_isometric()
>>> pl.show()

Static Scene

Interactive Scene

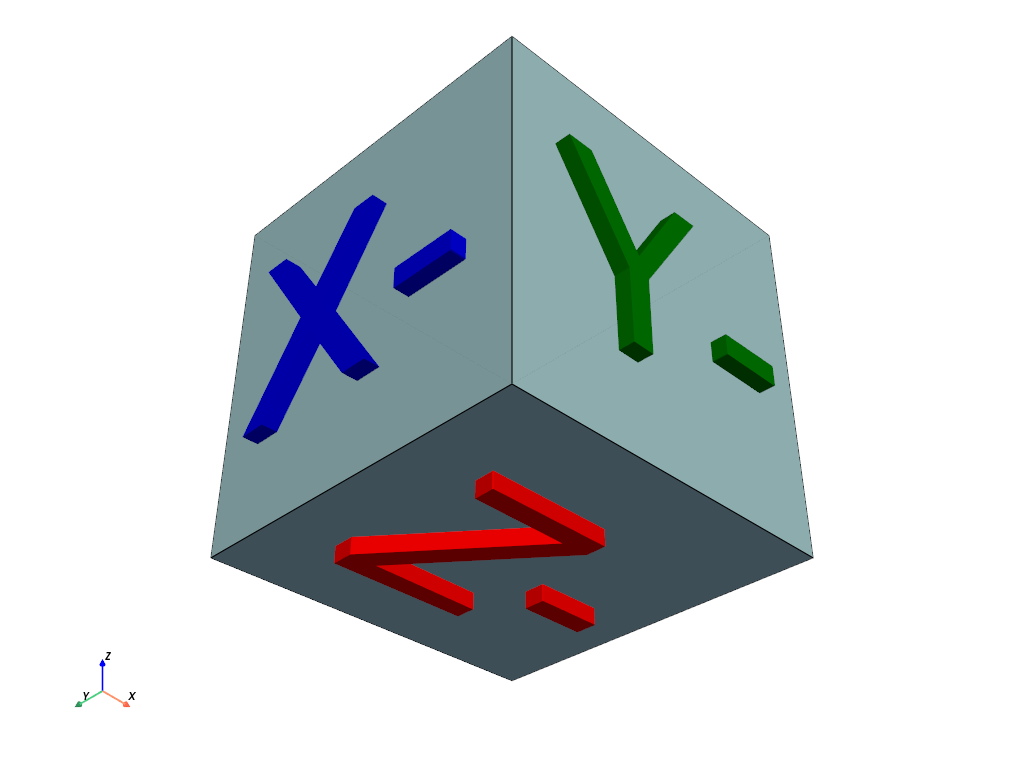

Negative isometric view.

>>> from pyvista import demos
>>> pl = demos.orientation_plotter()
>>> pl.view_isometric(negative=True)
>>> pl.show()

Static Scene

Interactive Scene
