pyvista.Plotter.add_camera_orientation_widget

Plotter.add_camera_orientation_widget(animate=True, n_frames=20)

Add a camera orientation widget to the active renderer.

Note

This widget requires vtk>=9.1.0.

Parameters:

animatebool, default: True

Enable or disable jump-to-axis-view animation.

n_framesint, default: 20

The number of frames to animate the jump-to-axis-viewpoint feature.

Returns:

vtkCameraOrientationWidget

Camera orientation widget.

Examples

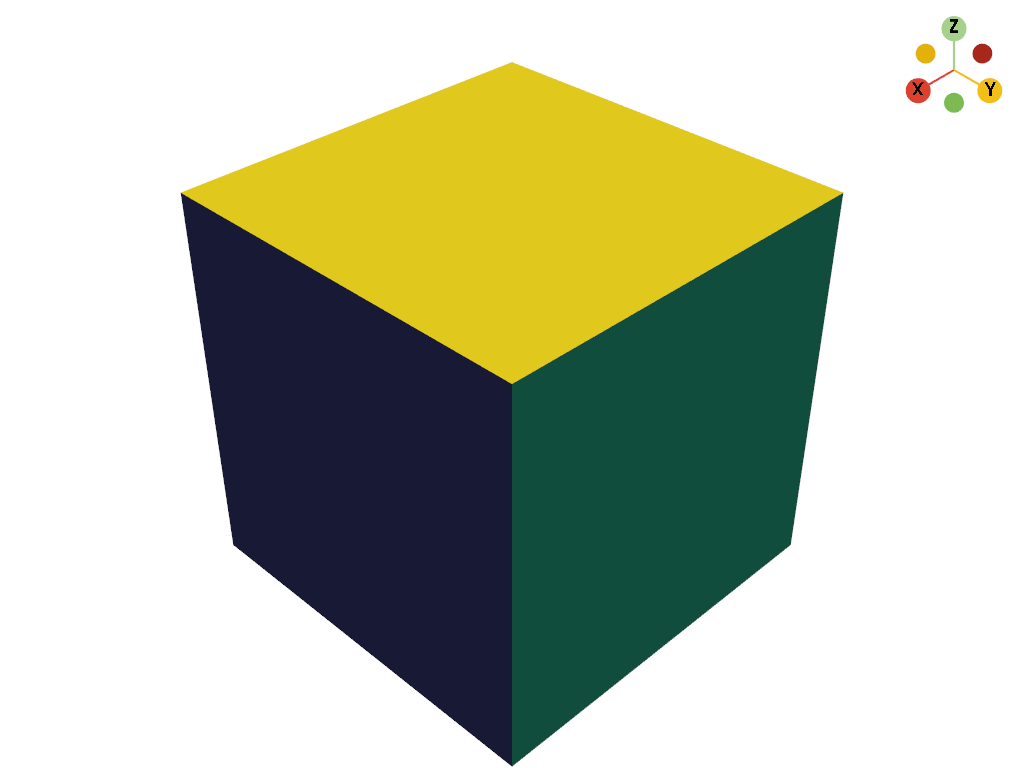

Add a camera orientation widget to the scene.

>>> import pyvista as pv
>>> mesh = pv.Cube()
>>> plotter = pv.Plotter()
>>> _ = plotter.add_mesh(
...     mesh, scalars=range(6), show_scalar_bar=False
... )
>>> _ = plotter.add_camera_orientation_widget()
>>> plotter.show()

Static Scene

Interactive Scene
