pyvista.Plotter.set_color_cycler

Plotter.set_color_cycler(color_cycler, all_renderers: bool = True)

Set or reset the color cycler.

This color cycler is iterated over by each sequential add_mesh() call to set the default color of the dataset being plotted.

When setting, the value must be either a list of color-like objects, or a cycler of color-like objects. If the value passed is a single string, it must be one of:

• 'default' - Use the default color cycler (matches matplotlib’s default)

• 'matplotlib - Dynamically get matplotlib’s current theme’s color cycler.

• 'all' - Cycle through all of the available colors in pyvista.plotting.colors.hexcolors

Setting to None will disable the use of the color cycler on this renderer.

Parameters:

color_cyclerstr | cycler.Cycler | sequence[ColorLike]

The colors to cycle through.

all_renderersbool, default: True

If True, applies to all renderers in subplots. If False, then only applies to the active renderer.

Examples

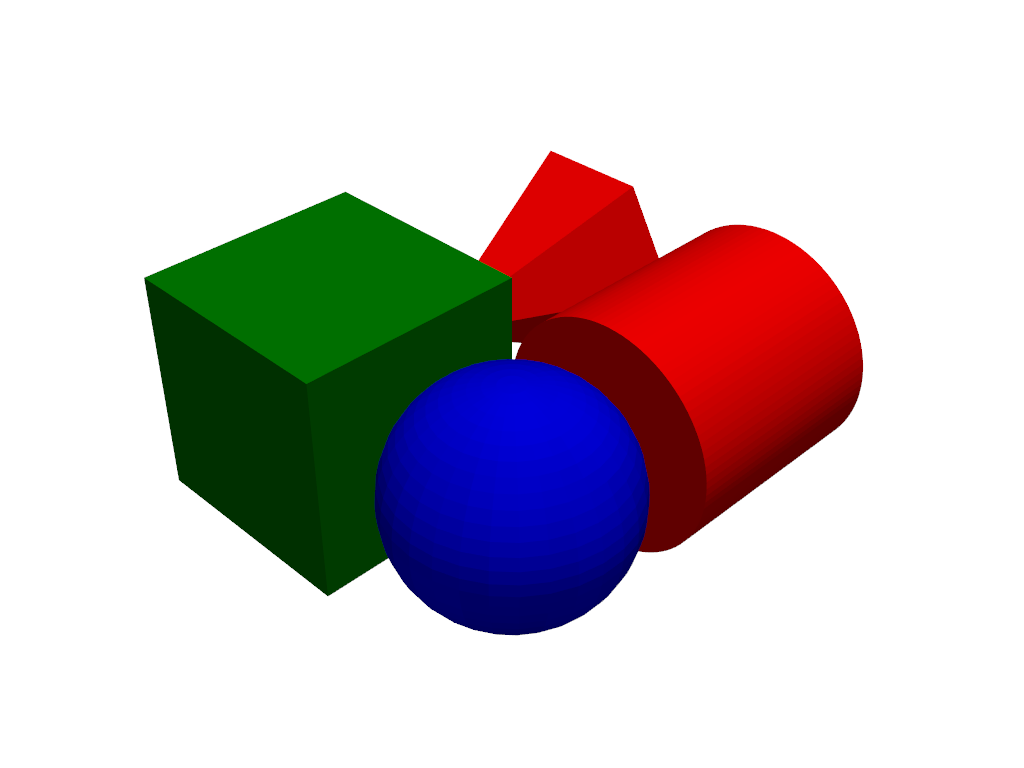

Set the default color cycler to iterate through red, green, and blue.

>>> import pyvista as pv
>>> pl = pv.Plotter()
>>> pl.set_color_cycler(['red', 'green', 'blue'])
>>> _ = pl.add_mesh(pv.Cone(center=(0, 0, 0)))  # red
>>> _ = pl.add_mesh(pv.Cube(center=(1, 0, 0)))  # green
>>> _ = pl.add_mesh(pv.Sphere(center=(1, 1, 0)))  # blue
>>> _ = pl.add_mesh(pv.Cylinder(center=(0, 1, 0)))  # red again
>>> pl.show()

Static Scene

Interactive Scene
