Dashed Lines

Download Python source code | Download Jupyter notebook

Dash a line by splitting its cells with a filter, or by dashing it in the shader.

PyVista offers two ways to dash a line, and they differ in where the dashes come from. dash_lines() is a filter: it cuts the line cells into shorter cells, so the dashes are real geometry. The line_style property instead discards fragments while rendering, so the geometry is untouched.

Both accept the same style strings.

Line styles

Style	Description	Example
""	Hidden
"-"	Solid
"--"	Dashed
":"	Dotted
"-."	Dash-dot
"-.."	Dash-dot-dot

import numpy as np
import pyvista as pv

Build a Helix

A single polyline is enough to show both approaches.

theta = np.linspace(0, 4 * np.pi, 400)
helix = pv.Spline(
    np.column_stack([np.cos(theta), np.sin(theta), np.linspace(-1.5, 1.5, 400)]),
    400,
)
helix

PolyData (0x7f28fcca6f80)
  N Cells:    1
  N Points:   400
  N Strips:   0
  X Bounds:   -1.000e+00, 1.000e+00
  Y Bounds:   -1.000e+00, 1.000e+00
  Z Bounds:   -1.500e+00, 1.500e+00
  N Arrays:   1

PolyData 400 points 1 cells 12 KiB

Bounds⧉X [-1.000e+00, 1.000e+00]Y [-1.000e+00, 1.000e+00]Z [-1.500e+00, 1.500e+00]

Cellslines 1

• Point Data: (1)
  • arc_length⧉
    scalar
    float32
    [0.000e+00, 1.292e+01]

Dash the Geometry With a Filter

dash_lines() returns a new dataset holding only the drawn parts of the line.

pl = pv.Plotter()
pl.add_mesh(helix.dash_lines('--'), color='black', line_width=4)
pl.view_isometric()
pl.show()

Static Scene

Interactive Scene

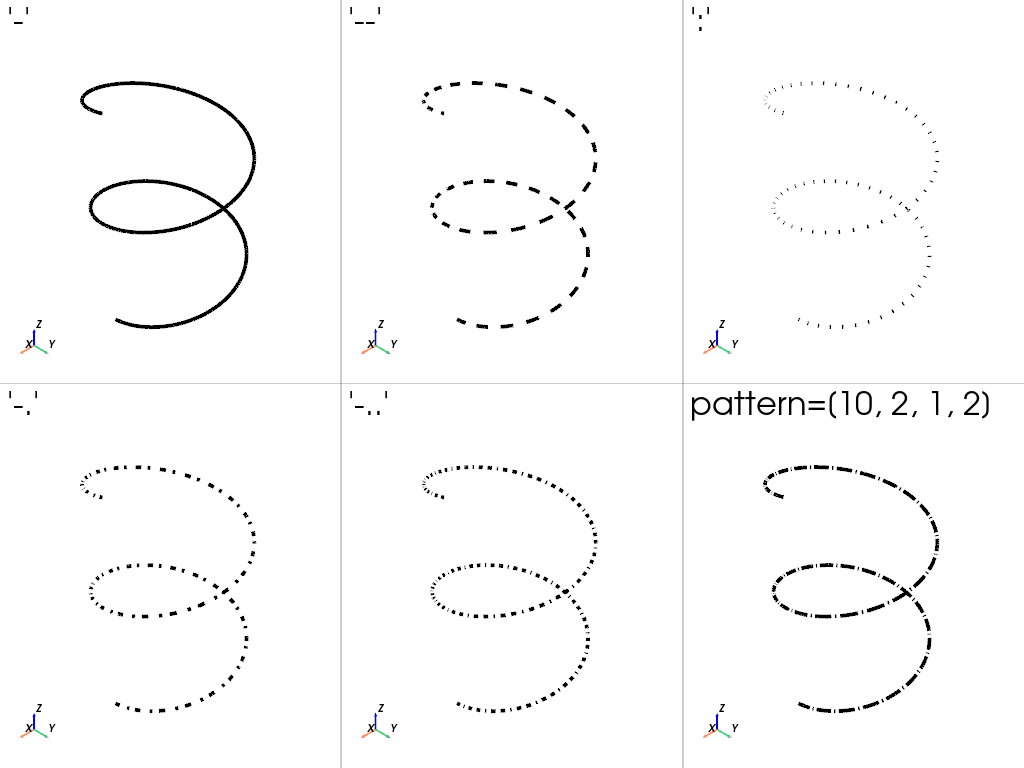

Every named style is available. '-' is solid, so it returns the lines whole. pattern takes lengths of alternating drawn and undrawn intervals instead of a style, so [10, 2, 1, 2] draws ten, skips two, draws one and skips two, then repeats.

styles = ['-', '--', ':', '-.', '-..']
pattern = [10, 2, 1, 2]

dashed = {f"'{style}'": helix.dash_lines(style) for style in styles}
dashed[f'pattern={pattern}'] = helix.dash_lines(pattern=pattern)

pv.plot_compare(dashed, color='black', line_width=4, cpos='iso')

Static Scene

Interactive Scene

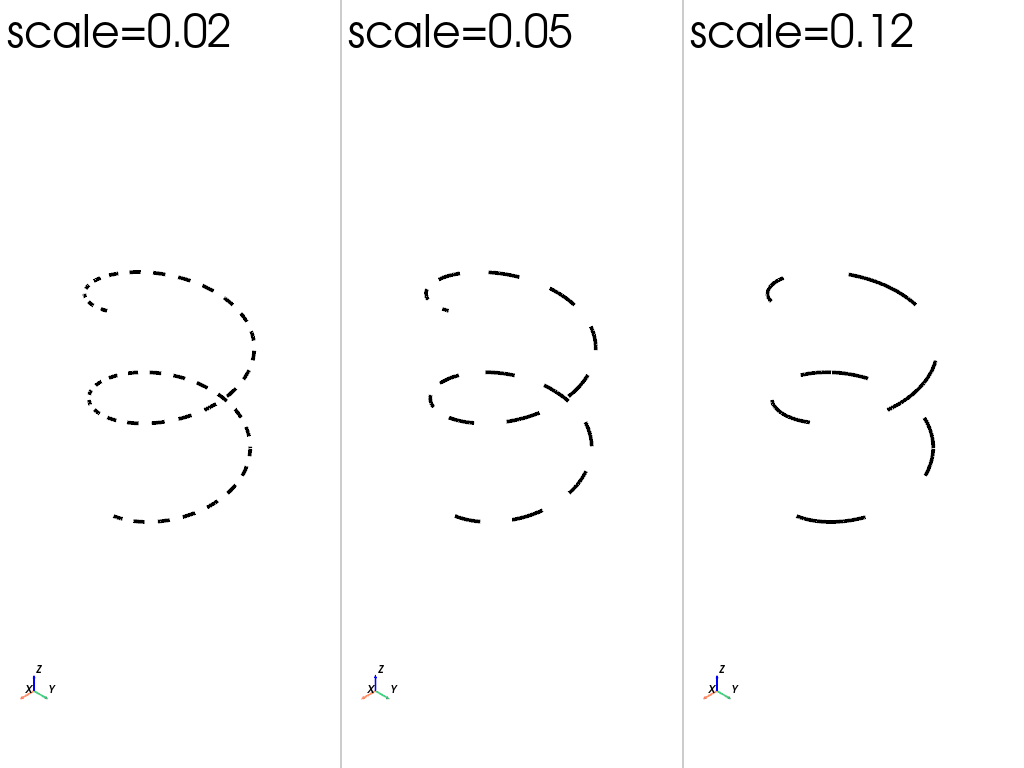

scale sets the length of one pattern interval in world units, so shorter values give finer dashes.

pv.plot_compare(
    {
        f'scale={scale}': helix.dash_lines('--', scale=scale)
        for scale in [0.02, 0.05, 0.12]
    },
    color='black',
    line_width=4,
    cpos='iso',
)

Static Scene

Interactive Scene

Dash the Rendering With a Shader

Passing line_style to add_mesh() dashes the same helix without touching its cells.

pl = pv.Plotter()
pl.add_mesh(helix, color='black', line_width=4, line_style='--')
pl.view_isometric()
pl.show()

Static Scene

Interactive Scene

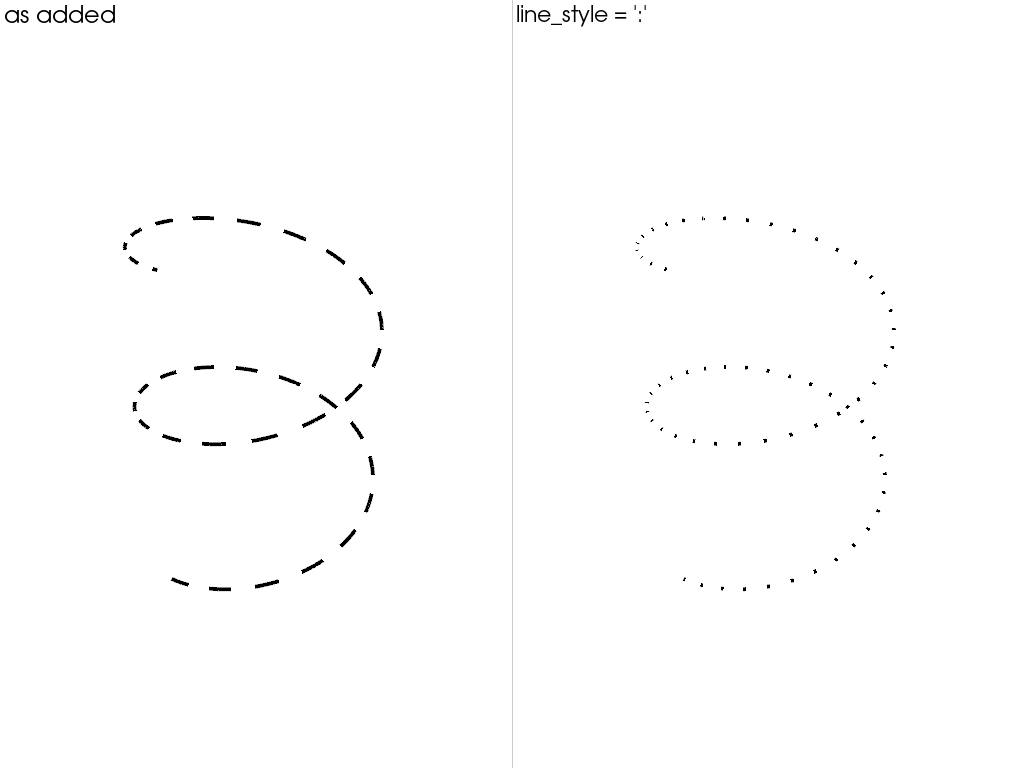

The style belongs to the actor, so line_style changes it after the mesh is added.

pl = pv.Plotter(shape=(1, 2))

pl.subplot(0, 0)
pl.add_mesh(helix, color='black', line_width=4, line_style='--')
pl.add_text('as added', font_size=10)

pl.subplot(0, 1)
actor = pl.add_mesh(helix, color='black', line_width=4, line_style='--')
actor.line_style = ':'
pl.add_text(f'line_style = {actor.line_style!r}', font_size=10)

pl.link_views()
pl.view_isometric()
pl.show()

Static Scene

Interactive Scene

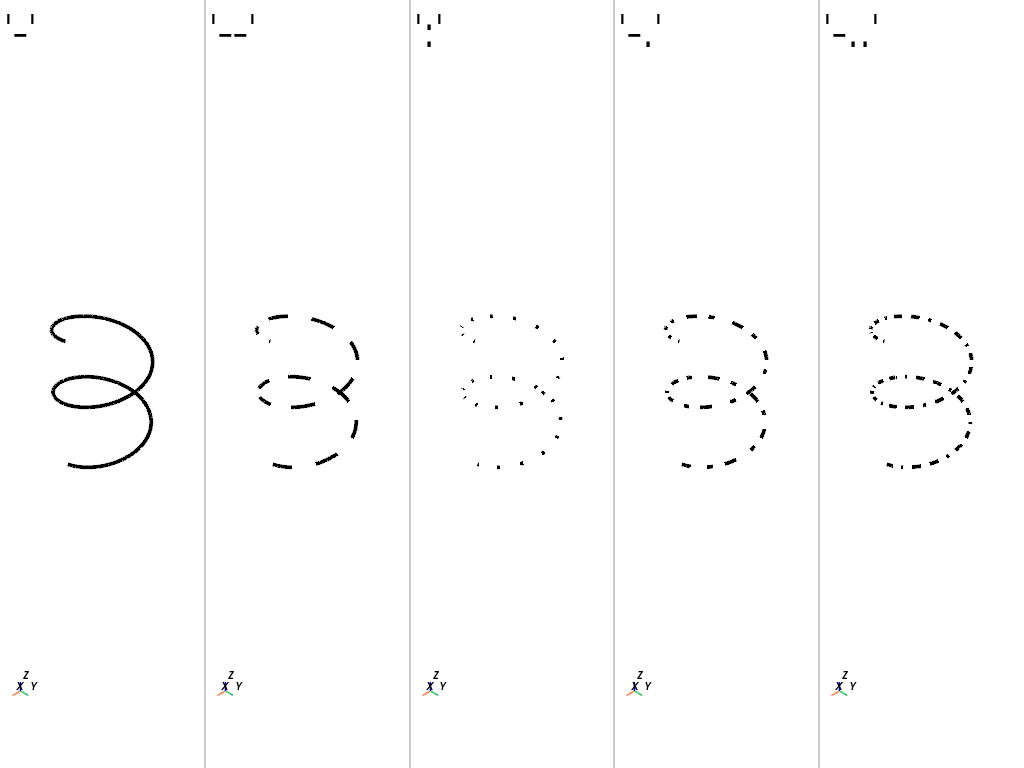

The same named styles apply, but there is no pattern: the shader draws only the named ones.

pv.plot_compare(
    [helix] * len(styles),
    labels=[f"'{style}'" for style in styles],
    line_style=styles,
    color='black',
    line_width=4,
    cpos='iso',
    shape=(1, 5),
)

Static Scene

Interactive Scene

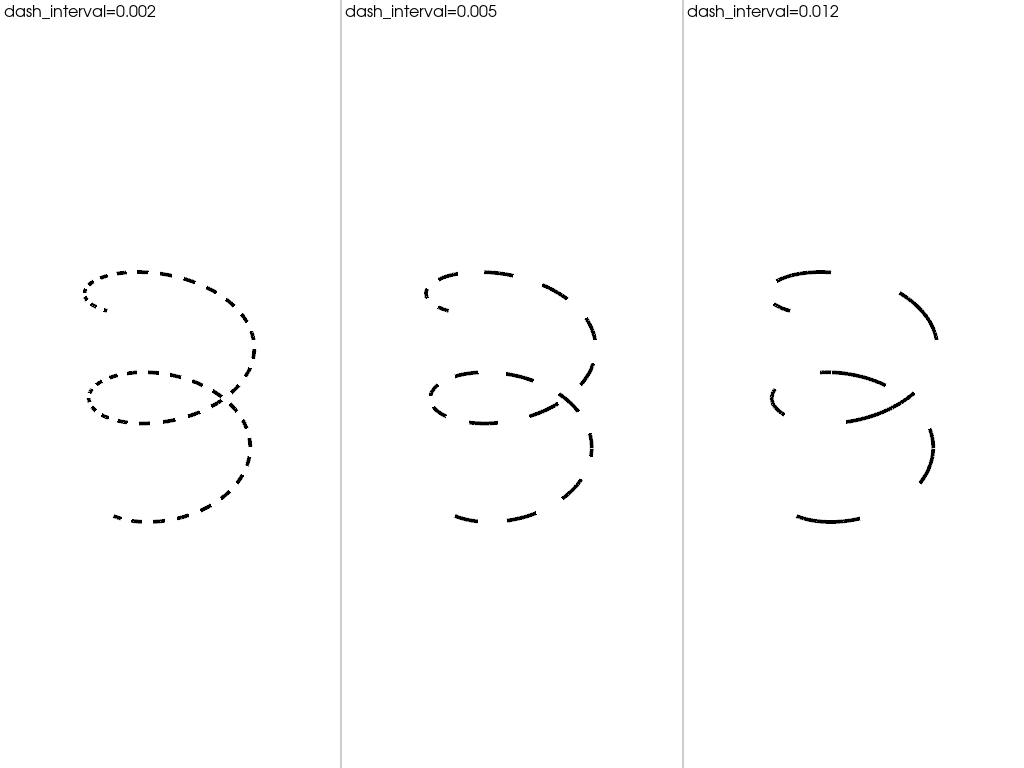

Here the dash length is set on the actor with dash_interval, as a fraction of the window height.

pl = pv.Plotter(shape=(1, 3))
for index, interval in enumerate([0.002, 0.005, 0.012]):
    pl.subplot(0, index)
    actor = pl.add_mesh(helix, color='black', line_width=4, line_style='--')
    actor.dash_interval = interval
    pl.add_text(f'dash_interval={interval}', font_size=10)
pl.link_views()
pl.view_isometric()
pl.show()

Static Scene

Interactive Scene

Comparing the Two

The filter replaces one polyline with many short ones. The shader leaves the cell count alone.

print('input            ', helix.n_cells, 'cell')
print('dash_lines output', helix.dash_lines('--').n_cells, 'cells')

input             1 cell
dash_lines output 40 cells

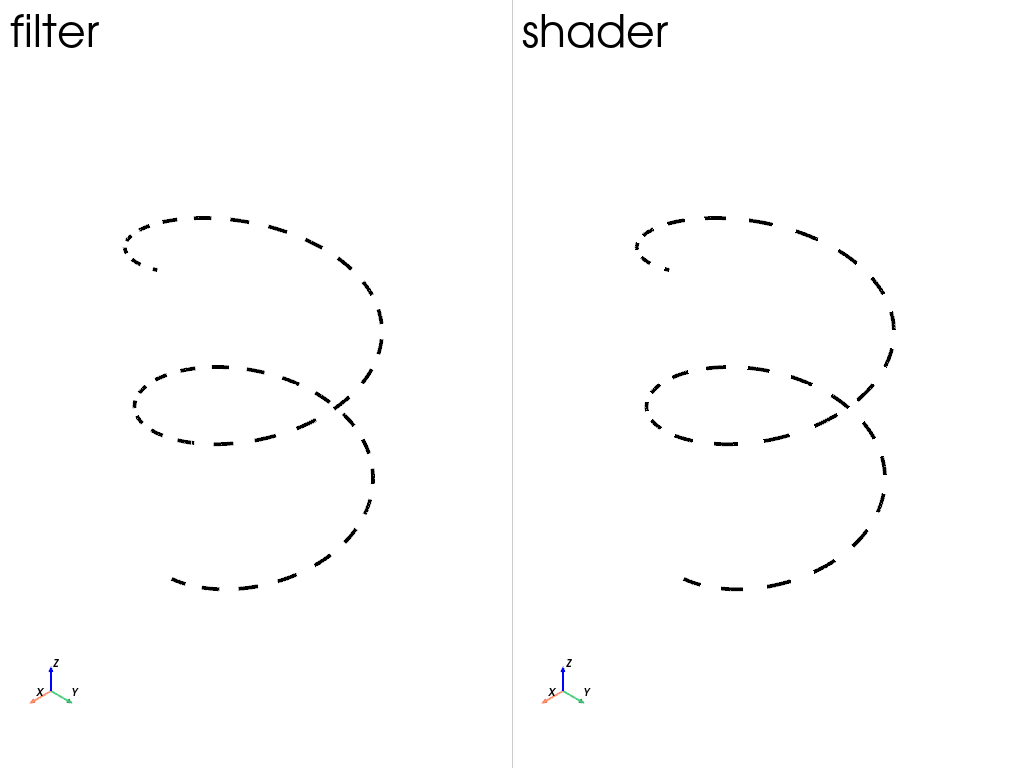

That difference shows up as soon as the camera moves. Filter dashes are fixed in world units, so they grow with the geometry when you zoom in. Shader dashes are measured on screen, so they keep their size.

both = {'filter': helix.dash_lines('--'), 'shader': helix}
options = dict(line_style=[None, '--'], color='black', line_width=4, cpos='iso')

pv.plot_compare(both, **options)

Static Scene

Interactive Scene

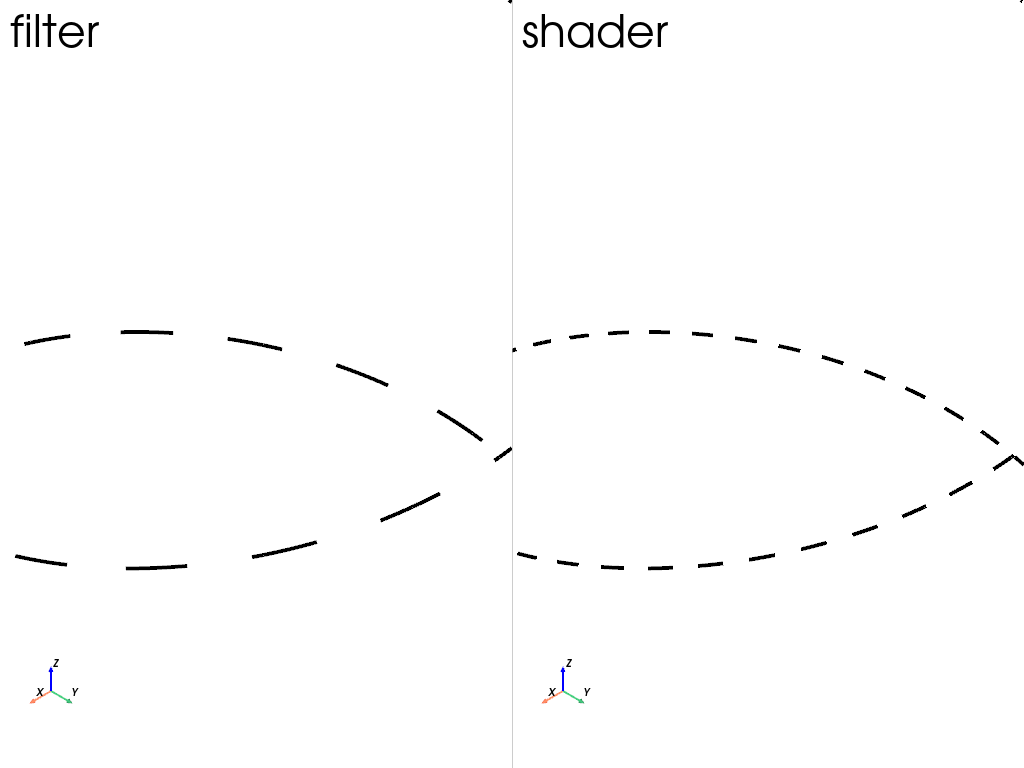

Zoomed in, the filter dashes have grown with the geometry while the shader dashes have kept their size.

pv.plot_compare(both, **options, zoom=3)

Static Scene

Interactive Scene

Only the filter survives being written to a file or exported to the browser, since only it produces real dashed geometry.

Dashing the Edges of a Surface

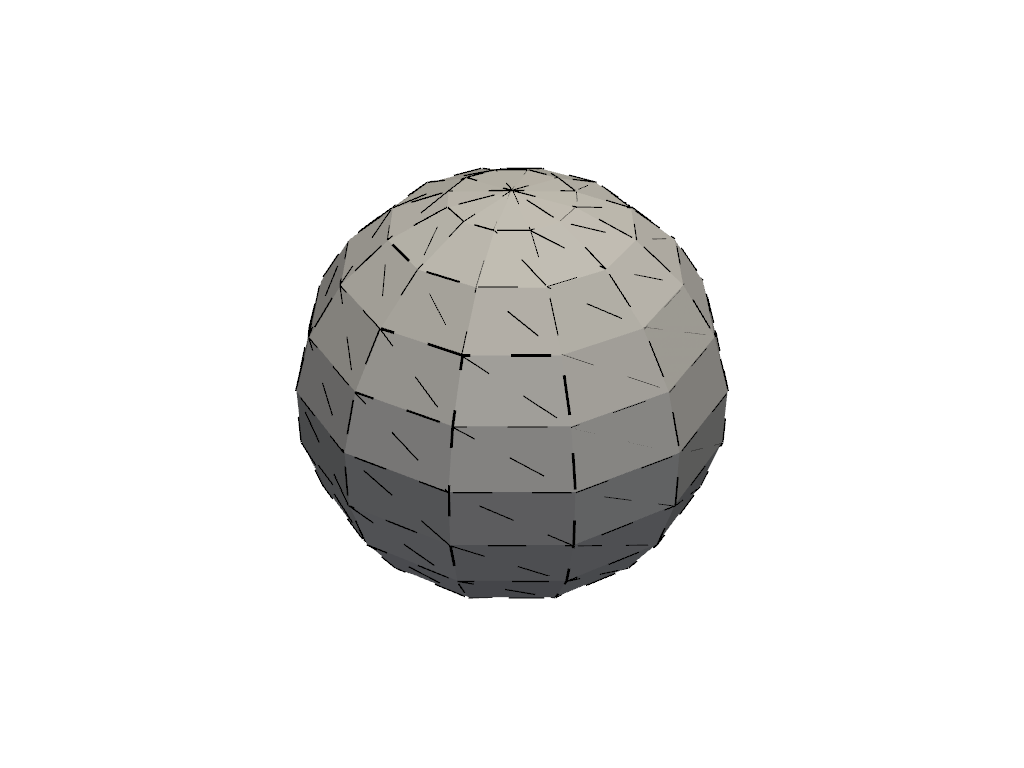

Neither option touches the edges drawn by show_edges=True, which come from the polygons rather than from line cells. Extract the edges first and dash them as their own mesh.

sphere = pv.Sphere(theta_resolution=12, phi_resolution=12)
edges = sphere.extract_all_edges().dash_lines('--', scale=0.01)

pl = pv.Plotter()
pl.add_mesh(sphere, color='lightgray')
pl.add_mesh(edges, color='black', line_width=3)
pl.view_isometric()
pl.show()

Static Scene

Interactive Scene
