pyvista.examples.cells.BiQuadraticQuadraticWedge

pyvista.examples.cells.BiQuadraticQuadraticWedge#

BiQuadraticQuadraticWedge() → UnstructuredGrid[source]#

Create a pyvista.UnstructuredGrid containing a single biquadratic quadratic wedge.

This cell corresponds to the pyvista.CellType.BIQUADRATIC_QUADRATIC_WEDGE cell type.

Returns:
pyvista.UnstructuredGrid

UnstructuredGrid containing a single biquadratic quadratic wedge.

Examples

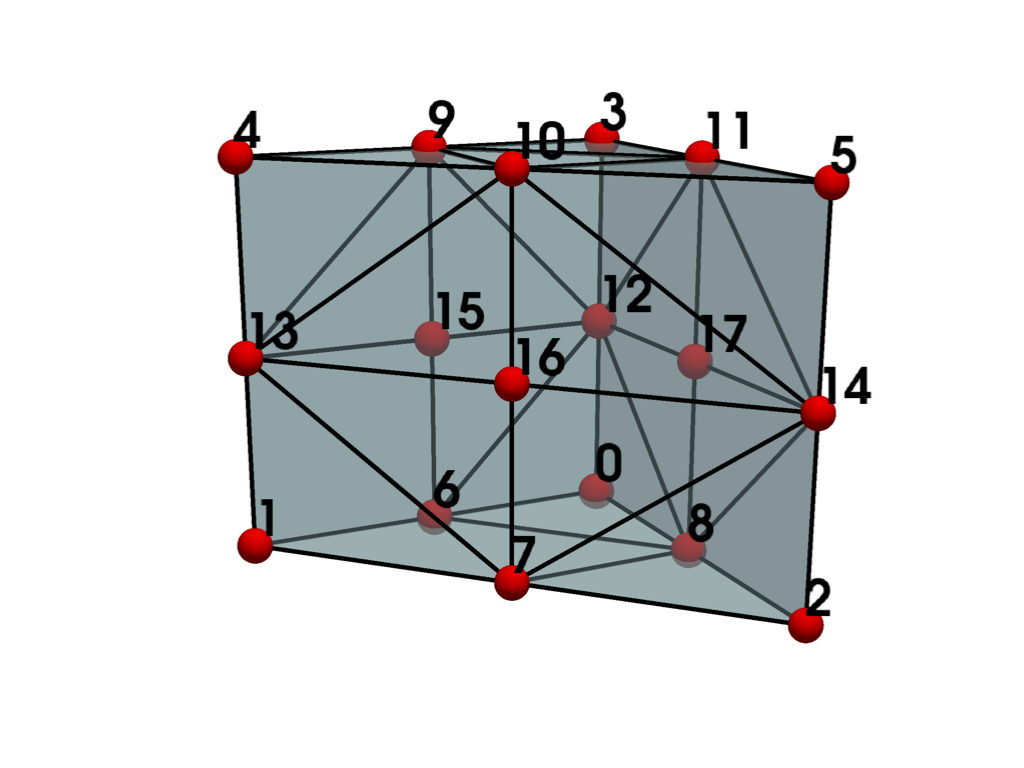

Create and plot a single biquadratic quadratic wedge.

>>> from pyvista import examples
>>> grid = examples.cells.BiQuadraticQuadraticWedge()
>>> examples.plot_cell(grid)

List the grid’s cells.

>>> grid.cells
array([18,  0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15,
       16, 17])

List the grid’s points.

>>> grid.points
pyvista_ndarray([[0. , 0. , 0. ],
                 [1. , 0. , 0. ],
                 [0. , 1. , 0. ],
                 [0. , 0. , 1. ],
                 [1. , 0. , 1. ],
                 [0. , 1. , 1. ],
                 [0.5, 0. , 0. ],
                 [0.5, 0.5, 0. ],
                 [0. , 0.5, 0. ],
                 [0.5, 0. , 1. ],
                 [0.5, 0.5, 1. ],
                 [0. , 0.5, 1. ],
                 [0. , 0. , 0.5],
                 [1. , 0. , 0.5],
                 [0. , 1. , 0.5],
                 [0.5, 0. , 0.5],
                 [0.5, 0.5, 0.5],
                 [0. , 0.5, 0.5]])

>>> grid.celltypes  # same as pyvista.CellType.BIQUADRATIC_QUADRATIC_WEDGE
array([32], dtype=uint8)
../../../_images/pyvista-examples-cells-BiQuadraticQuadraticWedge-1_00_00.png
