pyvista.examples.cells.QuadraticLinearWedge

QuadraticLinearWedge() → UnstructuredGrid

Create a pyvista.UnstructuredGrid containing a single quadratic linear wedge.

This cell corresponds to the pyvista.CellType.QUADRATIC_LINEAR_WEDGE cell type.

Returns:

pyvista.UnstructuredGrid

UnstructuredGrid containing a single quadratic linear wedge.

Examples

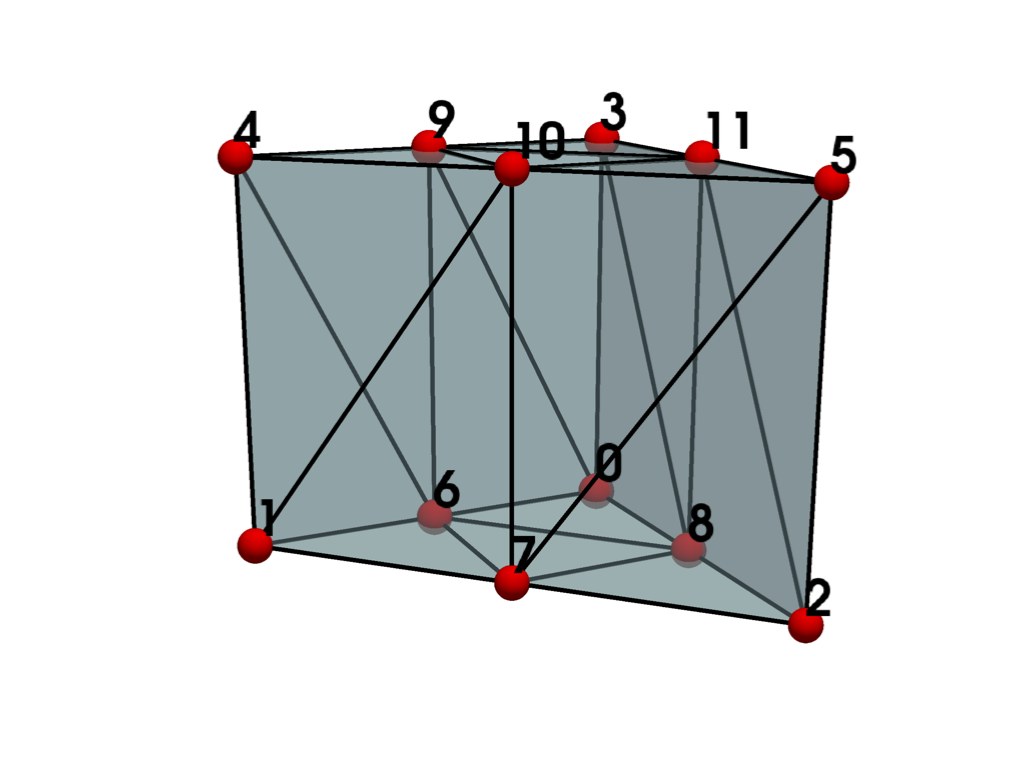

Create and plot a single quadratic linear wedge.

>>> from pyvista import examples
>>> grid = examples.cells.QuadraticLinearWedge()
>>> examples.plot_cell(grid)

List the grid’s cells.

>>> grid.cells
array([12,  0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11])

List the grid’s points.

>>> grid.points
pyvista_ndarray([[0. , 0. , 0. ],
                 [1. , 0. , 0. ],
                 [0. , 1. , 0. ],
                 [0. , 0. , 1. ],
                 [1. , 0. , 1. ],
                 [0. , 1. , 1. ],
                 [0.5, 0. , 0. ],
                 [0.5, 0.5, 0. ],
                 [0. , 0.5, 0. ],
                 [0.5, 0. , 1. ],
                 [0.5, 0.5, 1. ],
                 [0. , 0.5, 1. ]])

>>> grid.celltypes  # same as pyvista.CellType.QUADRATIC_LINEAR_WEDGE
array([31], dtype=uint8)

Static Scene

Interactive Scene
