pyvista.examples.cells.BiQuadraticQuadrilateral

pyvista.examples.cells.BiQuadraticQuadrilateral#

BiQuadraticQuadrilateral() UnstructuredGrid[source]#

Create a pyvista.UnstructuredGrid containing a single biquadratic quadrilateral.

This cell corresponds to the pyvista.CellType.BIQUADRATIC_QUAD cell type.

Returns:
pyvista.UnstructuredGrid

UnstructuredGrid containing a single biquadratic quadrilateral.

Examples

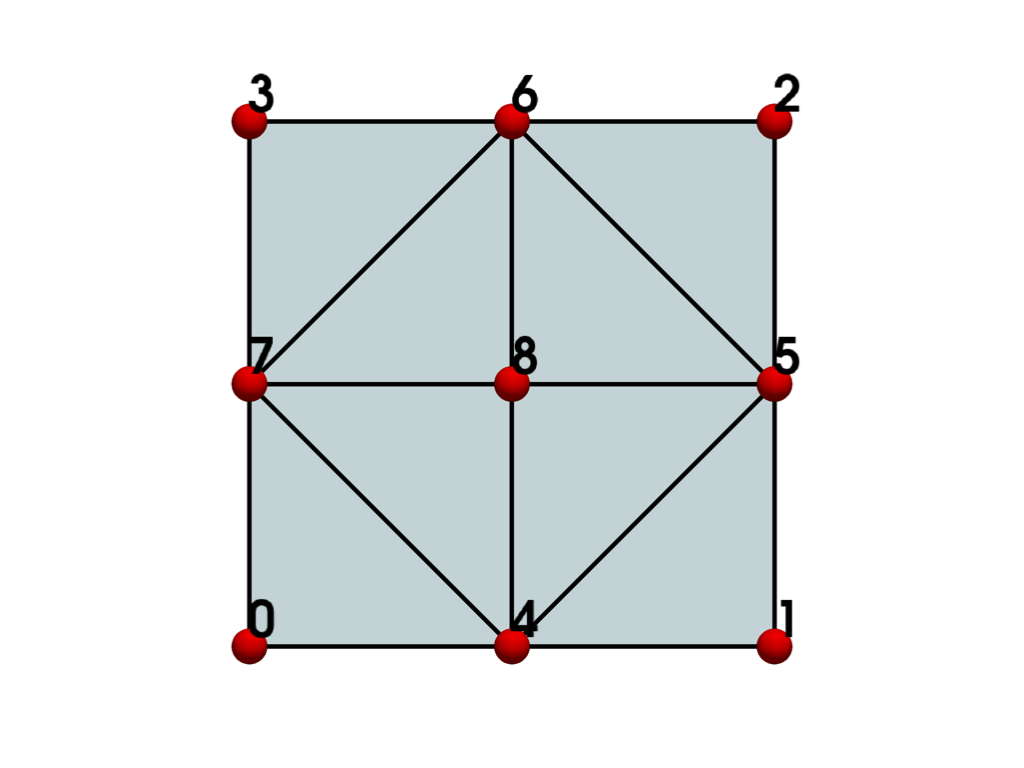

Create and plot a single biquadratic quadrilateral.

>>> from pyvista import examples
>>> grid = examples.cells.BiQuadraticQuadrilateral()
>>> examples.plot_cell(grid, cpos='xy')

List the grid’s cells.

>>> grid.cells
array([9, 0, 1, 2, 3, 4, 5, 6, 7, 8])

List the grid’s points.

>>> grid.points
pyvista_ndarray([[0. , 0. , 0. ],
                 [1. , 0. , 0. ],
                 [1. , 1. , 0. ],
                 [0. , 1. , 0. ],
                 [0.5, 0. , 0. ],
                 [1. , 0.5, 0. ],
                 [0.5, 1. , 0. ],
                 [0. , 0.5, 0. ],
                 [0.5, 0.5, 0. ]])
>>> grid.celltypes  # same as pyvista.CellType.BIQUADRATIC_QUAD
array([28], dtype=uint8)
../../../_images/pyvista-examples-cells-BiQuadraticQuadrilateral-1_00_00.png
