pyvista.PolygonSource

class PolygonSource(

center: VectorLike[float] = (0.0, 0.0, 0.0),

radius: float = 1.0,

normal: VectorLike[float] = (0.0, 0.0, 1.0),

n_sides: int = 6,

fill: bool = True,

)

Polygon source algorithm class.

Added in version 0.44.0.

Parameters:

centersequence[float], default: (0.0, 0.0, 0.0)

Center in [x, y, z]. Central axis of the polygon passes through this point.

radiusfloat, default: 1.0

The radius of the polygon.

normalsequence[float], default: (0.0, 0.0, 1.0)

Direction vector in [x, y, z]. Orientation vector of the polygon.

n_sidesint, default: 6

Number of sides of the polygon.

fillbool, default: True

Enable or disable producing filled polygons.

Examples

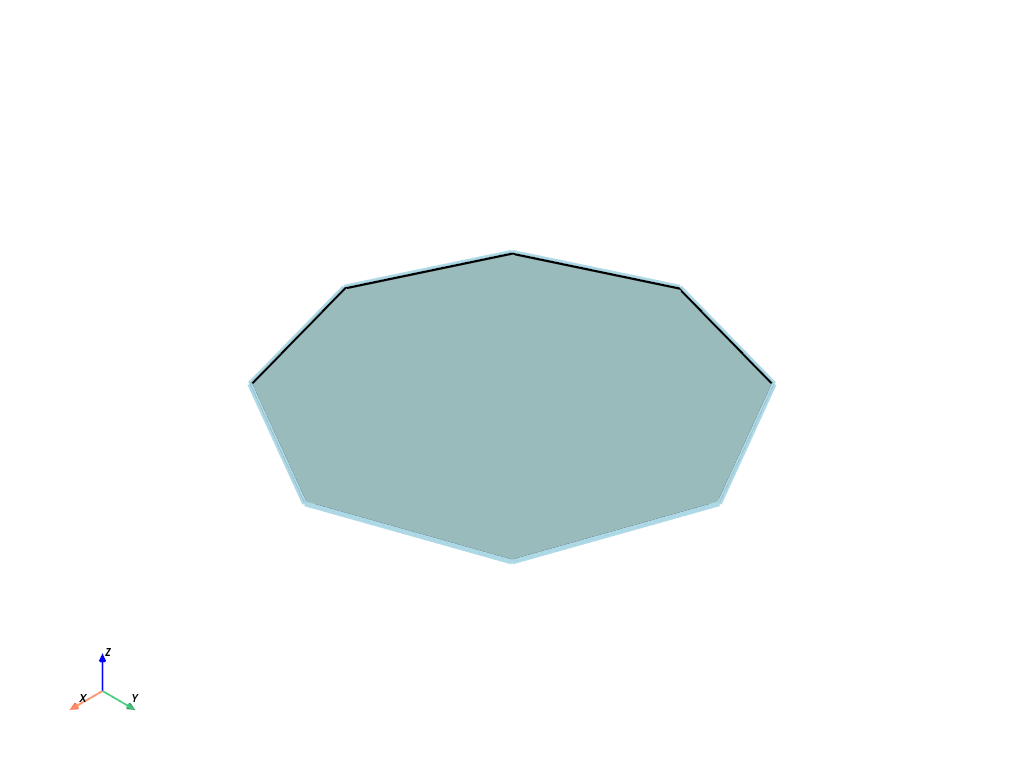

Create an 8 sided polygon.

>>> import pyvista as pv
>>> source = pv.PolygonSource(n_sides=8)
>>> source.output.plot(show_edges=True, line_width=5)

Static Scene

Interactive Scene

Methods

Attributes

PolygonSource.center	Get the center in [x, y, z].
PolygonSource.fill	Get enable or disable producing filled polygons.
PolygonSource.n_sides	Get number of sides of the polygon.
PolygonSource.normal	Get the normal in [x, y, z].
PolygonSource.output	Get the output data object for a port on this algorithm.
PolygonSource.radius	Get the radius of the polygon.
