pyvista.ParametricSuperEllipsoid

ParametricSuperEllipsoid(

xradius: float | None = None,

yradius: float | None = None,

zradius: float | None = None,

n1: float | None = None,

n2: float | None = None,

**kwargs,

) → PolyData

Generate a superellipsoid.

ParametricSuperEllipsoid generates a superellipsoid. A superellipsoid is a versatile primitive that is controlled by two parameters n1 and n2. As special cases it can represent a sphere, square box, and closed cylindrical can.

Parameters:

xradiusfloat, default: 1

The scaling factor for the x-axis.

yradiusfloat, default: 1

The scaling factor for the y-axis.

zradiusfloat, default: 1

The scaling factor for the z-axis.

n1float, default: 1

The “squareness” parameter in the z-axis.

n2float, default: 1

The “squareness” parameter in the x-y plane.

**kwargsdict, optional

See surface_from_para() for additional keyword arguments.

Returns:

pyvista.PolyData

ParametricSuperEllipsoid surface.

See also

pyvista.ParametricSuperToroid

Toroidal equivalent of ParametricSuperEllipsoid.

pyvista.Superquadric

Geometric object with additional parameters.

Examples

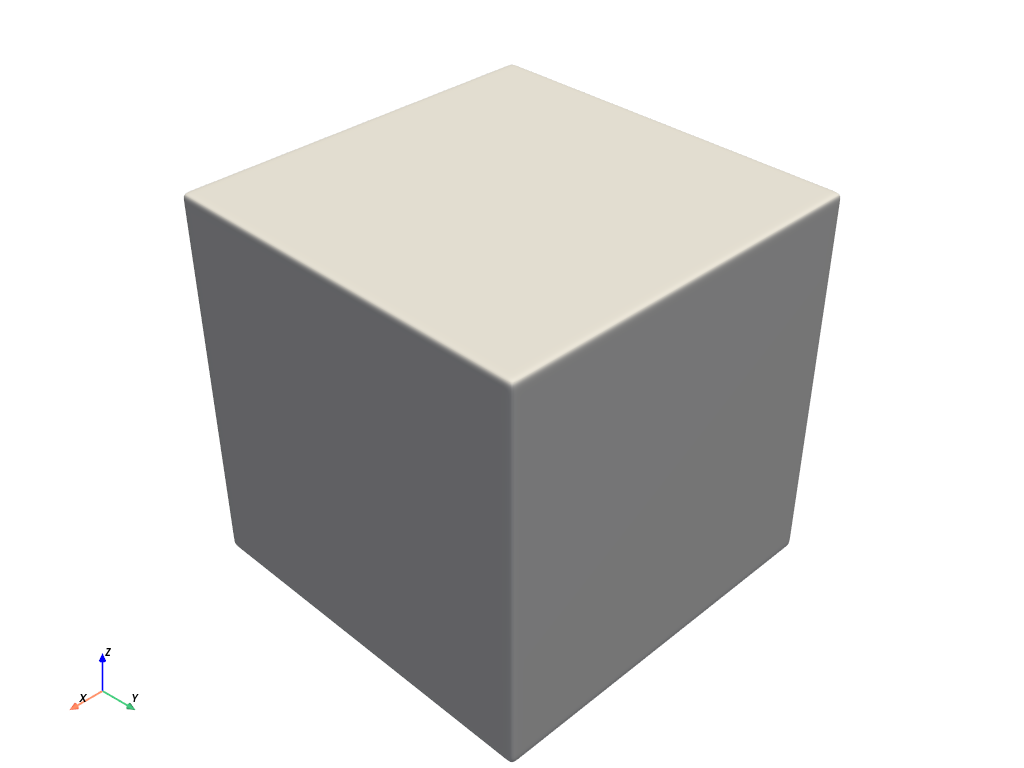

Create a ParametricSuperEllipsoid surface that looks like a box with smooth edges.

>>> import pyvista as pv
>>> mesh = pv.ParametricSuperEllipsoid(n1=0.02, n2=0.02)
>>> mesh.plot(color='w', smooth_shading=True)

Static Scene

Interactive Scene

Create one that looks like a spinning top.

>>> mesh = pv.ParametricSuperEllipsoid(n1=4, n2=0.5)
>>> mesh.plot(color='w', smooth_shading=True, cpos='xz')

Static Scene

Interactive Scene
