pyvista.CylinderStructured

CylinderStructured(

radius: float = 0.5,

height: float = 1.0,

center: VectorLike[float] = (0.0, 0.0, 0.0),

direction: VectorLike[float] = (1.0, 0.0, 0.0),

theta_resolution: int = 32,

z_resolution: int = 10,

) → StructuredGrid

Create a cylinder mesh as a pyvista.StructuredGrid.

The end caps are left open. This can create a surface mesh if a single value for the radius is given or a 3D mesh if multiple radii are given as a list/array in the radius argument.

Parameters:

radiusfloat | sequence[float], default: 0.5

Radius of the cylinder. If a sequence, then describes the radial coordinates of the cells as a range of values as specified by the radius.

heightfloat, default: 1.0

Height of the cylinder along its Z-axis.

centersequence[float], default: (0.0, 0.0, 0.0)

Location of the centroid in [x, y, z].

directionsequence[float], default: (1.0, 0.0, 0.0)

Direction cylinder Z-axis in [x, y, z].

theta_resolutionint, default: 32

Number of points on the circular face of the cylinder. Ignored if radius is an iterable.

z_resolutionint, default: 10

Number of points along the height (Z-axis) of the cylinder.

Returns:

pyvista.StructuredGrid

Structured cylinder.

Notes

Changed in version 0.38.0: Prior to version 0.38, this method had incorrect results, producing inconsistent number of points on the circular face of the cylinder.

Examples

Default structured cylinder

>>> import pyvista as pv
>>> mesh = pv.CylinderStructured()
>>> mesh.plot(show_edges=True)

Static Scene

Interactive Scene

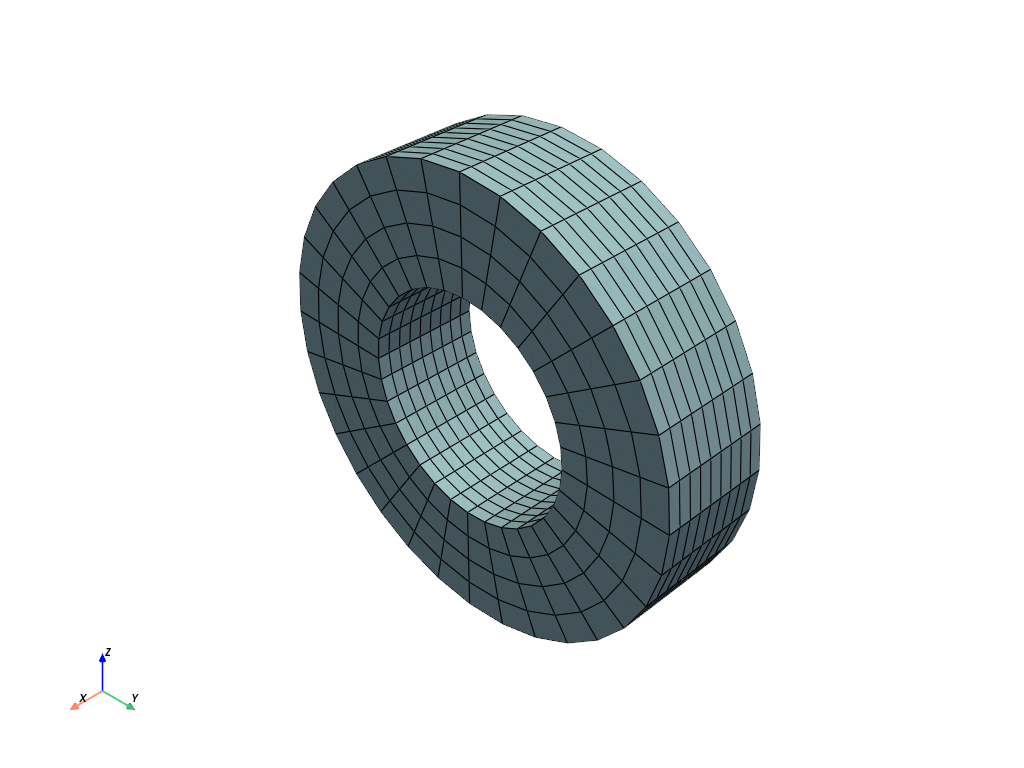

Structured cylinder with an inner radius of 1, outer of 2, with 5 segments.

>>> import numpy as np
>>> mesh = pv.CylinderStructured(radius=np.linspace(1, 2, 5))
>>> mesh.plot(show_edges=True)

Static Scene

Interactive Scene
