Property.point_size

property Property.point_size: float

Return or set the point size.

Defaults to pyvista.plotting.themes.Theme.point_size.

This requires that the style be set to 'points'.

Property has range [0.0, inf). The size is expressed in screen units, so larger values draw larger points.

Examples

Download Python source code | Download Jupyter notebook

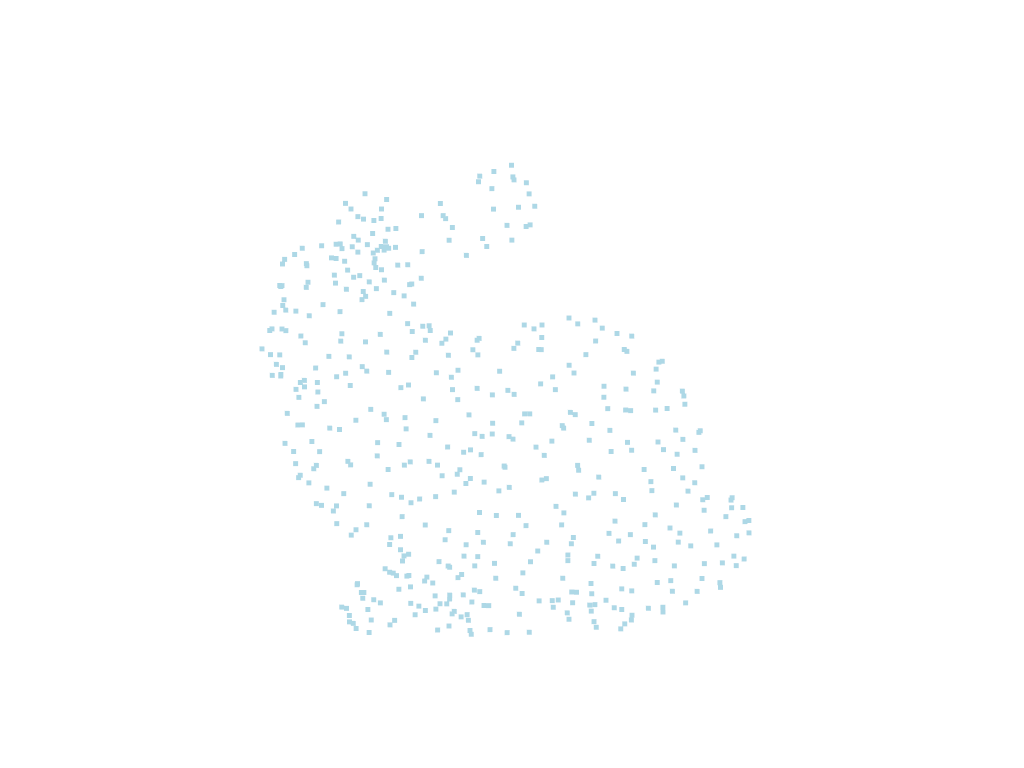

Get the default point size and visualize it.

>>> import pyvista as pv
>>> prop = pv.Property()
>>> prop.point_size
5.0
>>> prop.style = 'points'
>>> prop.plot()

Static Scene

Interactive Scene

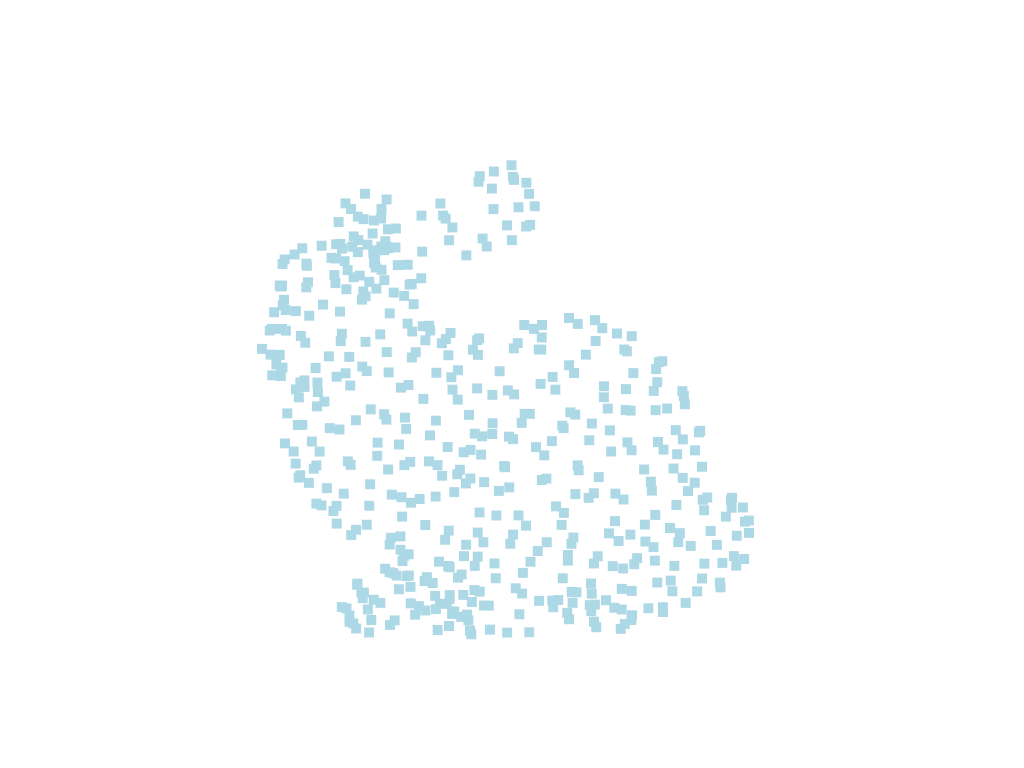

Visualize a point size of 10.0.

>>> prop.point_size = 10.0
>>> prop.plot()

Static Scene

Interactive Scene

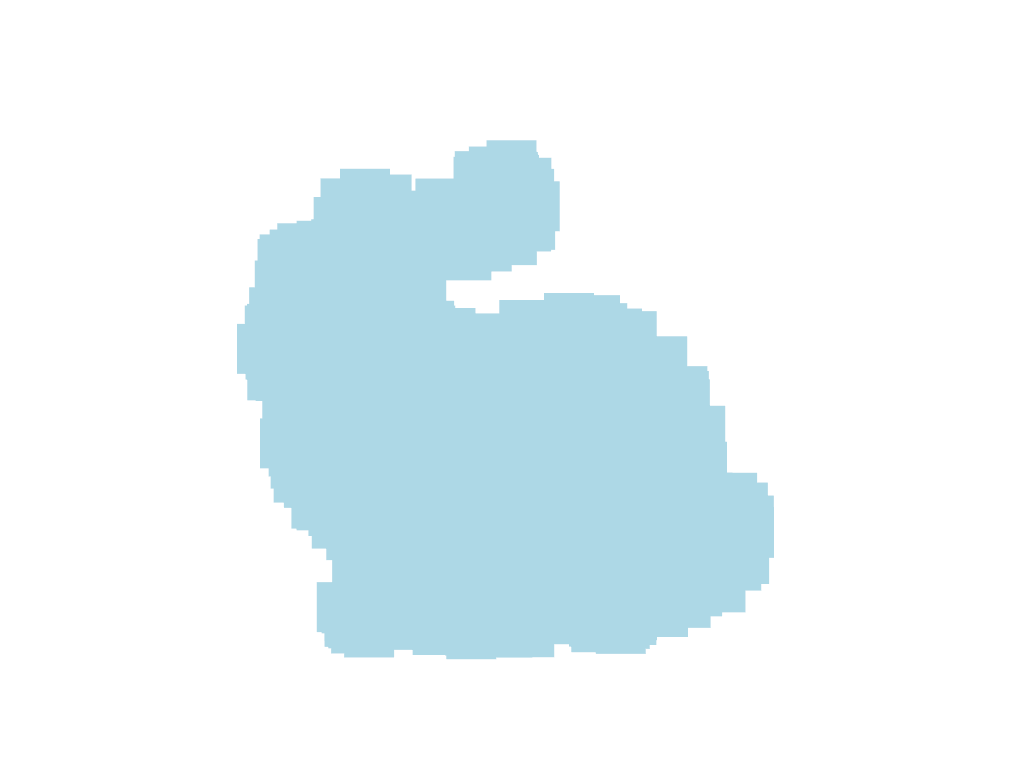

Visualize a point size of 50.0.

>>> prop.point_size = 50.0
>>> prop.plot()

Static Scene

Interactive Scene
