Property.metallic

property Property.metallic: float

Return or set metallic.

Default pyvista.plotting.themes._LightingConfig.metallic.

This requires that the interpolation be set to 'Physically based rendering'.

Property has range [0.0, 1.0]. A value of 0.0 is a non-metal such as plastic and 1.0 is a bare metal.

Examples

Download Python source code | Download Jupyter notebook

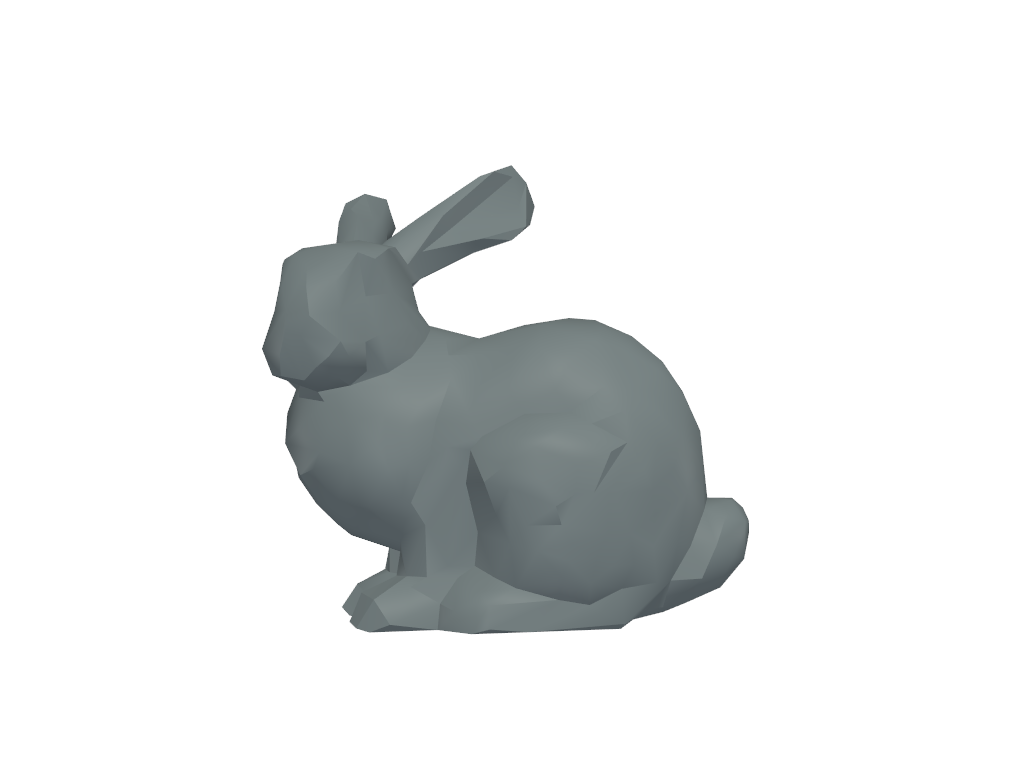

Get the default metallic value.

>>> import pyvista as pv
>>> prop = pv.Property()
>>> prop.metallic
0.0

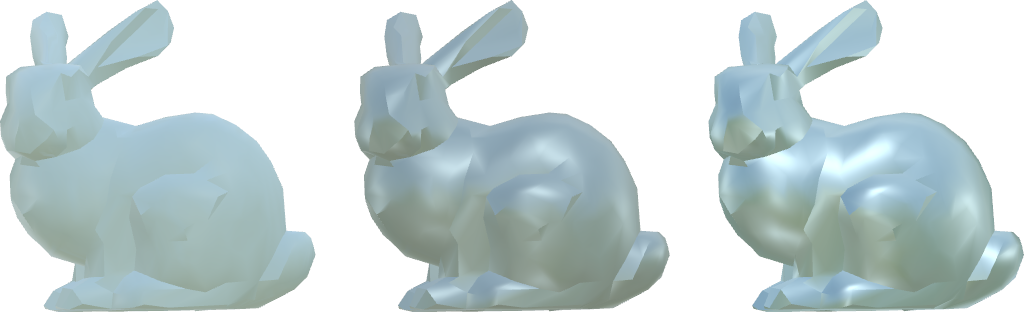

Visualize metallic at 0.0, 0.5, and 1.0 from left to right with physically based rendering.

>>> from pyvista import examples
>>> mesh = examples.download_bunny_coarse()
>>> pl = pv.Plotter()
>>> for i, metallic in enumerate([0.0, 0.5, 1.0]):
...     actor = pl.add_mesh(mesh.translate((0.35 * i, 0, 0)))
...     actor.prop.interpolation = 'pbr'  # required
...     actor.prop.metallic = metallic
>>> pl.set_environment_texture(examples.download_sky_box_cube_map())
>>> pl.camera_position = 'xy'
>>> pl.camera.zoom('tight')
>>> pl.show()

Static Scene

Interactive Scene
