Icosahedron

Icosahedron(

radius: float = 1.0,

center: VectorLike[float] = (0.0, 0.0, 0.0),

) → PolyData

Create an icosahedron of a given size.

An icosahedron is composed of twenty congruent equilateral triangles.

Parameters:

radiusfloat, default: 1.0

The radius of the circumscribed sphere for the icosahedron.

centersequence[float], default: (0.0, 0.0, 0.0)

Three-length sequence defining the center of the icosahedron.

Returns:

pyvista.PolyData

Mesh for the icosahedron. Cell scalars are defined that assign integer labels to each face (with array name "FaceIndex").

Examples

Download Python source code | Download Jupyter notebook

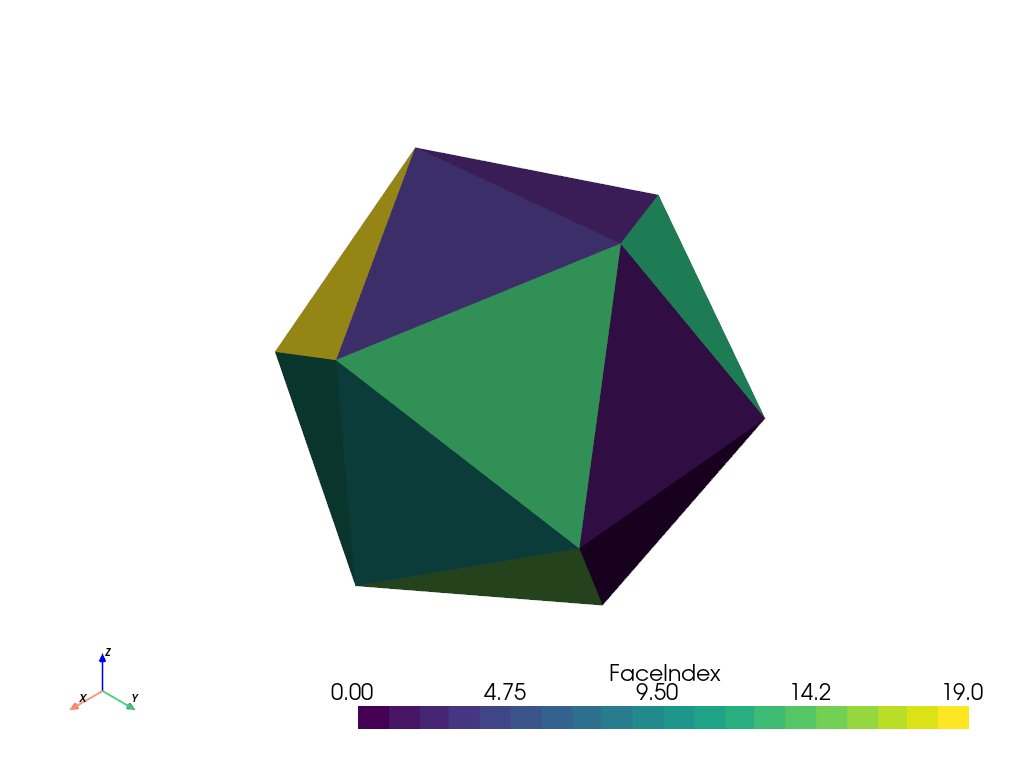

Create and plot an icosahedron.

>>> import pyvista as pv
>>> tetra = pv.Icosahedron()
>>> tetra.plot(categories=True)

Static Scene

Interactive Scene

See Platonic Solids for more examples using this filter.

Used In

Docstring Examples

• Icosphere (1 use)
