LookupTable.annotations

property LookupTable.annotations: dict[float, str]

Return or set annotations.

Pass a dictionary of annotations. Keys are the float values in the scalars range to annotate on the scalar bar and the values are the string annotations.

Examples

Download Python source code | Download Jupyter notebook

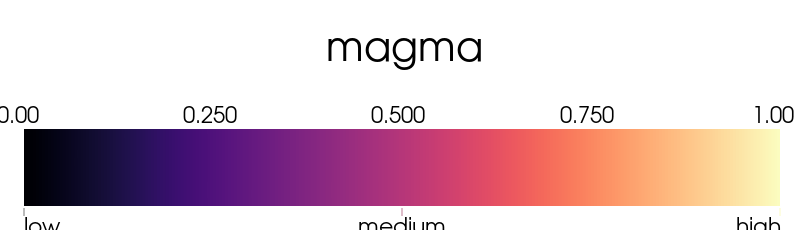

Assign annotations to the lookup table.

>>> import pyvista as pv
>>> lut = pv.LookupTable('magma')
>>> lut.annotations = {0: 'low', 0.5: 'medium', 1: 'high'}
>>> lut.plot()

Static Scene

Interactive Scene
