Octahedron

Octahedron(radius: float = 1.0, center: VectorLike[float] = (0.0, 0.0, 0.0)) → PolyData

Create an octahedron of a given size.

An octahedron is composed of eight congruent equilateral triangles.

Parameters:

radiusfloat, default: 1.0

The radius of the circumscribed sphere for the octahedron.

centersequence[float], default: (0.0, 0.0, 0.0)

Three-length sequence defining the center of the octahedron.

Returns:

pyvista.PolyData

Mesh for the octahedron. Cell scalars are defined that assign integer labels to each face (with array name "FaceIndex").

Examples

Download Python source code | Download Jupyter notebook

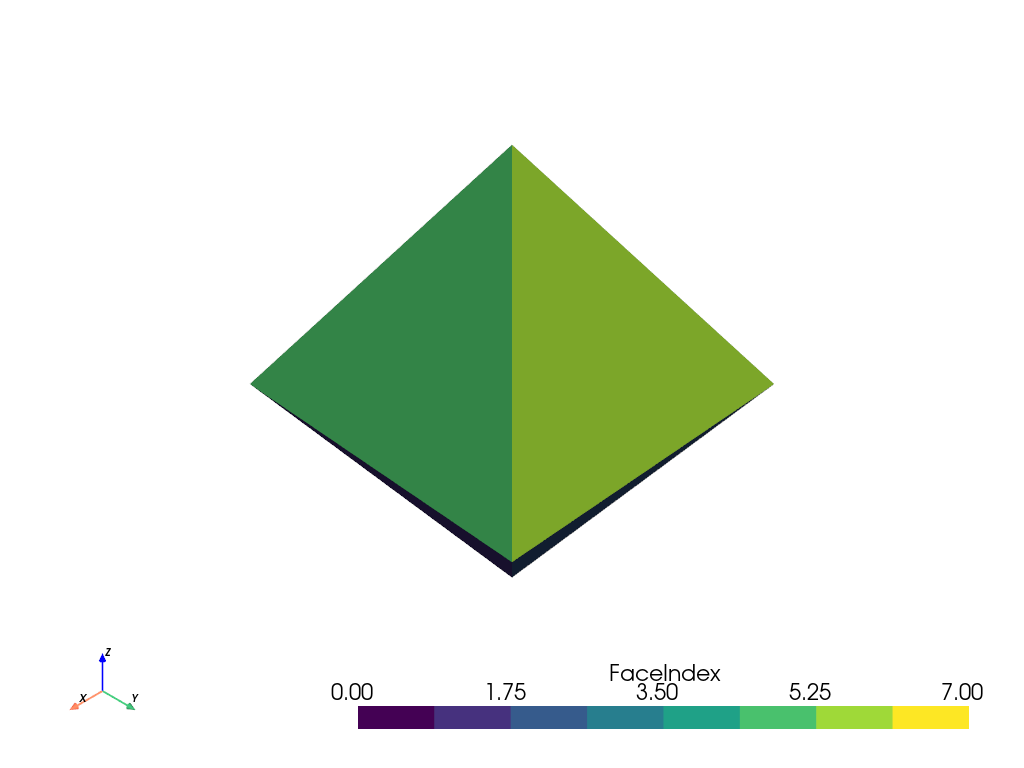

Create and plot an octahedron.

>>> import pyvista as pv
>>> tetra = pv.Octahedron()
>>> tetra.plot(categories=True)

Static Scene

Interactive Scene

See Platonic Solids for more examples using this filter.
