pyvista.Renderer.add_axes

Renderer.add_axes(

interactive=None,

line_width=2,

color=None,

x_color=None,

y_color=None,

z_color=None,

xlabel='X',

ylabel='Y',

zlabel='Z',

labels_off=False,

box=None,

box_args=None,

viewport=(0, 0, 0.2, 0.2),

**kwargs,

)

Add an interactive axes widget in the bottom left corner.

Parameters:

interactivebool, optional

Enable this orientation widget to be moved by the user.

line_widthint, default: 2

The width of the marker lines.

colorColorLike, optional

Color of the labels.

x_colorColorLike, optional

Color used for the x-axis arrow. Defaults to theme axes parameters.

y_colorColorLike, optional

Color used for the y-axis arrow. Defaults to theme axes parameters.

z_colorColorLike, optional

Color used for the z-axis arrow. Defaults to theme axes parameters.

xlabelstr, default: “X”

Text used for the x-axis.

ylabelstr, default: “Y”

Text used for the y-axis.

zlabelstr, default: “Z”

Text used for the z-axis.

labels_offbool, default: False

Enable or disable the text labels for the axes.

boxbool, optional

Show a box orientation marker. Use box_args to adjust. See pyvista.create_axes_orientation_box() for details.

Deprecated since version 0.43.0: The is deprecated. Use add_box_axes method instead.

box_argsdict, optional

Parameters for the orientation box widget when box=True. See the parameters of pyvista.create_axes_orientation_box().

viewportsequence[float], default: (0, 0, 0.2, 0.2)

Viewport (xstart, ystart, xend, yend) of the widget.

**kwargsdict, optional

Used for passing parameters for the orientation marker widget. See the parameters of pyvista.create_axes_marker().

Returns:

AxesActor

Axes actor of the added widget.

See also

show_axes

Similar method which calls add_axes() without any parameters.

add_axes_at_origin

Add an pyvista.AxesActor to the origin of a scene.

Examples

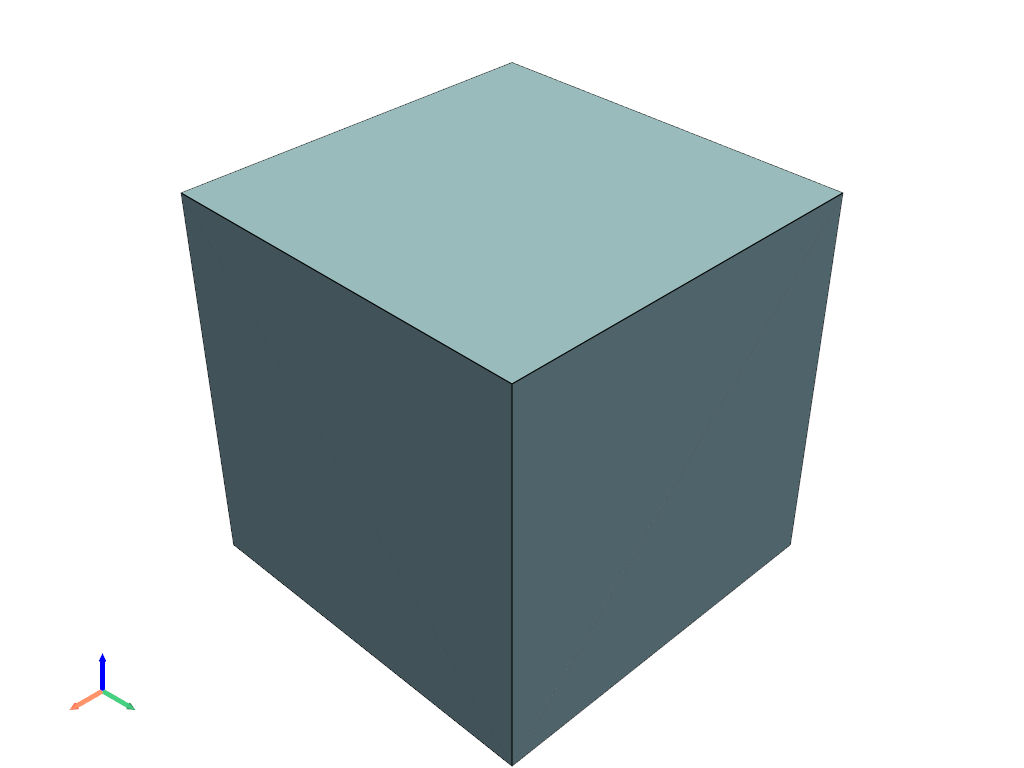

Show axes without labels and with thick lines.

>>> import pyvista as pv
>>> pl = pv.Plotter()
>>> actor = pl.add_mesh(pv.Box(), show_edges=True)
>>> _ = pl.add_axes(line_width=5, labels_off=True)
>>> pl.show()

Static Scene

Interactive Scene

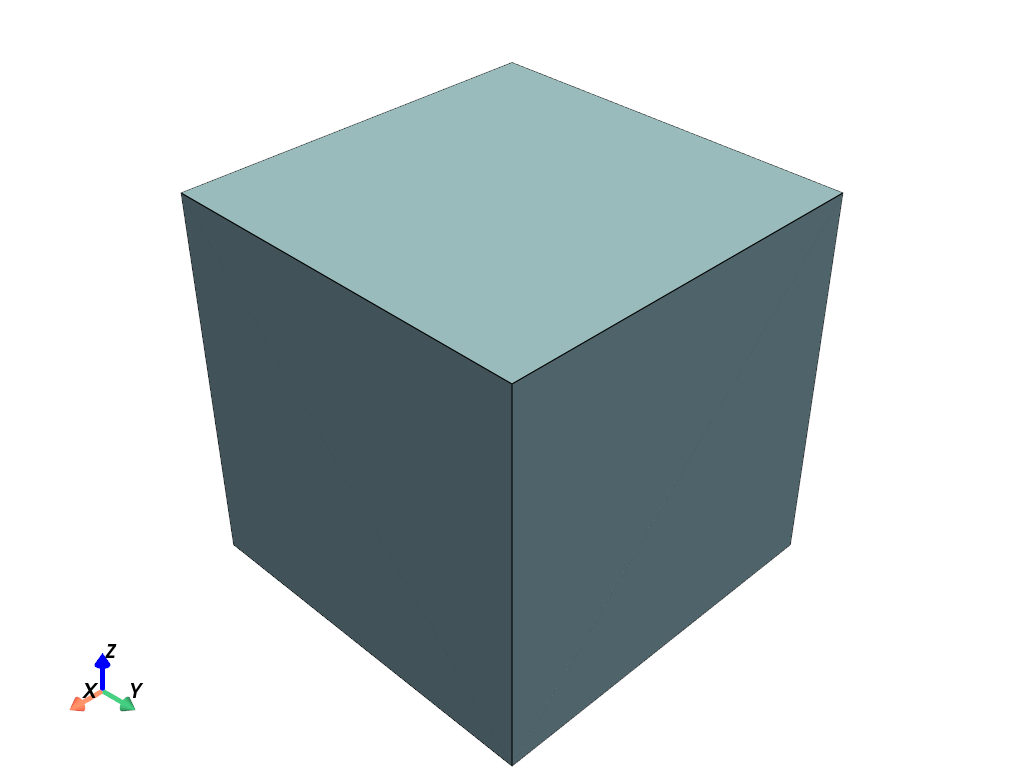

Specify more parameters for the axes marker.

>>> import pyvista as pv
>>> pl = pv.Plotter()
>>> actor = pl.add_mesh(pv.Box(), show_edges=True)
>>> _ = pl.add_axes(
...     line_width=5,
...     cone_radius=0.6,
...     shaft_length=0.7,
...     tip_length=0.3,
...     ambient=0.5,
...     label_size=(0.4, 0.16),
... )
>>> pl.show()

Static Scene

Interactive Scene
