Quadrilateral

Quadrilateral(points: MatrixLike[float] | None = None) → PolyData

Create a quadrilateral defined by 4 points.

Parameters:

pointsarray_like[float], optional

Points of the quadrilateral. Defaults to a unit square in xy-plane.

Returns:

pyvista.PolyData

Quadrilateral mesh.

Examples

>>> import pyvista as pv
>>> pointa = [1.0, 0.0, 0.0]
>>> pointb = [1.0, 1.0, 0.0]
>>> pointc = [0.0, 1.0, 0.0]
>>> pointd = [0.0, 0.0, 0.0]
>>> quadrilateral = pv.Quadrilateral([pointa, pointb, pointc, pointd])

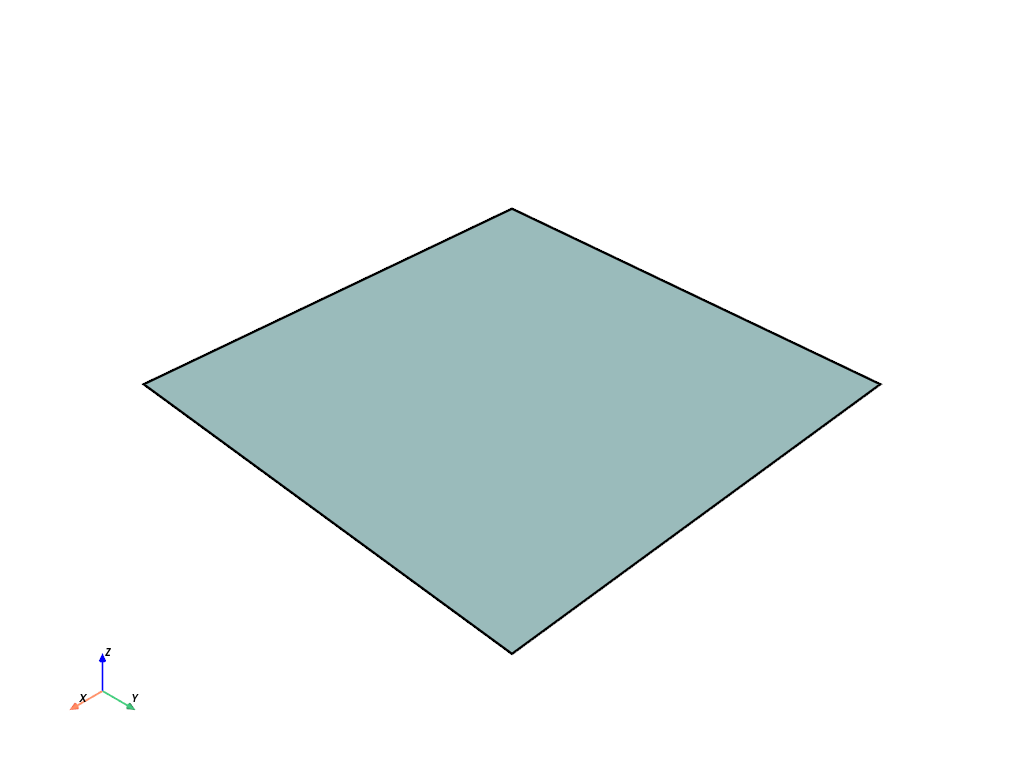

>>> quadrilateral.plot(show_edges=True, line_width=5)

Static Scene

Interactive Scene
