pyvista.ConeSource

class ConeSource(

center: VectorLike[float] = (0.0, 0.0, 0.0),

direction: VectorLike[float] = (1.0, 0.0, 0.0),

height: float = 1.0,

radius: float | None = None,

capping: bool = True,

angle: float | None = None,

resolution: int = 6,

)

Cone source algorithm class.

Parameters:

centersequence[float], default: (0.0, 0.0, 0.0)

Center in [x, y, z]. Axis of the cone passes through this point.

directionsequence[float], default: (1.0, 0.0, 0.0)

Direction vector in [x, y, z]. Orientation vector of the cone.

heightfloat, default: 1.0

Height along the cone in its specified direction.

radiusfloat, optional

Base radius of the cone.

cappingbool, default: True

Enable or disable the capping the base of the cone with a polygon.

anglefloat, optional

The angle in degrees between the axis of the cone and a generatrix.

resolutionint, default: 6

Number of facets used to represent the cone.

Examples

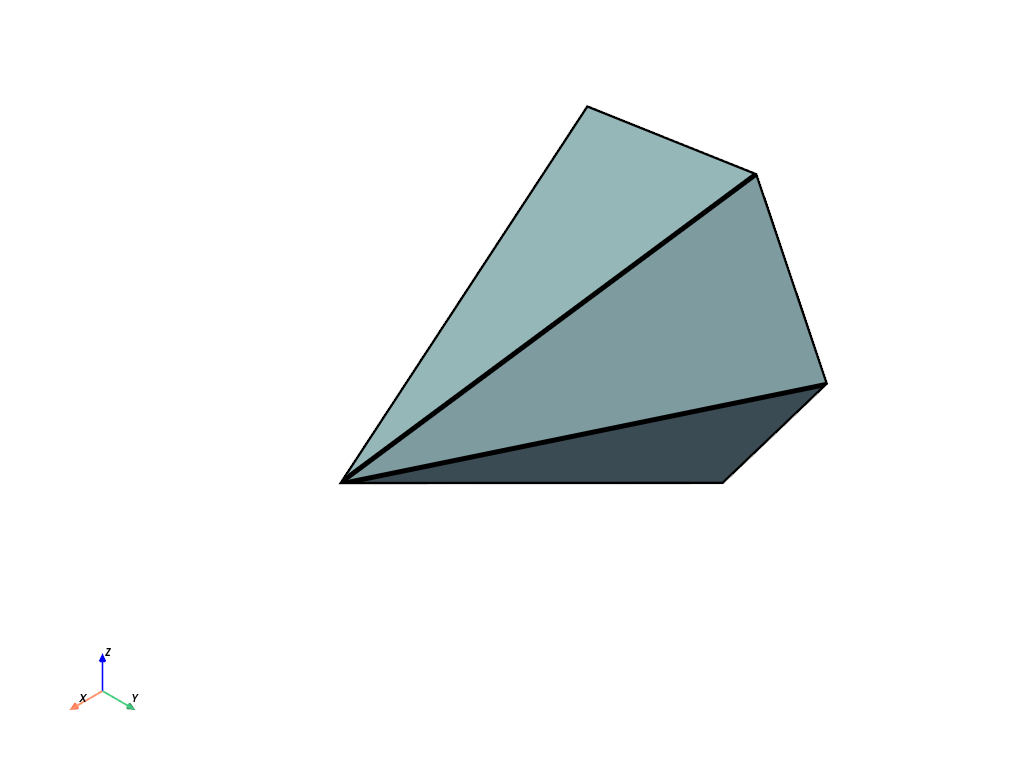

Create a default ConeSource.

>>> import pyvista as pv
>>> source = pv.ConeSource()
>>> source.output.plot(show_edges=True, line_width=5)

Static Scene

Interactive Scene

Methods

Attributes

ConeSource.angle	Get the angle in degrees between the axis of the cone and a generatrix.
ConeSource.capping	Enable or disable the capping the base of the cone with a polygon.
ConeSource.center	Get the center in [x, y, z].
ConeSource.direction	Get the direction vector in [x, y, z].
ConeSource.height	Get the height along the cone in its specified direction.
ConeSource.output	Get the output data object for a port on this algorithm.
ConeSource.radius	Get base radius of the cone.
ConeSource.resolution	Get number of points on the circular face of the cone.
