pyvista.CubeSource

class CubeSource(

center: VectorLike[float] = (0.0, 0.0, 0.0),

x_length: float = 1.0,

y_length: float = 1.0,

z_length: float = 1.0,

bounds: VectorLike[float] | None = None,

point_dtype: str = 'float32',

)

Cube source algorithm class.

Added in version 0.44.0.

Parameters:

centersequence[float], default: (0.0, 0.0, 0.0)

Center in [x, y, z].

x_lengthfloat, default: 1.0

Length of the cube in the x-direction.

y_lengthfloat, default: 1.0

Length of the cube in the y-direction.

z_lengthfloat, default: 1.0

Length of the cube in the z-direction.

boundssequence[float], optional

Specify the bounding box of the cube. If given, all other size arguments are ignored. (x_min, x_max, y_min, y_max, z_min, z_max).

point_dtypestr, default: ‘float32’

Set the desired output point types. It must be either ‘float32’ or ‘float64’.

Added in version 0.44.0.

Examples

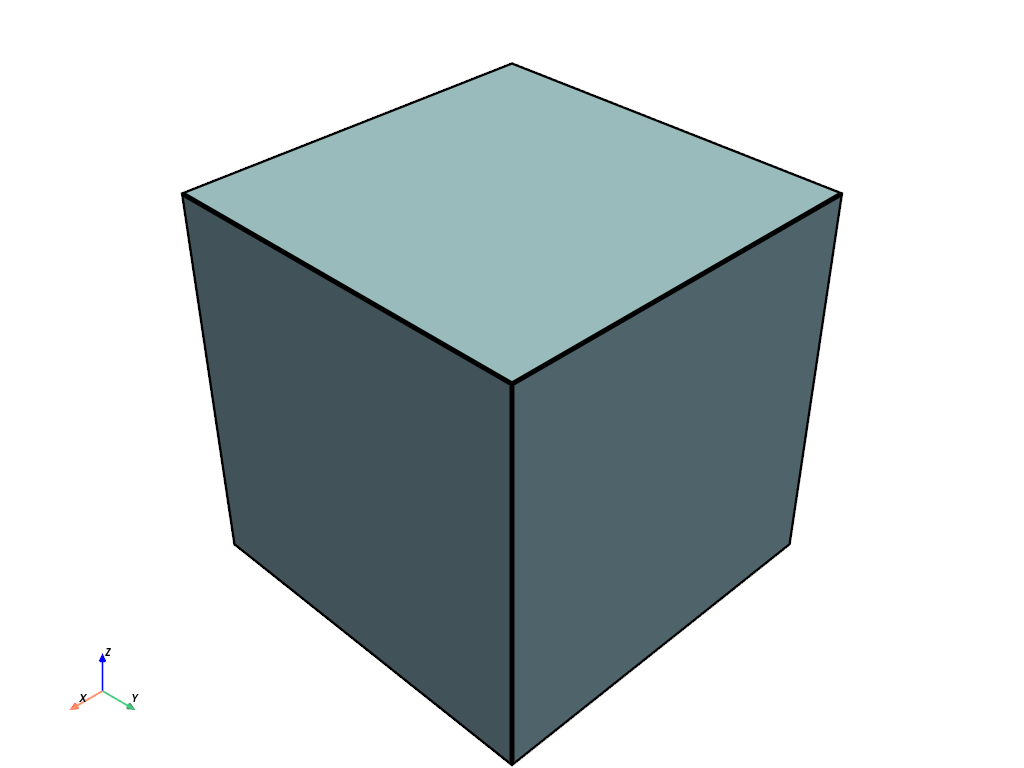

Create a default CubeSource.

>>> import pyvista as pv
>>> source = pv.CubeSource()
>>> source.output.plot(show_edges=True, line_width=5)

Static Scene

Interactive Scene

Methods

Attributes

CubeSource.bounds	Return or set the bounding box of the cube.
CubeSource.center	Get the center in [x, y, z].
CubeSource.output	Get the output data object for a port on this algorithm.
CubeSource.point_dtype	Get the desired output point types.
CubeSource.x_length	Get the x length along the cube in its specified direction.
CubeSource.y_length	Get the y length along the cube in its specified direction.
CubeSource.z_length	Get the z length along the cube in its specified direction.
