pyvista.Prop3D.orientation

property Prop3D.orientation: tuple[float, float, float]

Return or set the entity orientation angles.

Orientation angles of the axes which define rotations about the world’s x-y-z axes. The angles are specified in degrees and in x-y-z order. However, the actual rotations are applied in the following order: rotate_y() first, then rotate_x() and finally rotate_z().

Rotations are applied about the specified origin.

See also

rotation_from

Alternative method for setting the orientation.

Examples

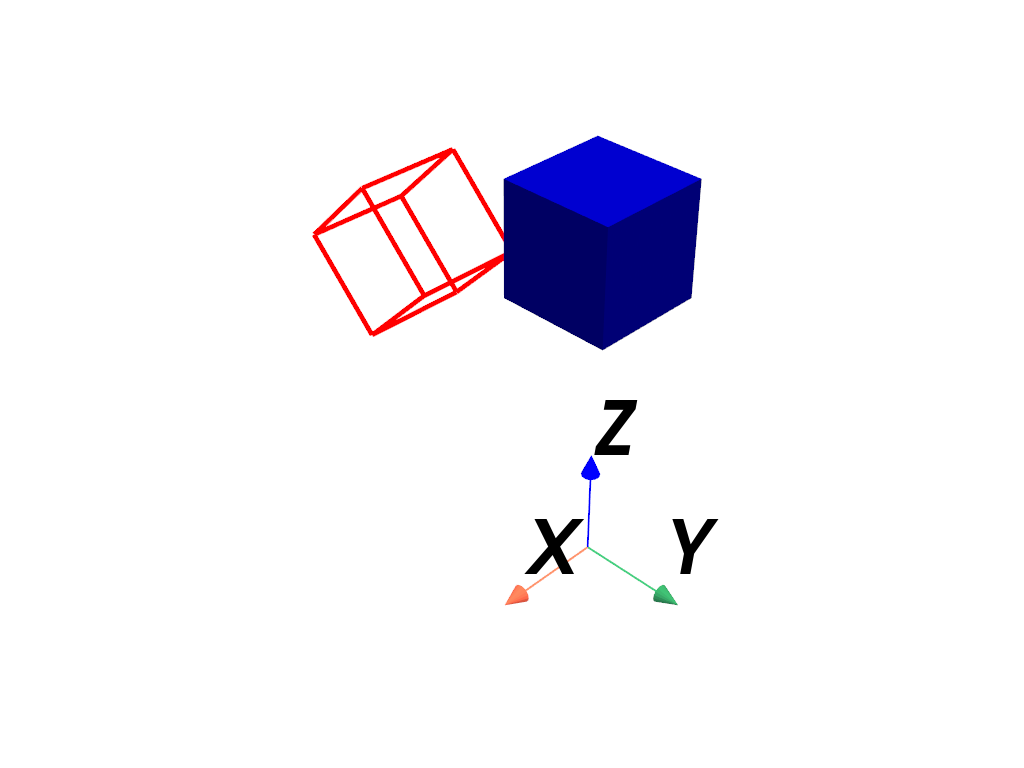

Reorient just the actor and plot it. Note how the actor is rotated about the origin (0, 0, 0) by default.

>>> import pyvista as pv
>>> mesh = pv.Cube(center=(0, 0, 3))
>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(mesh, color='b')
>>> actor = pl.add_mesh(
...     mesh,
...     color='r',
...     style='wireframe',
...     line_width=5,
...     lighting=False,
... )
>>> actor.orientation = (45, 0, 0)
>>> _ = pl.add_axes_at_origin()
>>> pl.show()

Static Scene

Interactive Scene

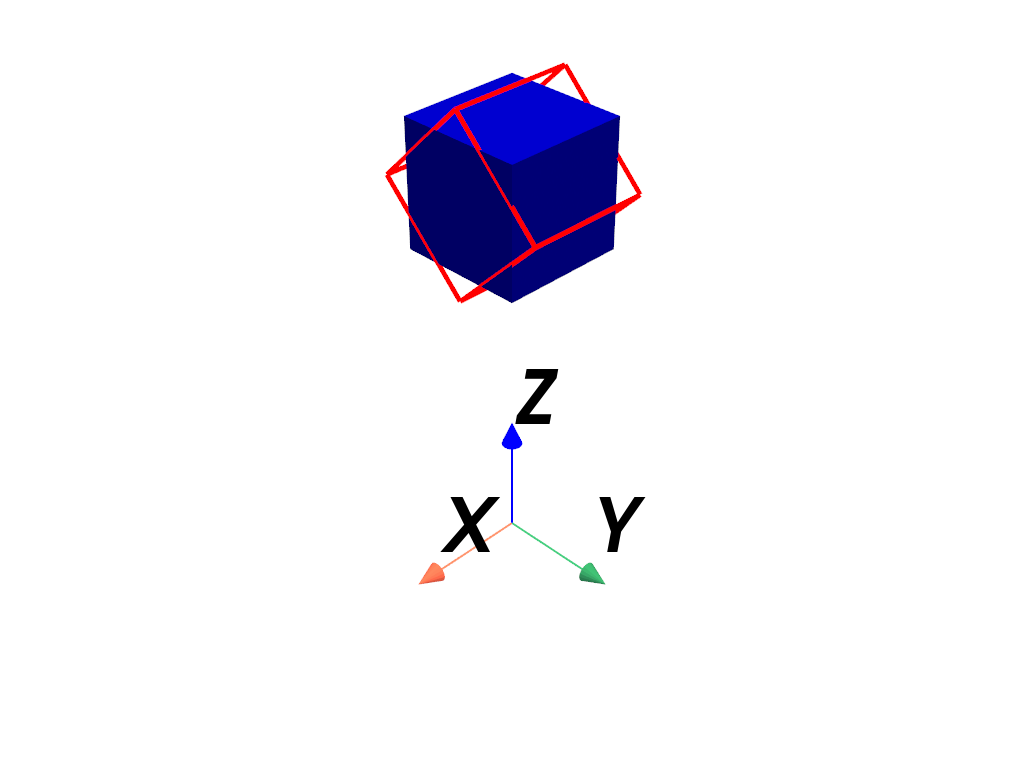

Repeat the last example, but this time reorient the actor about its center by specifying its origin.

>>> import pyvista as pv
>>> mesh = pv.Cube(center=(0, 0, 3))
>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(mesh, color='b')
>>> actor = pl.add_mesh(
...     mesh,
...     color='r',
...     style='wireframe',
...     line_width=5,
...     lighting=False,
... )
>>> actor.origin = actor.center
>>> actor.orientation = (45, 0, 0)
>>> _ = pl.add_axes_at_origin()
>>> pl.show()

Static Scene

Interactive Scene

Show that the orientation changes with rotation.

>>> import pyvista as pv
>>> mesh = pv.Cube()
>>> pl = pv.Plotter()
>>> actor = pl.add_mesh(mesh)
>>> actor.rotate_x(90)
>>> actor.orientation
(90, 0, 0)

Set the orientation directly.

>>> actor.orientation = (0, 45, 45)
>>> actor.orientation
(0, 45, 45)
