line_segments_from_points

line_segments_from_points(points: VectorLike[float] | MatrixLike[float]) → PolyData

Generate non-connected line segments from points.

Assumes points are ordered as line segments and an even number of points.

Parameters:

pointsarray_like[float]

Points representing line segments. An even number must be given as every two vertices represent a single line segment. For example, two line segments would be represented as np.array([[0, 0, 0], [1, 0, 0], [1, 0, 0], [1, 1, 0]]).

Returns:

pyvista.PolyData

PolyData with lines and cells.

Examples

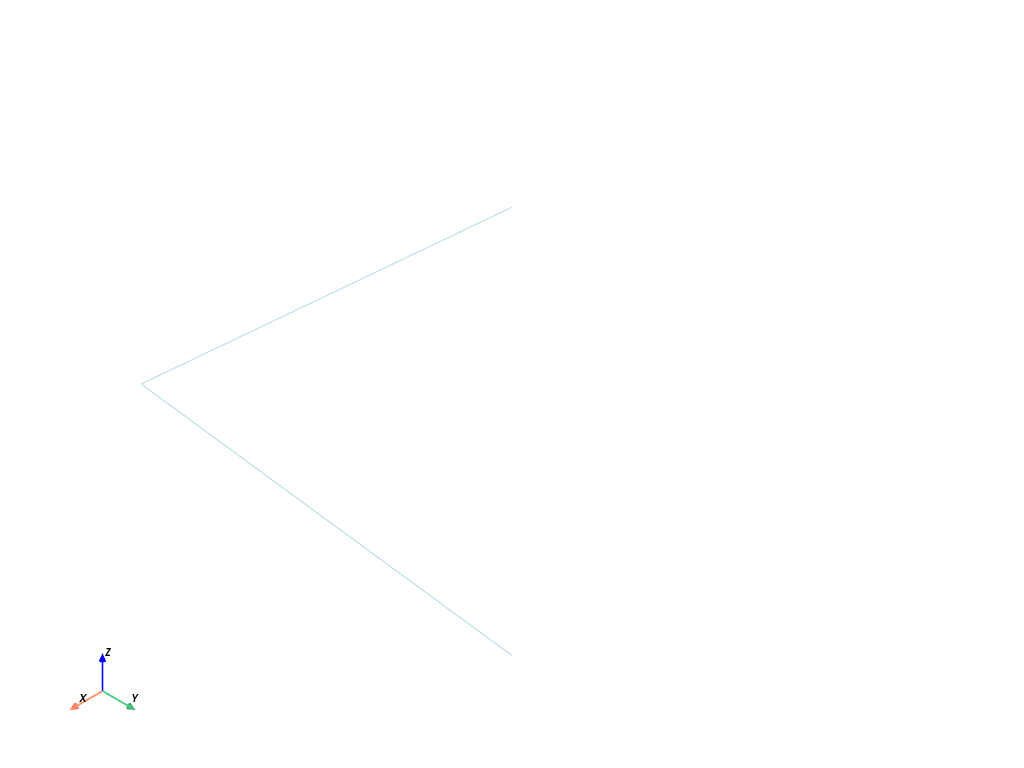

This example plots two line segments at right angles to each other.

>>> import pyvista as pv
>>> import numpy as np
>>> points = np.array([[0, 0, 0], [1, 0, 0], [1, 0, 0], [1, 1, 0]])
>>> lines = pv.line_segments_from_points(points)
>>> lines.plot()

Static Scene

Interactive Scene

See Plot a 3D Graph Network for more examples using this function.
