pyvista.PolyDataFilters.curvature

PolyDataFilters.curvature(curv_type='mean', progress_bar: bool = False)

Return the pointwise curvature of a mesh.

See Connectivity for more examples using this filter.

Parameters:

curv_typestr, default: “mean”

Curvature type. One of the following:

• "mean"

• "gaussian"

• "maximum"

• "minimum"

progress_barbool, default: False

Display a progress bar to indicate progress.

Returns:

numpy.ndarray

Array of curvature values.

Examples

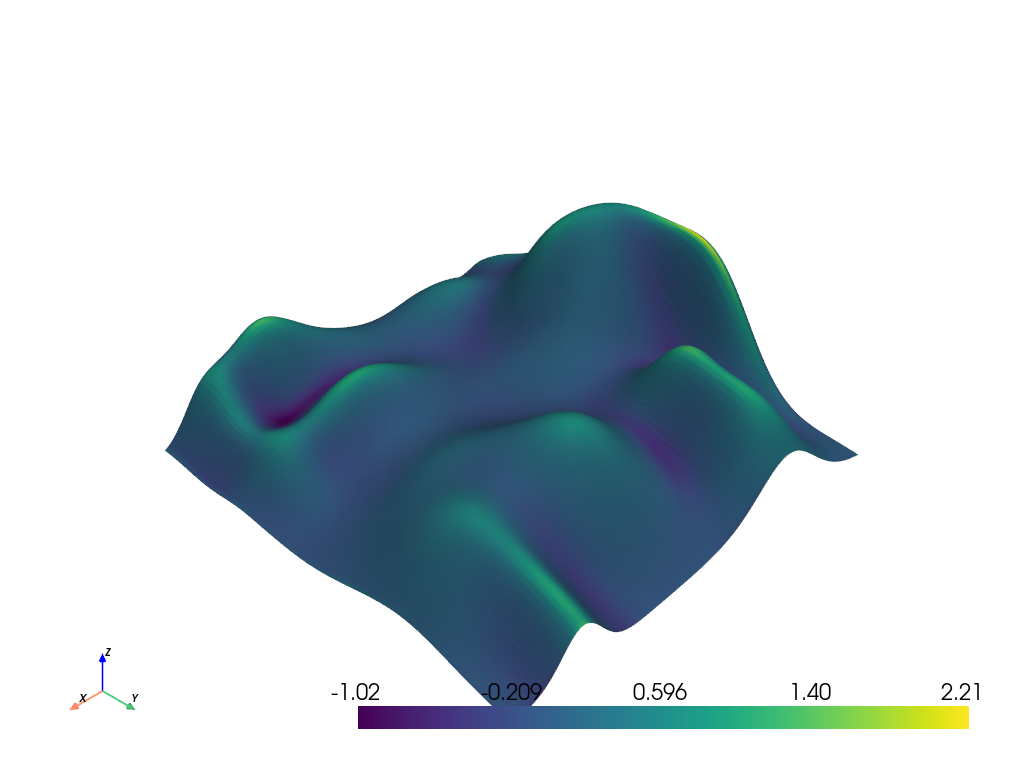

Calculate the mean curvature of the hills example mesh and plot it.

>>> from pyvista import examples
>>> hills = examples.load_random_hills()
>>> curv = hills.curvature()
>>> hills.plot(scalars=curv)

Static Scene

Interactive Scene

Show the curvature array.

>>> curv
array([0.20587616, 0.06747695, ..., 0.11781171, 0.15988467])
