DataSetFilters.sample_over_line

DataSetFilters.sample_over_line(

pointa: VectorLikeFloat,

pointb: VectorLikeFloat,

*,

resolution: int | None = None,

tolerance: float | None = None,

progress_bar: bool = False,

) → PolyData

Sample a dataset onto a line.

Parameters:

pointaVectorLikeFloat

Location in [x, y, z].

pointbVectorLikeFloat

Location in [x, y, z].

resolutionint, optional

Number of pieces to divide line into. Defaults to number of cells in the input mesh. Must be a positive integer.

tolerancefloat, optional

Tolerance used to compute whether a point in the source is in a cell of the input. If not given, tolerance is automatically generated.

progress_barbool, default: False

Display a progress bar to indicate progress.

Returns:

pyvista.PolyData

Line object with sampled data from dataset.

Examples

Download Python source code | Download Jupyter notebook

Sample over a plane that is interpolating a point cloud.

>>> import pyvista as pv
>>> import numpy as np
>>> rng = np.random.default_rng(12)
>>> point_cloud = rng.random((5, 3))
>>> point_cloud[:, 2] = 0
>>> point_cloud -= point_cloud.mean(0)
>>> pdata = pv.PolyData(point_cloud)
>>> pdata['values'] = rng.random(5)
>>> plane = pv.Plane()
>>> plane.clear_data()
>>> plane = plane.interpolate(pdata, sharpness=3.5)
>>> sample = plane.sample_over_line((-0.5, -0.5, 0), (0.5, 0.5, 0))
>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(pdata, render_points_as_spheres=True, point_size=50)
>>> _ = pl.add_mesh(sample, scalars='values', line_width=10)
>>> _ = pl.add_mesh(plane, scalars='values', style='wireframe')
>>> pl.show()

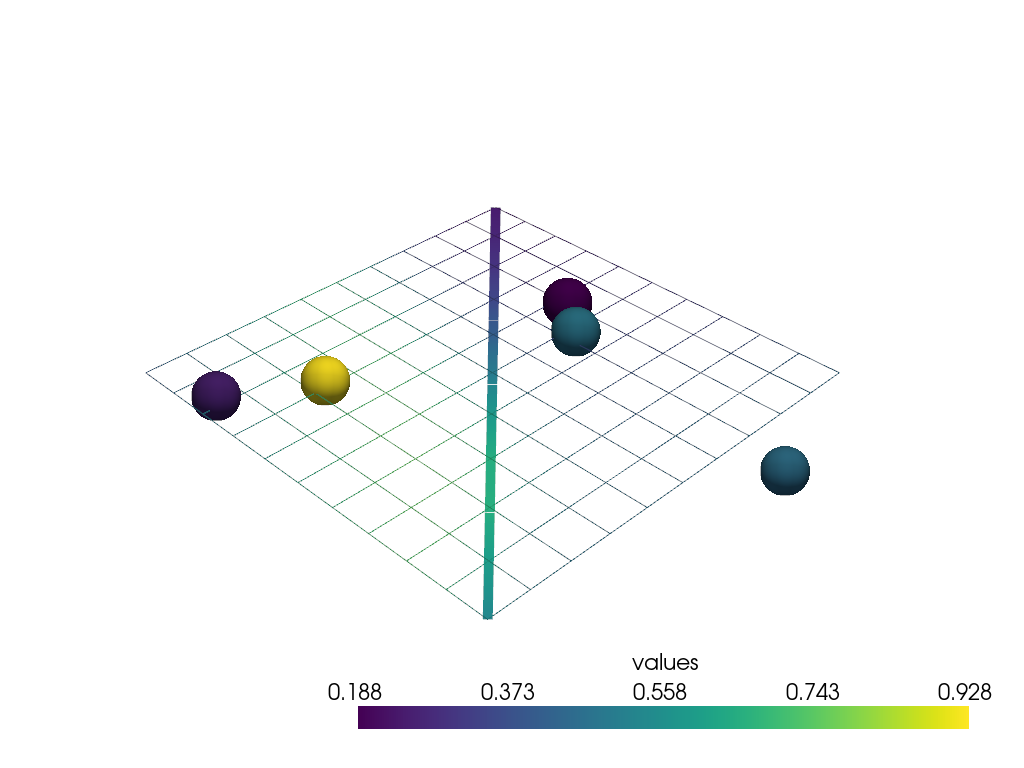

Static Scene

Interactive Scene
