DataSetFilters.explode

DataSetFilters.explode(factor: float = 0.1)

Push each individual cell away from the center of the dataset.

Parameters:

factorfloat, default: 0.1

How much each cell will move from the center of the dataset relative to its distance from it. Increase this number to push the cells farther away.

Returns:

pyvista.UnstructuredGrid

UnstructuredGrid containing the exploded cells.

Notes

This is similar to shrink except that it does not change the size of the cells.

Examples

Download Python source code | Download Jupyter notebook

>>> import numpy as np
>>> import pyvista as pv
>>> xrng = np.linspace(0, 1, 3)
>>> yrng = np.linspace(0, 2, 4)
>>> zrng = np.linspace(0, 3, 5)
>>> grid = pv.RectilinearGrid(xrng, yrng, zrng)
>>> exploded = grid.explode()

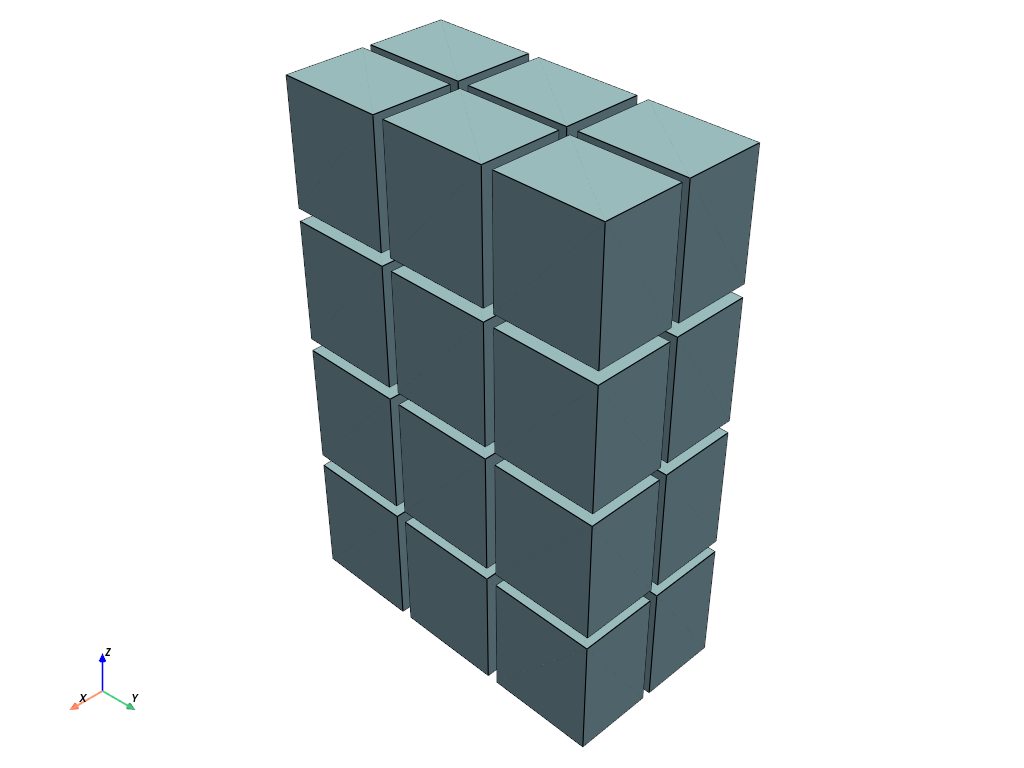

>>> exploded.plot(show_edges=True)

Static Scene

Interactive Scene
