PolyDataFilters.plot_curvature

PolyDataFilters.plot_curvature(

curv_type: _CurvatureOptions = 'mean',

**kwargs,

) → _ShowReturnType

Plot the curvature.

Parameters:

curv_typestr, default: “mean”

One of the following strings indicating curvature type:

• 'mean'

• 'gaussian'

• 'maximum'

• 'minimum'

**kwargsdict, optional

See pyvista.plot().

Returns:

pyvista.CameraPosition

List of camera position, focal point, and view up. Returned when return_cpos is True.

Examples

Download Python source code | Download Jupyter notebook

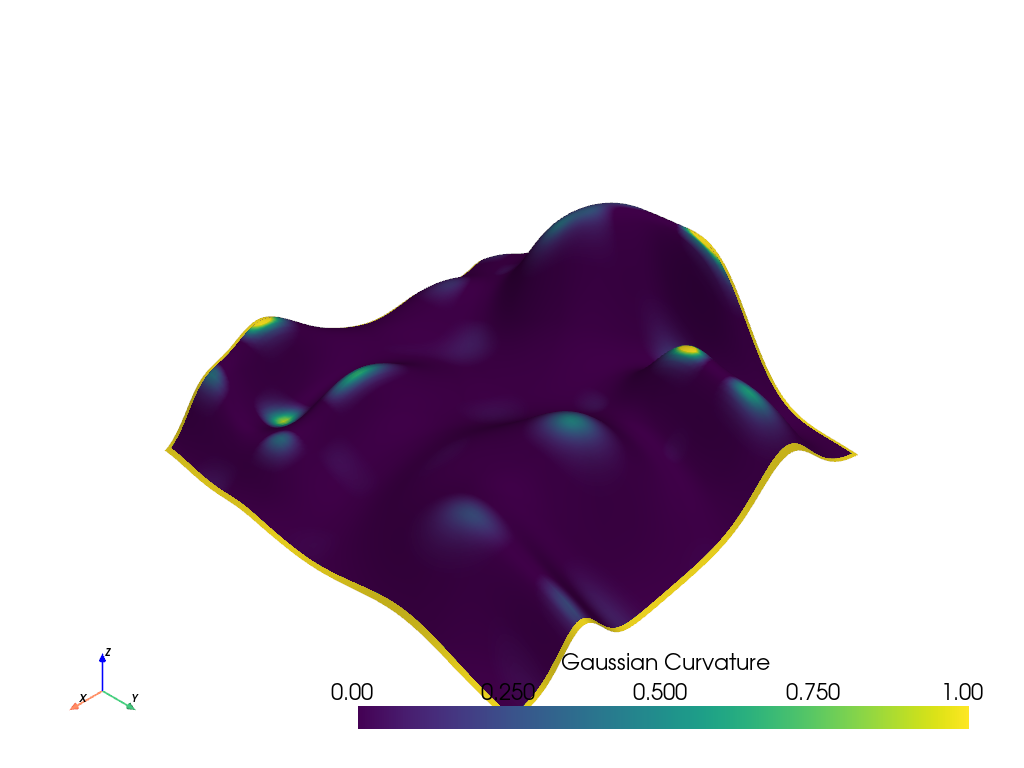

Plot the Gaussian curvature of an example mesh. Override the default scalar bar range as the mesh edges report high curvature.

>>> from pyvista import examples
>>> hills = examples.load_random_hills()
>>> hills.plot_curvature(
...     curv_type='gaussian', smooth_shading=True, clim=[0, 1]
... )

Static Scene

Interactive Scene
