PolyDataFilters.plot_boundaries

PolyDataFilters.plot_boundaries(

*,

edge_color: ColorLike = 'red',

line_width: int | None = None,

progress_bar: bool = False,

**kwargs,

) → _ShowReturnType

Plot boundaries of a mesh.

Parameters:

edge_colorColorLike, default: “red”

The color of the edges when they are added to the plotter.

line_widthint, optional

Width of the boundary lines.

progress_barbool, default: False

Display a progress bar to indicate progress.

**kwargsdict, optional

All additional keyword arguments will be passed to pyvista.Plotter.add_mesh().

Returns:

pyvista.CameraPosition

List of camera position, focal point, and view up. Returned when return_cpos is True.

Examples

Download Python source code | Download Jupyter notebook

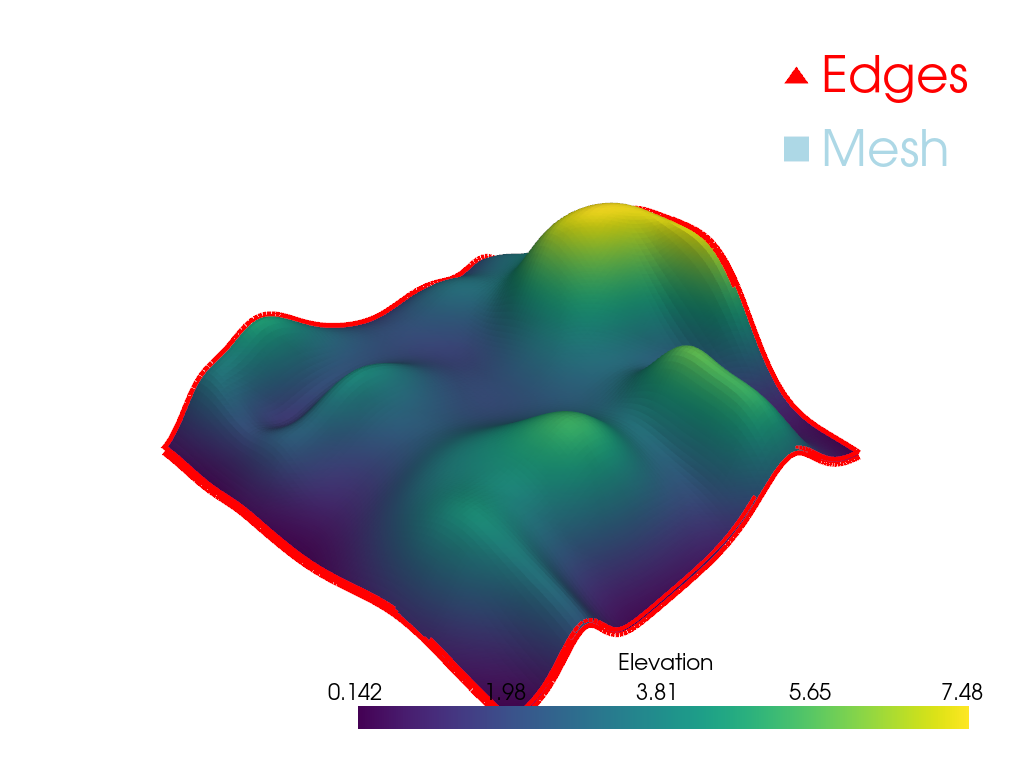

>>> from pyvista import examples
>>> hills = examples.load_random_hills()
>>> hills.plot_boundaries(line_width=10)

Static Scene

Interactive Scene
