pyvista.ImageEllipsoidSource

class ImageEllipsoidSource(*args, **kwargs)

Create a binary image of an ellipsoid class.

Added in version 0.44.0.

Parameters:

whole_extentsequence[int]

The extent of the whole output image.

centersequence[float]

The center of the ellipsoid.

radiustuple

The radius of the ellipsoid.

Examples

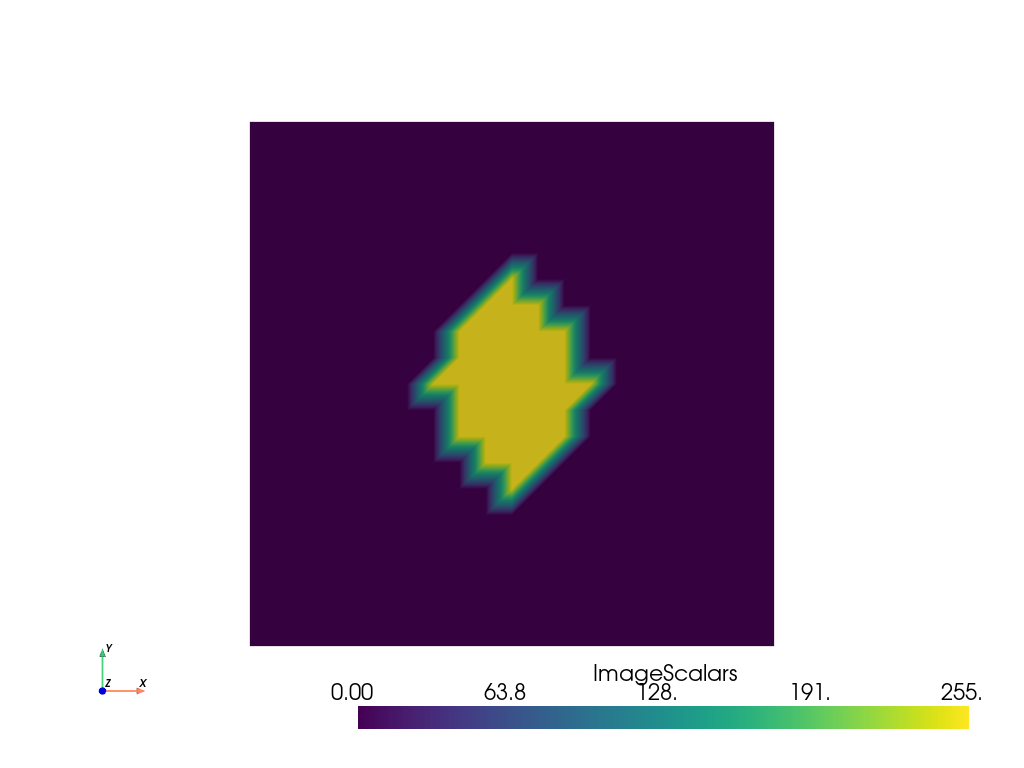

Create an image of an ellipsoid.

>>> import pyvista as pv
>>> source = pv.ImageEllipsoidSource(
...     whole_extent=(0, 20, 0, 20, 0, 0),
...     center=(10, 10, 0),
...     radius=(3, 4, 5),
... )
>>> source.output.plot(cpos='xy')

Static Scene

Interactive Scene

Methods

Attributes

ImageEllipsoidSource.center	Get the center of the ellipsoid.
ImageEllipsoidSource.output	Get the output image as a ImageData.
ImageEllipsoidSource.radius	Get the radius of the ellipsoid.
ImageEllipsoidSource.whole_extent	Get extent of the whole output image.
