pyvista.examples.downloads.download_knee_full

download_knee_full(load=True)

Download full knee dataset.

Parameters:

loadbool, default: True

Load the dataset after downloading it when True. Set this to False and only the filename will be returned.

Returns:

pyvista.ImageData | str

DataSet or filename depending on load.

Examples

>>> from pyvista import examples
>>> import pyvista as pv
>>> dataset = examples.download_knee_full()
>>> cpos = pv.CameraPosition(
...     position=(-381.74, -46.02, 216.54),
...     focal_point=(74.8305, 89.2905, 100.0),
...     viewup=(0.23, 0.072, 0.97),
... )

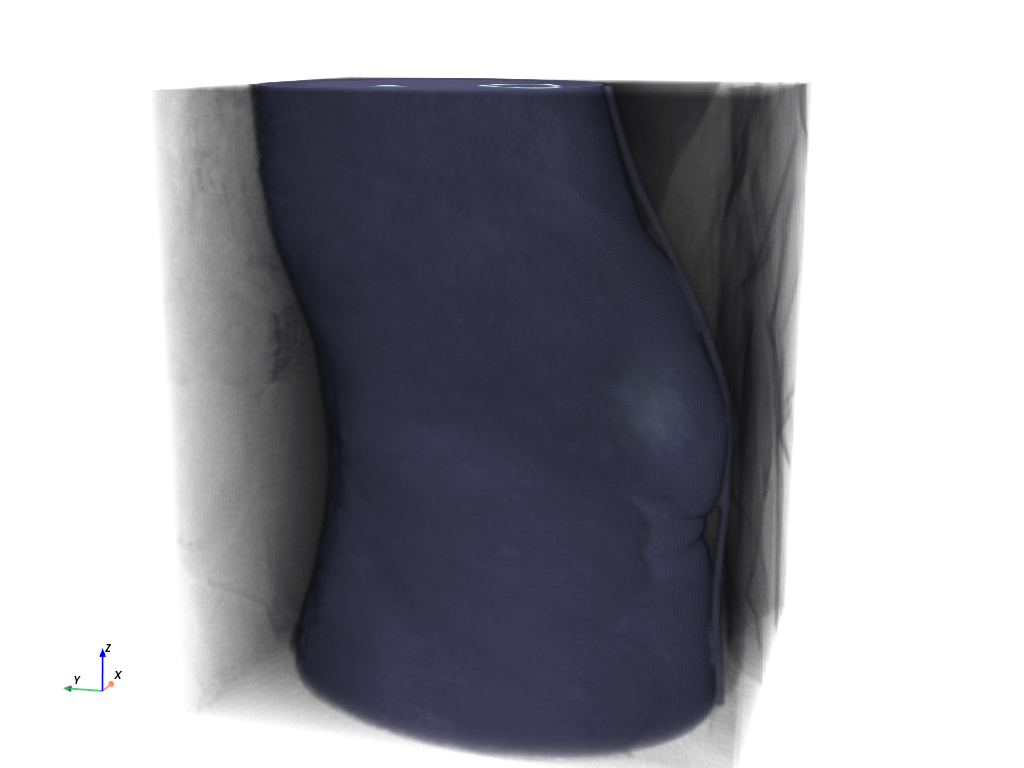

>>> dataset.plot(volume=True, cmap='bone', cpos=cpos, show_scalar_bar=False)

Static Scene

Interactive Scene

See also

Knee Full Dataset

See this dataset in the Dataset Gallery for more info.

Knee Dataset

Medical Datasets

Browse other medical datasets.

This dataset is used in the following examples:

• Volume Rendering

• Slider Bar Widget
