pyvista.ExplicitStructuredGrid

class ExplicitStructuredGrid(*args, **kwargs)

Extend the functionality of the vtkExplicitStructuredGrid class.

Can be initialized by the following:

• Creating an empty grid

• From a vtkStructuredGrid, vtkExplicitStructuredGrid or vtkUnstructuredGrid object

• From a VTU or VTK file

• From dims and corners arrays

• From dims, cells and points arrays

Parameters:

argsvtkExplicitStructuredGrid, vtkUnstructuredGrid, str, Sequence

See examples below.

deepbool, default: False

Whether to deep copy a vtkUnstructuredGrid object.

See also

Creating an Explicit Structured Grid

Examples

>>> import numpy as np
>>> import pyvista as pv
>>>
>>> # grid size: ni*nj*nk cells; si, sj, sk steps
>>> ni, nj, nk = 4, 5, 6
>>> si, sj, sk = 20, 10, 1
>>>
>>> # create raw coordinate grid
>>> grid_ijk = np.mgrid[
...     : (ni + 1) * si : si,
...     : (nj + 1) * sj : sj,
...     : (nk + 1) * sk : sk,
... ]
>>>
>>> # repeat array along each Cartesian axis for connectivity
>>> for axis in range(1, 4):
...     grid_ijk = grid_ijk.repeat(2, axis=axis)
>>>
>>> # slice off unnecessarily doubled edge coordinates
>>> grid_ijk = grid_ijk[:, 1:-1, 1:-1, 1:-1]
>>>
>>> # reorder and reshape to VTK order
>>> corners = grid_ijk.transpose().reshape(-1, 3)
>>>
>>> dims = np.array([ni, nj, nk]) + 1
>>> grid = pv.ExplicitStructuredGrid(dims, corners)
>>> grid = grid.compute_connectivity()

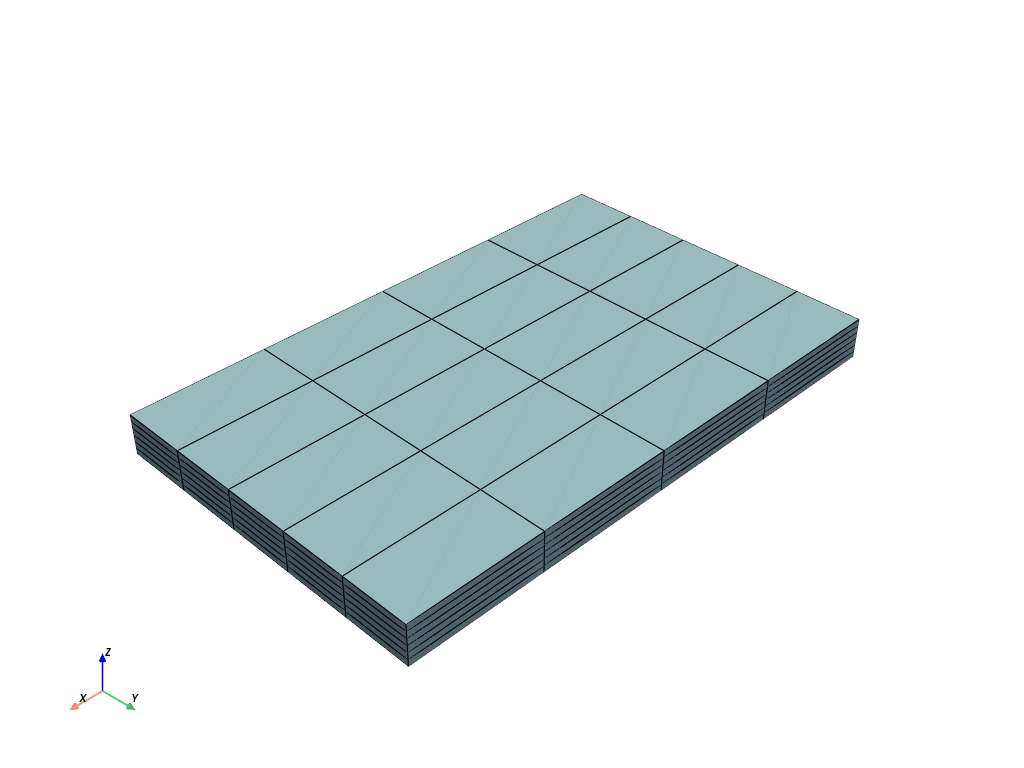

>>> grid.plot(show_edges=True)

Static Scene

Interactive Scene

Methods

ExplicitStructuredGrid.cast_to_unstructured_grid()	Cast to an unstructured grid.
ExplicitStructuredGrid.cell_coords(ind)	Return the cell structured coordinates.
ExplicitStructuredGrid.cell_id(coords)	Return the cell ID.
ExplicitStructuredGrid.clean([tolerance, ...])	Merge duplicate points and remove unused points in an ExplicitStructuredGrid.
ExplicitStructuredGrid.compute_connections([...])	Compute an array with the number of connected cell faces.
ExplicitStructuredGrid.compute_connectivity([...])	Compute the faces connectivity flags array.
ExplicitStructuredGrid.hide_cells(ind[, inplace])	Hide specific cells.
ExplicitStructuredGrid.neighbors(ind[, rel])	Return the indices of neighboring cells.
ExplicitStructuredGrid.save(filename[, ...])	Save this VTK object to file.
ExplicitStructuredGrid.show_cells([inplace])	Show hidden cells.

Attributes

ExplicitStructuredGrid.dimensionality	Return the dimensionality of the grid.
ExplicitStructuredGrid.dimensions	Return the topological dimensions of the grid.
ExplicitStructuredGrid.visible_bounds	Return the bounding box of the visible cells.
