UnstructuredGridFilters.subdivide_tetra

UnstructuredGridFilters.subdivide_tetra() → UnstructuredGrid

Subdivide each tetrahedron into twelve tetrahedrons.

Returns:

pyvista.UnstructuredGrid

UnstructuredGrid containing the subdivided tetrahedrons.

Examples

Download Python source code | Download Jupyter notebook

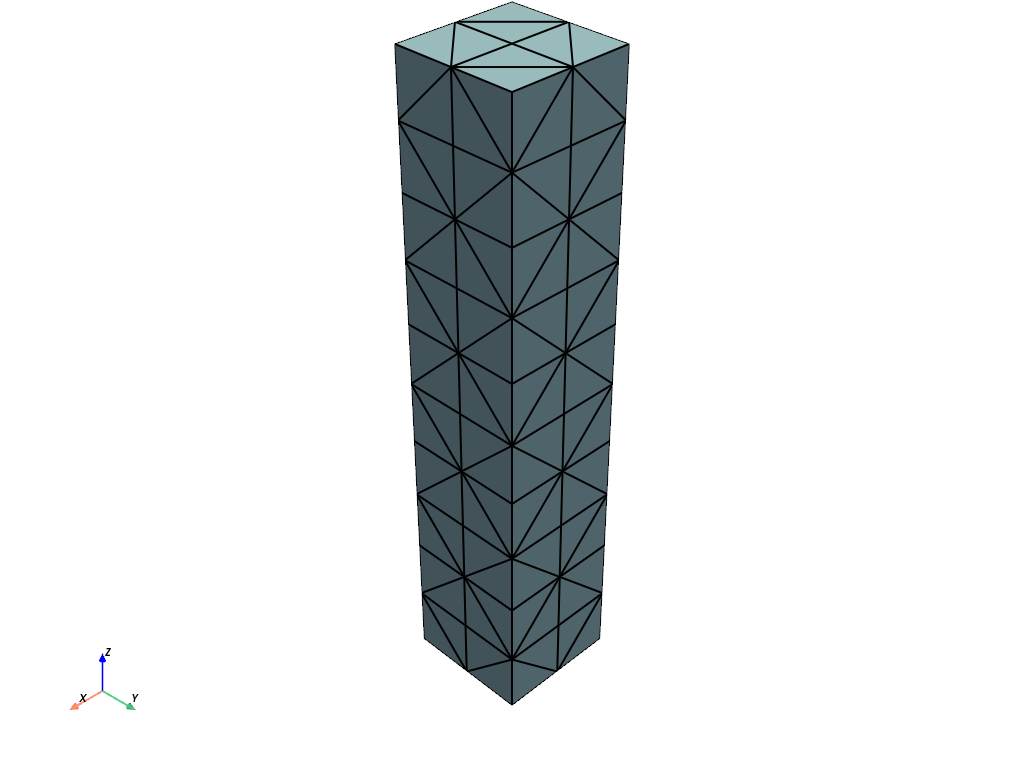

First, load a sample tetrahedral UnstructuredGrid and plot it.

>>> from pyvista import examples
>>> grid = examples.load_tetbeam()
>>> grid.plot(show_edges=True, line_width=2)

Static Scene

Interactive Scene

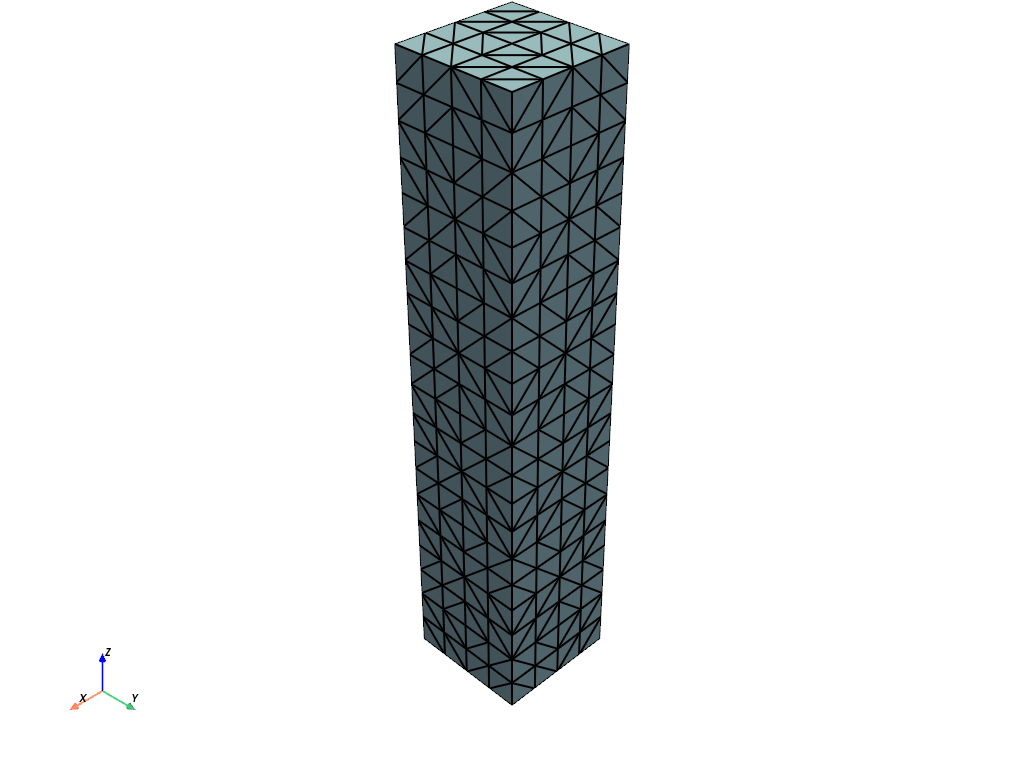

Subdivide and plot the result.

>>> subdivided = grid.subdivide_tetra()
>>> subdivided.plot(show_edges=True, line_width=2)

Static Scene

Interactive Scene
