pyvista.examples.planets.load_saturn_rings

load_saturn_rings(inner=0.25, outer=0.5, c_res=6)

Load the planet Saturn’s rings.

Arguments are passed on to pyvista.Disc().

Parameters:

innerfloat, optional

The inner radius.

outerfloat, optional

The outer radius.

c_resint, optional

The number of points in the circumferential direction.

Returns:

pyvista.PolyData

Dataset with texture for Saturn’s rings.

Examples

>>> import pyvista as pv
>>> from pyvista import examples
>>> mesh = examples.planets.load_saturn_rings()
>>> texture = examples.planets.download_saturn_rings(texture=True)
>>> image_path = examples.planets.download_stars_sky_background(
...     load=False
... )
>>> mesh.plot(texture=texture, background=image_path)

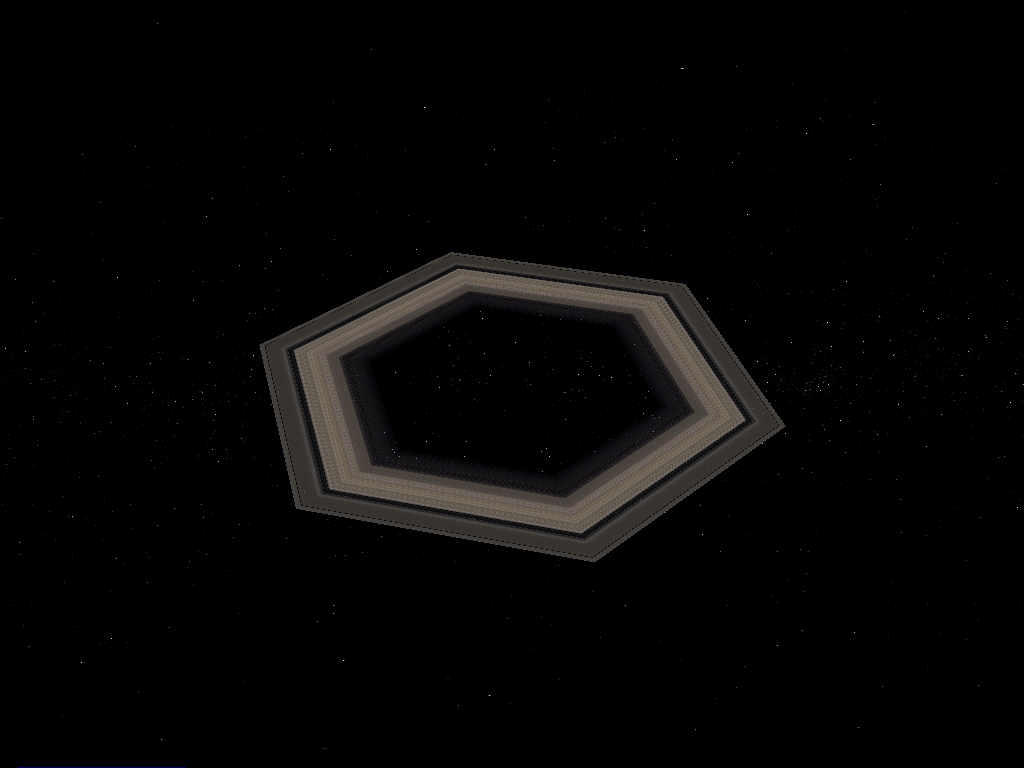

Static Scene

Interactive Scene
