DataSetFilters.bounding_box

DataSetFilters.bounding_box#

DataSetFilters.bounding_box( box_style: Literal['frame', 'outline', 'face'] = 'face', *, oriented: bool = False, frame_width: float = 0.1, return_meta: bool = False, as_composite: bool = True, ) → MultiBlock[PolyData] | tuple[MultiBlock[PolyData], NDArray[np.floating], NDArray[np.float64]] | PolyData | tuple[PolyData, NDArray[np.floating], NDArray[np.float64]][source]#

Return a bounding box for this dataset.

By default, the box is an axis-aligned bounding box (AABB) returned as a MultiBlock with six PolyData comprising the faces of the box. The blocks are named and ordered as ('+X','-X','+Y','-Y','+Z','-Z').

The box can optionally be styled as an outline or frame. It may also be oriented to generate an oriented bounding box (OBB).

Added in version 0.45.

Parameters:

box_style‘frame’ | ‘outline’ | ‘face’, default: ‘face’: Choose the style of the box. If 'face' (default), each face of the box is a single quad cell. If 'outline', the edges of each face are returned as line cells. If 'frame', the center portion of each face is removed to create a picture-frame style border with each face having four quads (one for each side of the frame). Use frame_width to control the size of the frame.
orientedbool, default: False: Orient the box using this dataset’s principal_axes(). This will generate a box that best fits this dataset’s points. See oriented_bounding_box() for more details.
frame_widthfloat, optional: Set the width of the frame. Only has an effect if box_style is 'frame'. Values must be between 0.0 (minimal frame) and 1.0 (large frame). The frame is scaled to ensure it has a constant width.
return_metabool, default: False: If True, also returns the corner point and the three axes vectors defining the orientation of the box.
as_compositebool, default: True: Return the box as a pyvista.MultiBlock with six blocks: one for each face. Set this False to merge the output and return PolyData with six cells instead. The faces in both outputs are separate, that is, there are duplicate points at the corners.

Returns:

outputpyvista.MultiBlock | pyvista.PolyData: MultiBlock with six named cube faces when as_composite=True and PolyData otherwise.
numpy.ndarray: The box’s corner point corresponding to the origin of its axes if return_meta=True.
numpy.ndarray: The box’s orthonormal axes vectors if return_meta=True.

Examples#

Download Python source code | Download Jupyter notebook

Create a bounding box for a dataset.

>>> import pyvista as pv
>>> from pyvista import examples
>>> mesh = examples.download_oblique_cone()
>>> box = mesh.bounding_box()

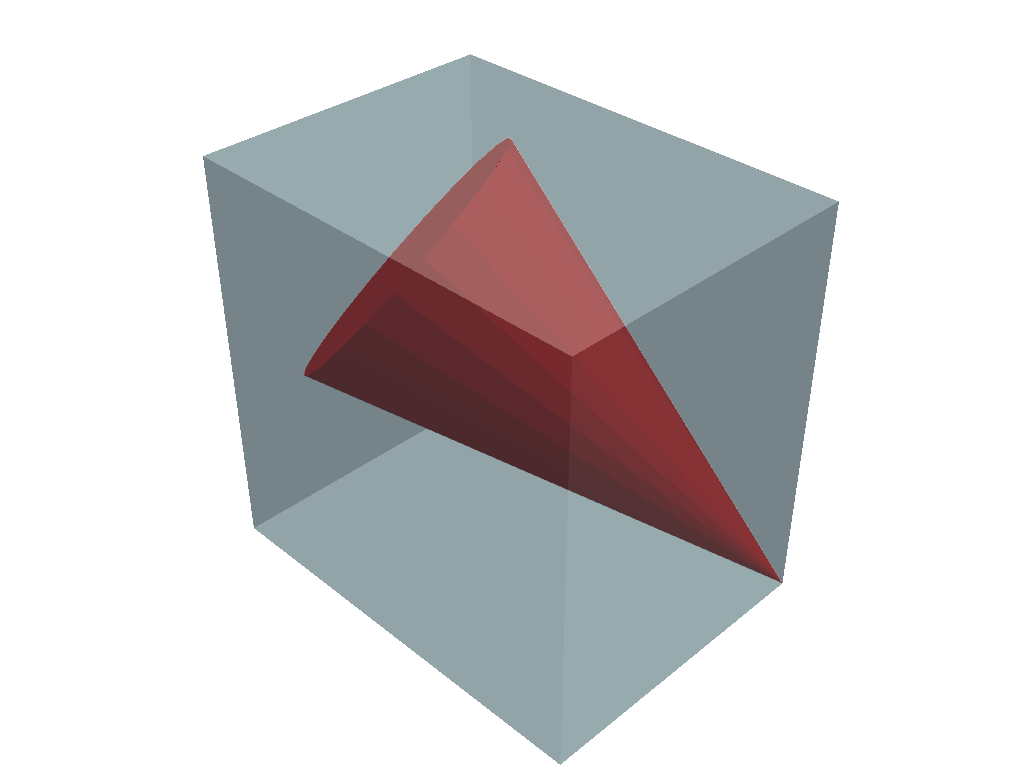

Plot the mesh and its bounding box.

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(mesh, color='red')
>>> _ = pl.add_mesh(box, opacity=0.5)
>>> pl.show()

Static Scene

../../../_images/pyvista-DataSetFilters-bounding_box-578948f81d90245d_00_00.png

Interactive Scene

Create a frame instead.

>>> frame = mesh.bounding_box('frame')

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(mesh, color='red')
>>> _ = pl.add_mesh(frame, show_edges=True)
>>> pl.show()

Static Scene

../../../_images/pyvista-DataSetFilters-bounding_box-578948f81d90245d_01_00.png

Interactive Scene

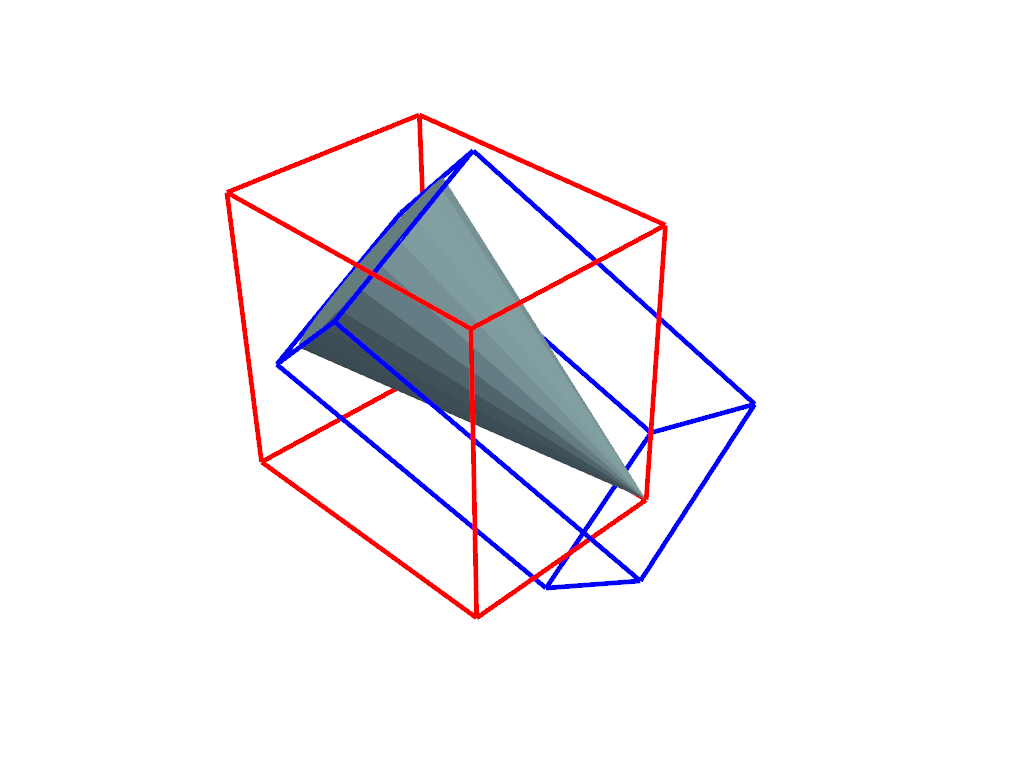

Create an oriented bounding box (OBB) and compare it to the non-oriented one. Use the outline style for both.

>>> box = mesh.bounding_box('outline')
>>> obb = mesh.bounding_box('outline', oriented=True)

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(mesh)
>>> _ = pl.add_mesh(box, color='red', line_width=5)
>>> _ = pl.add_mesh(obb, color='blue', line_width=5)
>>> pl.show()

Static Scene

../../../_images/pyvista-DataSetFilters-bounding_box-578948f81d90245d_02_00.png

Interactive Scene

Return the metadata for the box.

>>> box, point, axes = mesh.bounding_box('outline', return_meta=True)

Use the metadata to plot the box’s axes using AxesAssembly. Create the assembly and position it at the box’s corner. Scale it to a fraction of the box’s length.

>>> scale = box.length / 4
>>> axes_assembly = pv.AxesAssembly(position=point, scale=scale)

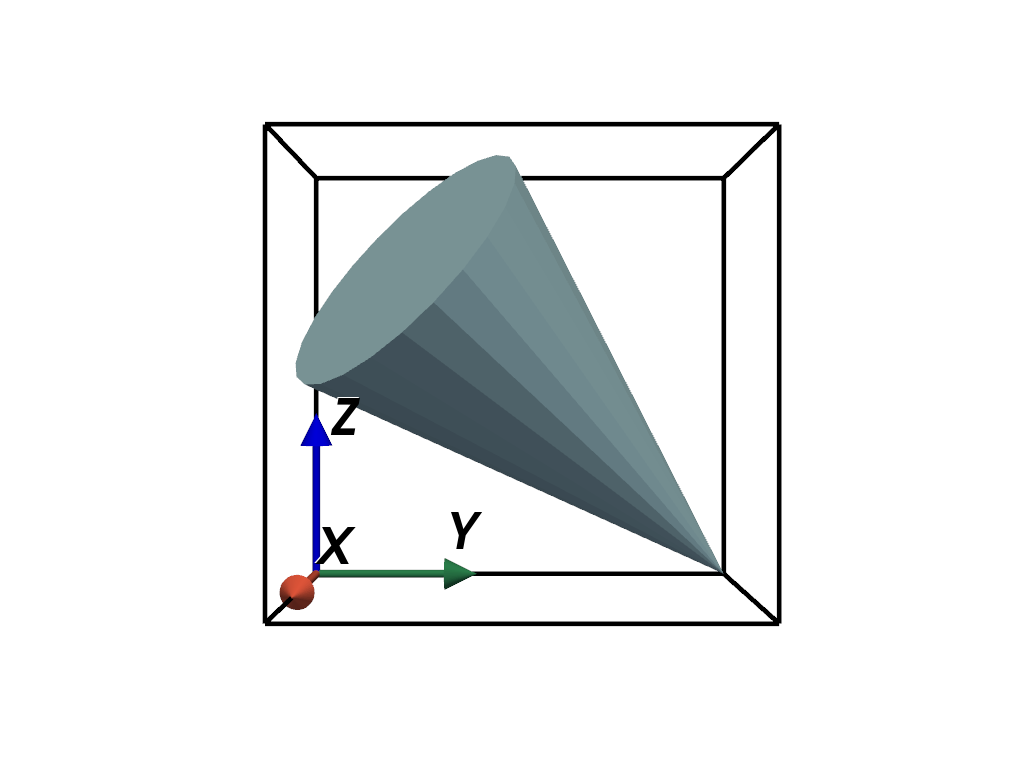

Plot the box and the axes.

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(mesh)
>>> _ = pl.add_mesh(box, color='black', line_width=5)
>>> _ = pl.add_actor(axes_assembly)
>>> _ = pl.view_yz()
>>> pl.show()
