DataObjectFilters.rotate_vector

DataObjectFilters.rotate_vector#

DataObjectFilters.rotate_vector( vector: VectorLikeFloat, angle: float, *, point: VectorLikeFloat | None = None, transform_all_input_vectors: bool = False, inplace: bool = False, ) → _MeshType_co[source]#

Rotate mesh about a vector.

Note

See also the notes at transform() which is used by this filter under the hood.

Parameters:

vectorVectorLikeFloat: Vector to rotate about.
anglefloat: Angle to rotate.
pointVectorLikeFloat, optional: Point to rotate about. Defaults to origin.
transform_all_input_vectorsbool, default: False: When True, all input vectors are transformed. Otherwise, only the points, normals, and active vectors are transformed.
inplacebool, default: False: Updates mesh in-place.

Returns:

outputDataSet | MultiBlock: Rotated dataset. Return type matches input.

Examples#

Download Python source code | Download Jupyter notebook

Rotate a mesh 30 degrees about the (1, 1, 1) axis.

>>> import pyvista as pv
>>> mesh = pv.Cube()
>>> rot = mesh.rotate_vector((1, 1, 1), 30, inplace=False)

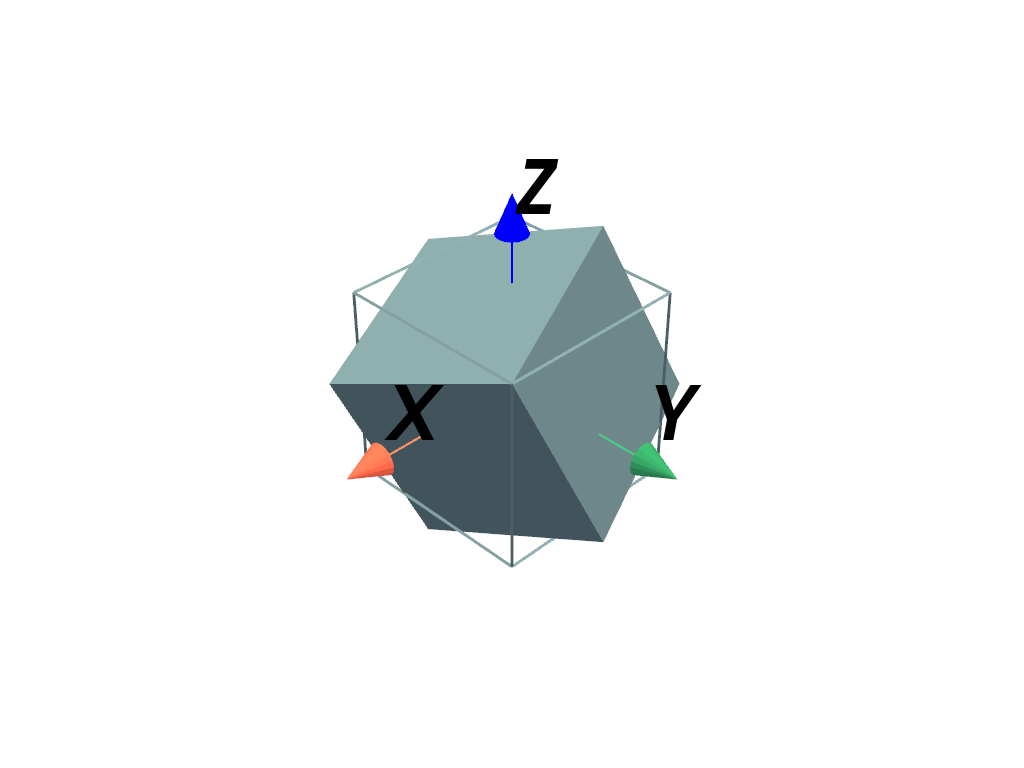

Plot the rotated mesh.

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(rot)
>>> _ = pl.add_mesh(mesh, style='wireframe', line_width=3)
>>> _ = pl.add_axes_at_origin()
>>> pl.show()
