DataObjectFilters.flip_y

DataObjectFilters.flip_y#

DataObjectFilters.flip_y( *, point: VectorLikeFloat | None = None, transform_all_input_vectors: bool = False, inplace: bool = False, ) → _MeshType_co[source]#

Flip mesh about the y-axis.

Note

See also the notes at transform() which is used by this filter under the hood.

Parameters:

pointVectorLikeFloat, optional: Point to rotate about. Defaults to center of mesh at center.
transform_all_input_vectorsbool, default: False: When True, all input vectors are transformed. Otherwise, only the points, normals, and active vectors are transformed.
inplacebool, default: False: Updates mesh in-place.

Returns:

outputDataSet | MultiBlock: Flipped dataset. Return type matches input.

Examples#

Download Python source code | Download Jupyter notebook

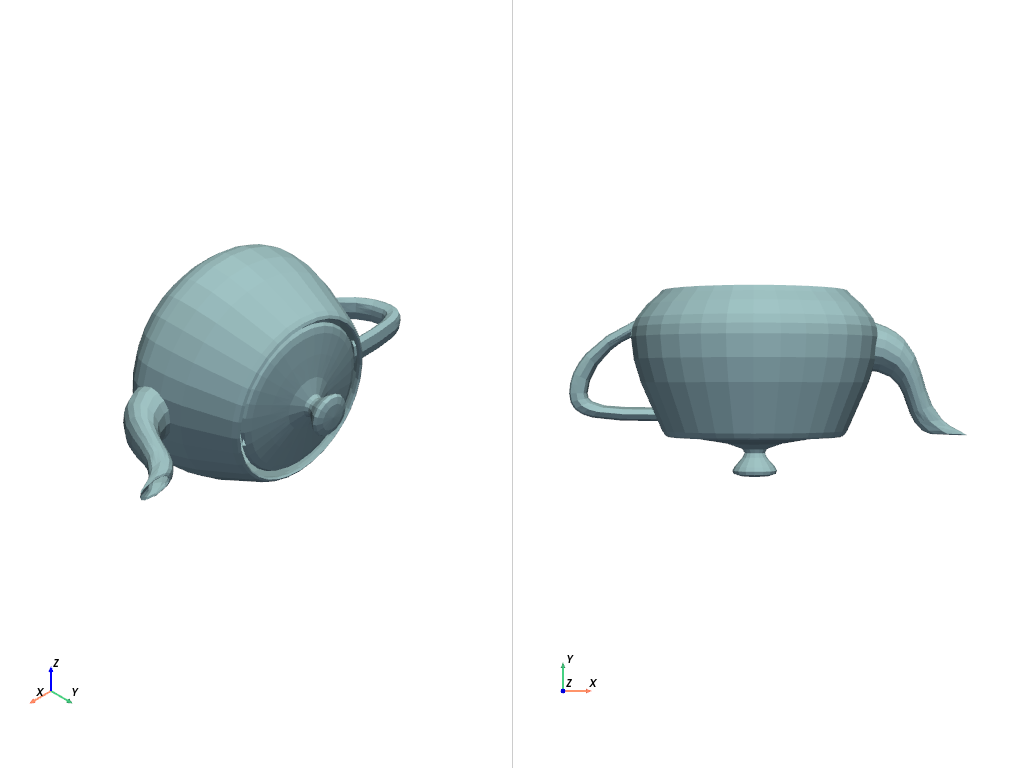

>>> import pyvista as pv
>>> from pyvista import examples
>>> pl = pv.Plotter(shape=(1, 2))
>>> pl.subplot(0, 0)
>>> pl.show_axes()
>>> mesh1 = examples.download_teapot()
>>> _ = pl.add_mesh(mesh1)
>>> pl.subplot(0, 1)
>>> pl.show_axes()
>>> mesh2 = mesh1.flip_y(inplace=False)
>>> _ = pl.add_mesh(mesh2)
>>> pl.show(cpos='xy')
