DataObjectFilters.flip_normal

DataObjectFilters.flip_normal(

normal: VectorLikeFloat,

*,

point: VectorLikeFloat | None = None,

transform_all_input_vectors: bool = False,

inplace: bool = False,

) → _MeshType_co

Flip mesh about the normal.

Note

See also the notes at transform() which is used by this filter under the hood.

Parameters:

normalVectorLikeFloat

Normal vector to flip about.

pointVectorLikeFloat, optional

Point to rotate about. Defaults to center of mesh at center.

transform_all_input_vectorsbool, default: False

When True, all input vectors are transformed. Otherwise, only the points, normals, and active vectors are transformed.

inplacebool, default: False

Updates mesh in-place.

Returns:

outputDataSet | MultiBlock

Dataset flipped about its normal. Return type matches input.

Examples

Download Python source code | Download Jupyter notebook

>>> import pyvista as pv
>>> from pyvista import examples
>>> pl = pv.Plotter(shape=(1, 2))
>>> pl.subplot(0, 0)
>>> pl.show_axes()
>>> mesh1 = examples.download_teapot()
>>> _ = pl.add_mesh(mesh1)
>>> pl.subplot(0, 1)
>>> pl.show_axes()
>>> mesh2 = mesh1.flip_normal([1.0, 1.0, 1.0], inplace=False)
>>> _ = pl.add_mesh(mesh2)
>>> pl.show(cpos='xy')

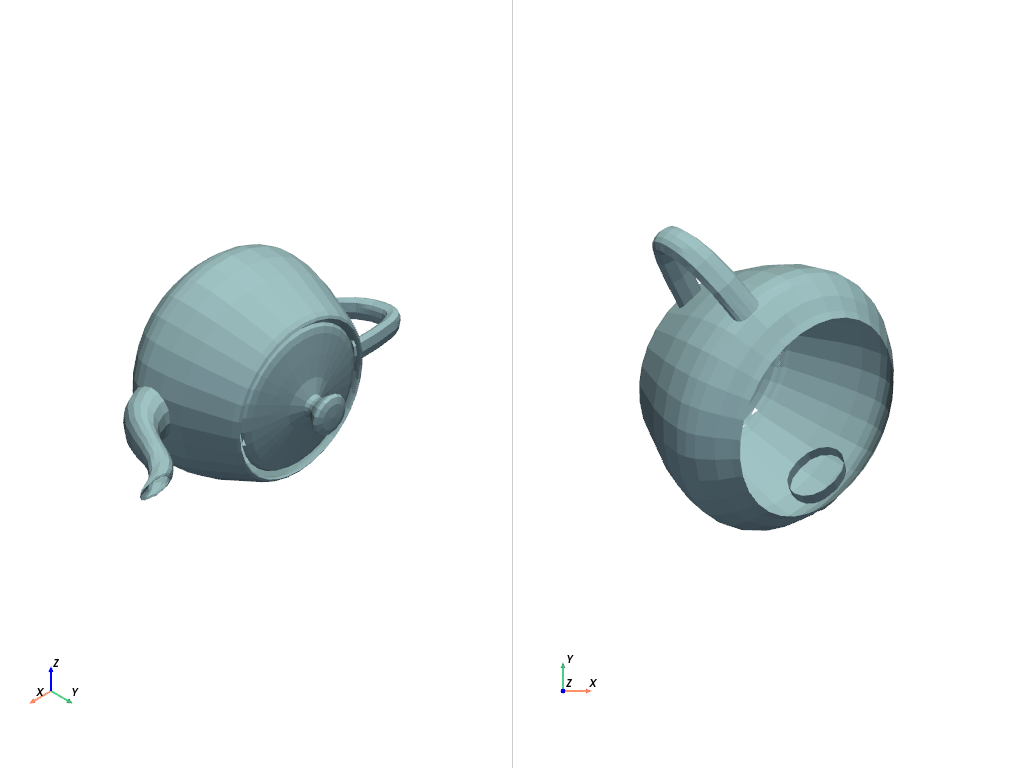

Static Scene

Interactive Scene

See Also

pyvista.Transform.reflect

Concatenate a reflection matrix with a transformation.
