DataObjectFilters.compute_cell_sizes

DataObjectFilters.compute_cell_sizes#

DataObjectFilters.compute_cell_sizes(
*,
length: bool = True,
area: bool = True,
volume: bool = True,
progress_bar: bool = False,
vertex_count: bool = False,
) → _DataSetOrMultiBlockType[source]#

Compute sizes for 0D (vertex count), 1D (length), 2D (area) and 3D (volume) cells.

Parameters:
lengthbool, default: True

Specify whether or not to compute the length of 1D cells. This generates a 'Length' cell data array.

areabool, default: True

Specify whether or not to compute the area of 2D cells. This generates an 'Area' cell data array.

volumebool, default: True

Specify whether or not to compute the volume of 3D cells. This generates a 'Volume' cell data array.

progress_barbool, default: False

Display a progress bar to indicate progress.

vertex_countbool, default: False

Specify whether or not to compute sizes for vertex and polyvertex cells (0D cells). The computed value is the number of points in the cell. This generates a 'VertexCount' cell data array.

Returns:
outputDataSet | MultiBlock

Dataset with cell_data containing the "VertexCount", "Length", "Area", and "Volume" arrays if set in the parameters. Return type matches input.

Notes#

If cells do not have a dimension (for example, the length of hexahedral cells), the corresponding array will be all zeros.

Examples#

Download Python source code | Download Jupyter notebook

Compute the face area of the example airplane mesh.

>>> from pyvista import examples
>>> surf = examples.load_airplane()
>>> surf = surf.compute_cell_sizes(length=False, volume=False)
>>> surf.plot(show_edges=True, scalars='Area')

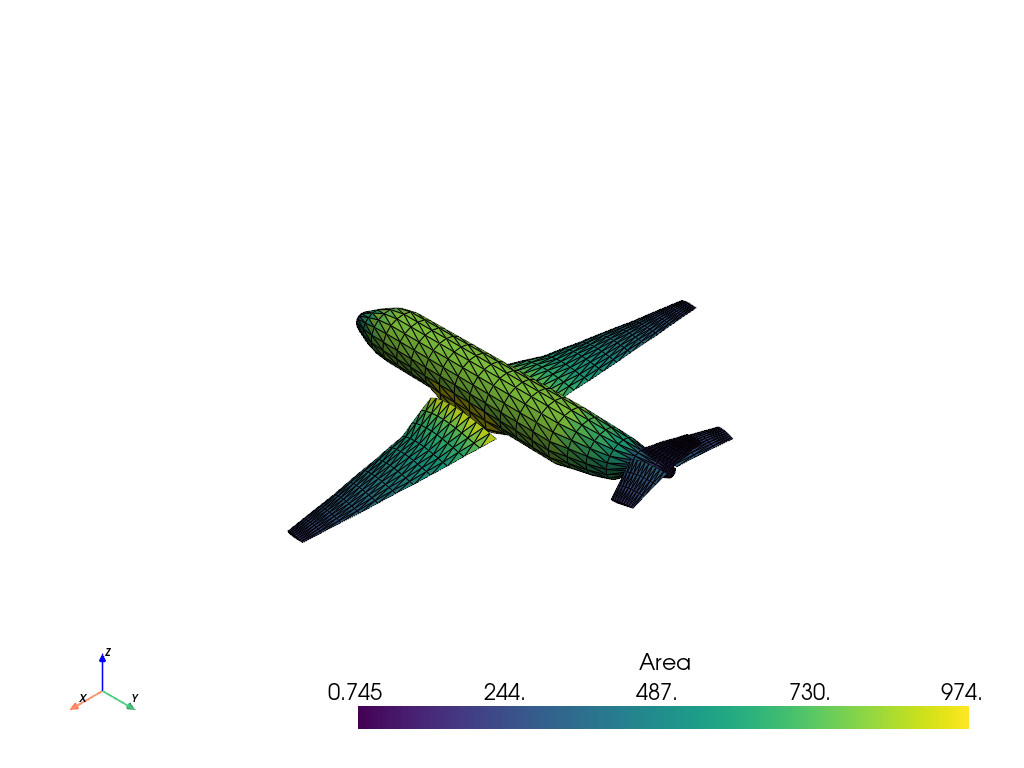

../../../_images/pyvista-DataObjectFilters-compute_cell_sizes-ff51675170ce32ff_00_00.png

Create a mesh with cells of various dimensions.

>>> mesh_0D = examples.cells.Vertex()
>>> mesh_1D = examples.cells.Line()
>>> mesh_2D = examples.cells.Quadrilateral()
>>> mesh_3D = examples.cells.Hexahedron()
>>> mesh = mesh_0D + mesh_1D + mesh_2D + mesh_3D

Compute all arrays and compare them.

>>> sizes = mesh.compute_cell_sizes(vertex_count=True)
>>> sizes['VertexCount']
pyvista_ndarray([1., 0., 0., 0.])

>>> sizes['Length']
pyvista_ndarray([0., 1., 0., 0.])

>>> sizes['Area']
pyvista_ndarray([0., 0., 1., 0.])

>>> sizes['Volume']
pyvista_ndarray([0., 0., 0., 1.])
